    AutoVicky ZHV-VH5010 Automatic Macro Vickers Hardness Tester 2

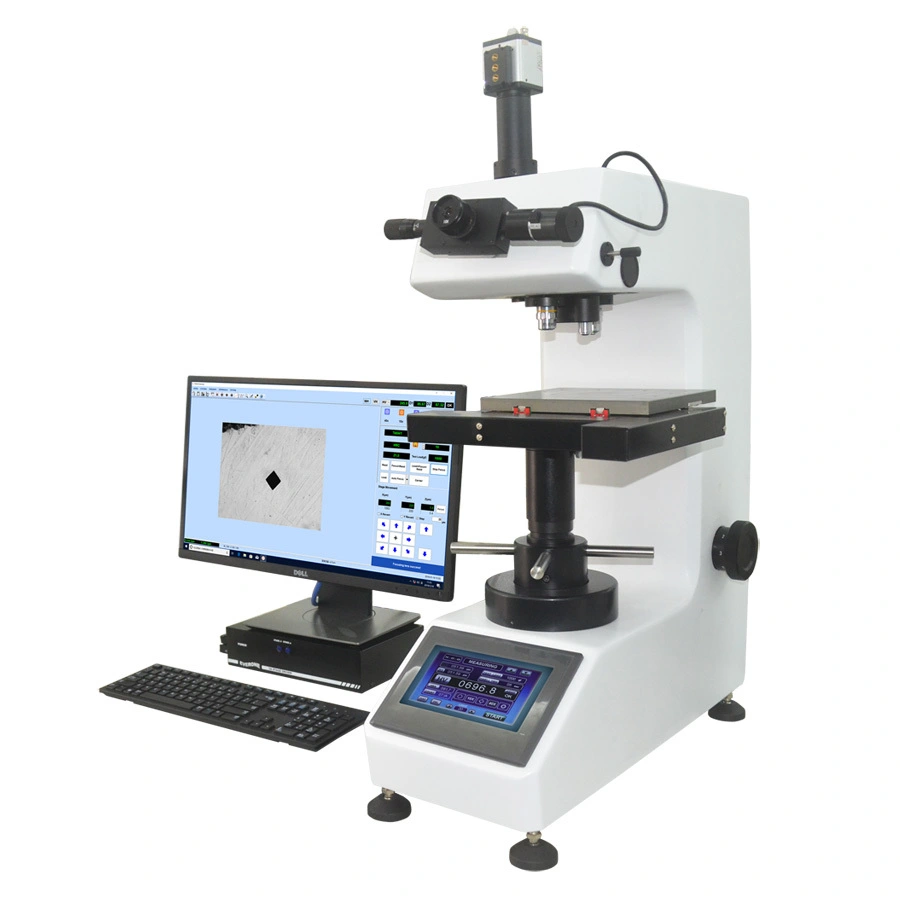

    Sinowon AutoVicky ZHV-VH5010 is Auto macro Vickers hardness tester with outfit of motorized X-Y auto-stage, it has auto-measurement about the indentation of Vickers, and it can make measurement of case depth automatically, it eliminates human operation error, largely improves working efficiency, makes Vickers hardness testing measurement more accurate and uncomplicated.



    Product Characteristics


    ◆ Auto-stage, Auto-Turret, Auto-measurement and Vickers testing system;

    ◆ Loading-force: Precise dead weights ensures the loading force system reliably and precisely;

    ◆ Optical-path: High-resolution optical microscopy path makes image of indention sharply and excellent;

    ◆ Auto-Turret: the switch position of Vickers indenters and 10x/20x objectives is repeatable and accurately;

    ◆ Auto-stage: it is driven by precise step motor with large travel size 100x100mm and heavy load ability ;

    ◆ Auto-Measurement: automatic hardness testing and measurement software:3A can control hardness tester and data communication, includes the switch of 10x, 20x objectives and Vickers indenter, auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate CHD depth and hardness curve, error statistics, test times group statistics, generate Excel and Word format report.


    Specification



    Commodity

    Automatic   Marco Vickers Hardness Tester

    Model

    AutoVicky   ZHV-VH5010

    Code#

    822-330A

    Focus-Mode

    Manual-focus

    Load-System

    High-precision-weight

    Test   Load

    Kgf

    1   /2/ 3 / 5 / 10 / 20 / 30/50

    N

    9.807   / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35

    Objective

    Standard

    10x  and 20x

    Option

    5x,   40X

    Loading-Mode

    Automatic   loading, dwell and unloading

    Dwell   Time

    5   ~ 99 s can be adjustable

    Turret   System

    Automatic

    160mm   Dual Optical

    Microscopy   System

    High-resolution   Optical Microscopy Path

    10x   digital measuring eyepiece

    20x   objective for Vickers measurement

    0.5x   C-mount with camera for dual vision measurement

    Magnification

    Optical   observation magnification : 100x ( 10x Objective and 10x Eyepiece )

    Optical   measurement magnification :200x ( 20x Objective and 10x Eyepiece )

    Digital   observation magnification: 350x

    Digital   measurement magnification: 700x

    Light   Source

    LED   parallel Illuminator

    Digital   Image System

    0.5x   C-adapter and 1.3Mpixel CMOS camera

    Max.   Specimen Height

    200mm

    Max.   Specimen Depth

    160mm

    Hardness   Scale

    HV1/HV2/HV3/HV5/HV10/HV20/HV30/HV50

    Auto-Stage

    Type

    Motorized

    Dimensions

    200   × 180 mm

    X-Y   Travel

    100   × 100 mm

    Motorized

    Step   motor

    Resolution

    0.5um

    Driving   Controller

    Vickycontrol2000

    Hardness   Testing Software

    3A:   Auto-stage; Auto-measurement

    PC   system

    DELL   OptiPlex3046MT

    LCD   monitor

    21.5”   Dell LCD Monitor

    Executive   Standard

    ASTM   E-92, ISO 6507, GB/T4340

    Dimensions

    W   226 × D 560 × H 660 mm

    Net.   Weight

    72Kg

    Power   Supply

    AC   220V/50Hz or 110V/60 Hz
