A professional manufacturer of measuring & testing equipment.

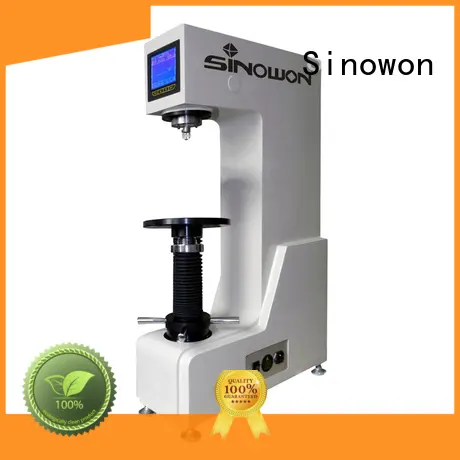

brinell hardness tester customized for soft alloys Sinowon 1
brinell hardness tester customized for soft alloys Sinowon 2
brinell hardness tester customized for soft alloys Sinowon 1
brinell hardness tester customized for soft alloys Sinowon 2

brinell hardness tester customized for soft alloys Sinowon

Model:
SHB-3000H
Code#:
831-152
Accuracy:
≤± 3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231
Certificate:
CE
Inquiry
Company Advantages
1. The design of Sinowon king brinell hardness tester is strictly conducted. It is carried out by our designers who think highly of parts and components safety, the whole machine safety, operation safety, and environmental safety. It, up to the requirements from different industries, is widely applied
2. The product is easy for people to control and only needs a little workforce. This will help lower operating costs. The Gost certificate has been obtained for the Russian market
3. Due to its king brinell hardness tester , brinell hardness tester has been widely used in many applications such as tele brinell hardness tester . The product is well used in many large engineering projects
4. brinell hardness tester firstly satisfy consumer demand for king brinell hardness tester . A quality control system is implemented for the product
5. brinell hardness tester has several advantages such as king brinell hardness tester . A team of experienced talents is gathered to support the product sales

brinell hardness tester customized for soft alloys Sinowon 3



Product Feature


 SHB-3000H Innovative closed-loop technology, via a closed-loop control unit with a load cell;

 SHB-3000H Fully automatic test cycle and loading application, greatly improves repeatability of test results;

 SHB-3000H Equipped with special Brinell indention measure system which can measure the Brinell indention accurately, quickly, reliably;

 SHB-3000H The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on LCD;

 SHB-3000H Indenter, loading, dwell time and other test information are showing clearly on LCD;

 SHB-3000H Test load selection is controlled by keyboard and LCD screen;

 SHB-3000H Whole weight of tester is 50% less than the traditional dead weights type tester.



Specification



Name

Digital Heigten Brinell Hardness Tester

Model

SHB-3000H

Code#

831-152

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range(8-450) HBS,(8-650) HBW
Hardness DisplayLCD Display
Output DataRS 232/Printer
Auto Hardness ConversionHR, HV, HK, etc
Magnification of Microscope

20x Digital Microscope

Max. Height Of Specimen

430mm

Instrument Throat

230mm

Dimension

893 x720 x922mm

Gross/Net Weight

170Kg/140Kg

Power Supply

AC220V/50Hz;110V/60Hz

Conform Standard

ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%





Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is renowned for its R&D and manufacture capability. From technicians to production equipment, Sinowon has a complete set of production processes.
2. Sinowon absorbs sophisticated manufacturing technology brinell hardness tester.
3. By innovating technology and optimizing service structure, Sinowon can provide customers with one-stop solutions. Sinowon Innovation Metrology Manufacture Limited. would like to make friends with our customers and bring more benefits for them. Contact!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
