durometer Automatic vision measuring machine testing friendly operation Sinowon company
- Sinowon has a core R&D team composed of senior technical talents with strong professional capabilities, which provides a strong guarantee for product development.
- Sinowon runs a comprehensive supply system and after-sales service system. We are committed to providing excellent service for the majority of customers.
- In the future, Sinowon will continue to focus on quality and customers while pursuing excellence and building a good business reputation. We are committed to providing quality products and services for customers. We do that by taking customers as the center, by taking talents as the basis, by taking technology as the guarantee and taking quality as the soul.
- Founded in 2006, Sinowon has always been insisting on the brand development for years. Now we become a leader in the industry with relatively high brand recognition.
- Sinowon continuously develops ourselves in the fierce competition based on the advantages of technology and talents. This enables us to expand the sales network, from the domestic market to neighboring countries and regions.
1. The mature production process of Sinowon ultrasonic portable hardness tester makes it more valuable. It is up to both domestic and international standards
2. The benefits of Automatic vision measuring machine will be seen in ultrasonic contact impedance hardness testing. Imported materials and accessories are used in product manufacturing
3. A team of experienced talents is gathered to support the product sales. we are looking forward to becoming your trusted supplier in the near future, with rich experience in manufacturing portable hardness tester price, Sinowon has attached great importance to innovation, for more detailed information, please contact us.
1. Brief Introduction

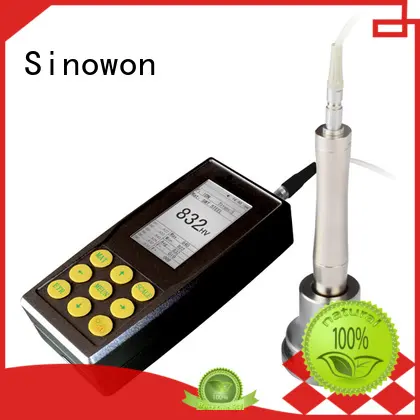

SVR-110 is a special manual portable durometer with manual probe HP-1K by Sinowon group. It applies method of ultrasonic contact independence to make hardness testing at the spot
SVR-110 is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution to test hardness of finished products, such as, the mold, gear, shaft, rod, screw, rails, etc.
SVR-110 conforms the standard ASTM A1038-2005, DIN standard DIN50159-1-2008 and China National standard GB/T 34205-2017.
2. Product Features:
2.1High Accuracy
HV: ±3% HV，HR:±1.5HR, Conform internal standard ASTM A1038, DIN50159
2.2Microscopic Indentation
The indention size of SVR-110 is same with HV1 of micro hardness testing in one specimen, it is too small to observe by eyes, it is a non-destructive method for the specimen.
2.3Qucik Measurement
In 2 seconds to get hardness value, working efficiency is 60 times higher than normal bench hardness testers.
3. Technical Specification
Product Name | Portable UCI Durometer |
Model | SVR-110H |
Code# | 882-110 |
Testing force | Manual 10N |
Hardness Range | HV 80-1599; HRC 20-70; |
Accuracy | ±3% HV; HR:±1.5HR |
Measuring Scales | HV/HRC |
Language | English, Chinese |
Data Output | RS232 |
Data Saving | 20-group calibration data, 1000-group measurement data |
Working Conditions | Temp: -10℃~50℃; Humidity: 30%~80% |
Power Supply | Rechargeable lithium battery，battery 4.2V,4800mAh |
Rechargeable Voltage | AC220V/50Hz, 110V/60Hz |
4. Standard delivery
Accessories | Code # | Accessories | Code # |
SVR-110 Main unit | 882-110H | 10N manual probe | 882-241 |
Rockwell test block | 882-641 | Probe cable | 882-801 |
USB Recharger | 882-851 | USB cable | 852-810 |
Carrying case | 882-901 | Carrying case | 882-901 |
Operation manual | SVR-110H | Warranty card | SVR-110H |
Quality certificate | SVR-110H | Packing list | SVR-110H |
Company Features
1. It is widely known that Sinowon is specialized in Automatic vision measuring machine industry.
2. Sinowon Innovation Metrology Manufacture Limited. has complete test measures and high-qualified employees.
3. Sinowon Innovation Metrology Manufacture Limited. adheres to the development strategy of ultrasonic portable hardness tester in its business. Please contact us!
