High Accuracy Brinell Optic Measurement System QB-500
Model:
QB-500
Code#:
838-390
Warranty:
12 month
Delivery Time:
15-30days
Standard:
GB/T4340, ISO6506/6507，ASTM E10-12/E92 JIS Z2243
Certificate:
CE
Product Details
Sinowon's hardness testing machines is processed based on the latest technology. It has excellent performances in the following details.Sinowon carries out strict quality monitoring and cost control on each production link of hardness testing machines, from raw material purchase, production and processing and finished product delivery to packaging and transportation. This effectively ensures the product has better quality and more favorable price than other products in the industry.
1. The production of Sinowon brinell hardness tester for sale is standardized and highly efficient.
2. brinell hardness tester can be used for brinell hardness tester for sale .
3. brinell hardness tester from Sinowon Innovation Metrology Manufacture Limited. has strong competitiveness and high economic efficiency.
4. This product perfectly meets the actual requirements of customers and has great market potential.
Introduction

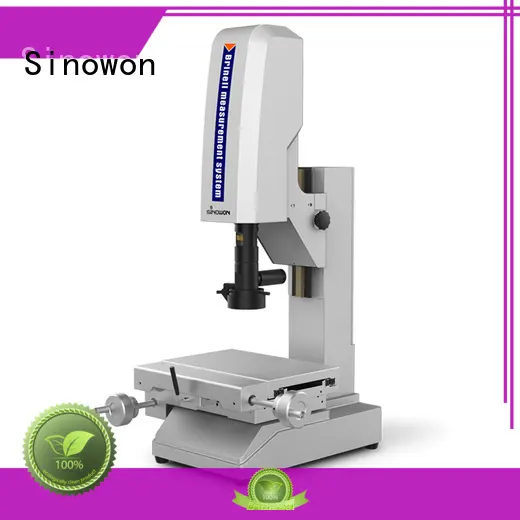

QB-500 high accuracy Brinell optic measurement system mainly used to test accuracy of hardness block for manufacturer and verification lab, also available for specimens Brinell indentation measurement.
Features
◆ Apply telecentric zoom lens, can measurement Brinell indentation accurately on mirror surface and rough surface.
◆ High accuracy microscope stage with travel 100 x 50mm, supportt specimen weight at max 15Kg.
◆ Non-touch optical measurement, with laser navigation, easily to find indentation.
◆ By BrinScan V2.0 software, realize auto measurement.
Specification
| Name | High accuracy Brinell optic measurement system | |
| Model | QB-500 | |
| Code# | 838-390 | |
| Hardness Resolution | 0.01HB | |
| Repeatability | ±1HB | |
| Specimen Weight | 15Kg | |
| Stage Travel | 100X50mm | |
| Z Axis Travel | 50mm | |
| Z Axis Guiding | Dovetail groove and manual driven | |
| Illumination | Adjustable LED cold light source, coaxial light source | |
| Software | Brinscan V2.0 | |
| Operation OS | Win8、Win10，32/64bit；Office | |
| Working Environment | Temperature 20℃±1℃， Humidity 30~80% | |
| Voltage | 220V/50HZ | |
| Weight | 20Kg | |
| Dimension | 440x410x700mm | |
