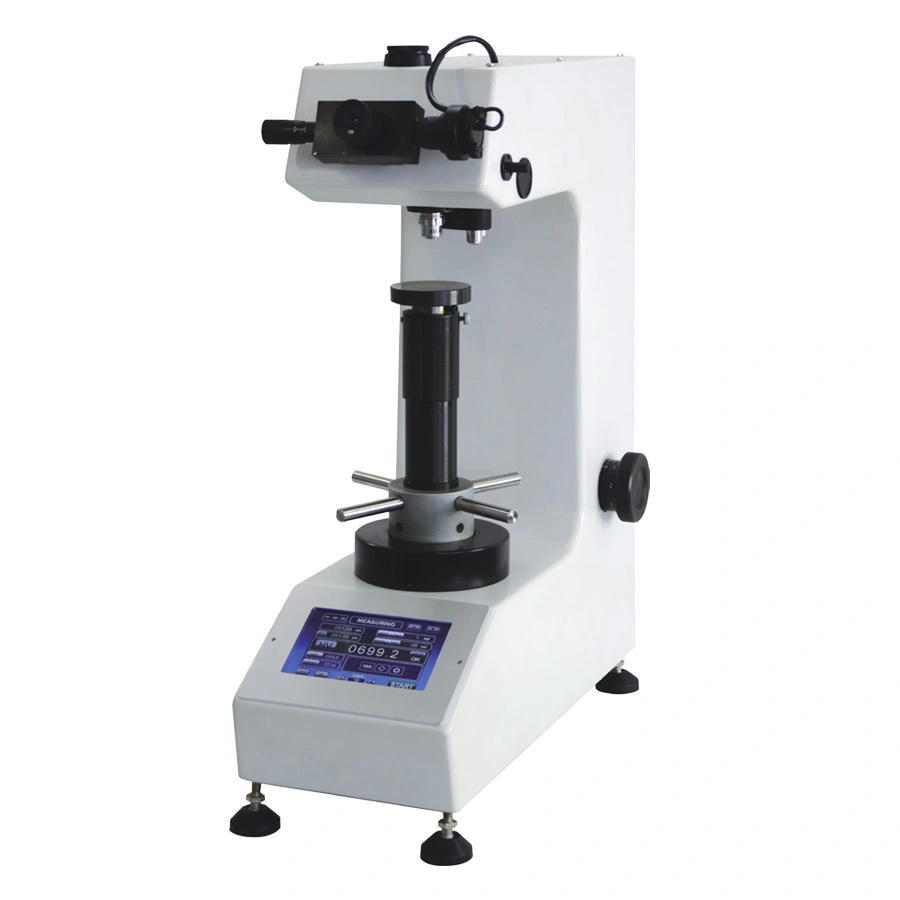

MacroVicky VH1002/VH3003/VH5010 Digital Vickers Hardness Tester 1
MacroVicky VH1002/VH3003/VH5010 Digital Vickers Hardness Tester 1

MacroVicky VH1002/VH3003/VH5010 Digital Vickers Hardness Tester

    oops...!

    no product data.

    Go to homepage

    MacroVicky VH1002/VH3003/VH5010 Digital Vickers Hardness Tester 2



    Product Characteristics


    ◆ Vickers hardness tester with colour touch screen;

    ◆ 8 inches colour touch screen, high resolution, easy to operate;

    ◆ Strong and stable body;

    ◆ LED illumination, light, adjustable, long life and no heat;

    ◆ Data storage for review and printing;

    ◆ Rotatable turret with five working positions;

    ◆ 250 lines encode with more precise measurement;

    ◆ Conversion between different scales;

    ◆ Can be developed to semi-automatically system.



    Product Application


    Vickers method is based on an optical measurement system, it specifies a range of light loads using a diamond indenter to make an indentation which is measured and converted to a hardness value. It is very useful for testing on a wide type of materials, but test samples must be polished to enable measuring the size of the impressions. A square base pyramid shaped diamond is used for testing in the Vickers scale. Typically loads are very light, ranging from 10gm to 1kgf, although "Macro" Vickers loads can range up to 50 kg or more.

    Micro Vickers and Knoop hardness methods are used to test on metals, ceramics, and composites - almost any type of material. Since the test indentation is very small in a Vickers test, it is useful for a variety of applications: testing very thin materials like foils or measuring the surface of a part, small parts or small areas, measuring individual microstructures, or measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.



    Specification


    Model

    MacroVicky   VH1002

    MacroVicky   VH3003

    MacroVicky   VH5010

    Code#

    821-118

    821-128

    821-138

    Test   Load

    Kgf

    0.2 / 0.3 / 0.5 / 1   / 2 / 3 / 5 / 10

    0.3 / 0.5 / 1 / 3 /   5 / 10 / 20 / 30

    1 / 2 / 3 / 5 / 10   / 20 / 30 / 50

    Nf

    1.961 / 2.942 /   4.903 / 9.807 / 19.614 / 29.42 / 49.035 / 98.07

    9.807 / 19.614 /   29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35

    9.807 / 19.614 /   29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35

    Loading Mechanism

    Automatic loading   and releasing method 50~100 µm/s

    Dwell Time

    5 ~ 99 s

    Turret Mechanism

    Automatic

    Diamond Indenter

    VICKERS INDENTER   (FOR HV)

    Objective

    Normal

    10X , 40X

    10 X , 20X

    10X , 20X

    Option

    40x, 20x, 5X

    Measuring   Microscope Eyepiece

    Electronic Type 10X

    Max. Measuring   length

    900 µm  ( In case of 100x )    230 µm    ( In case of 400x )

    Mix. Measuring unit

    0.1µm (0.01µm for   CTS type)

    Max.   Specimen Height

    200mm

    Max. Specimen Depth

    160mm

    Measuring Hardness   Scale

    HV, HK

    X-Y Stage

    Type

    Manual

    Dimensions

    200 × 180 mm

    Max. movement

    100 × 100 mm

    Min. micro   graduation

    1/100 mm

    LCD-Touch Operation   Panel

    Load start / set up   zero / dwell time / light adjustment / transformation scale turret location /   data processing ( browse / delete / print )System settings( test conditions /   language/Communications/factorysettings )

    Numerical Display

    D1 value / D2 value   / HV-HK Instructions / hardness value /conversion value / load value / dwell   time / test times / turret location

    Print Output

    Measured data and   statistic data ( Max. Value / Min. value / Mean value / Range / Standard   deviation )

    Light Source

    LED Illuminator

    Accuracy

    Conform to : JIS B   -7735, ASTM E-384 and ISO 6507-2

    Photographic Device

    Capable to mount   photographic device ( Option)

    Dimensions

    W 226 × D 560 × H   660 mm

    Weight

    72KG

    Power Supply

    Single phase AC 220   V 50/60 Hz
