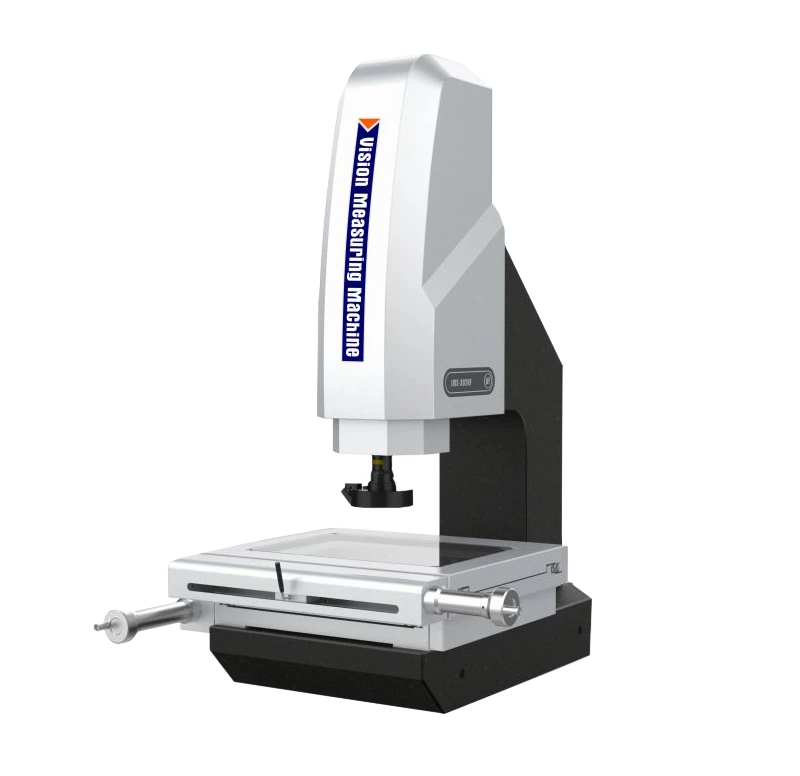

Manual Vision Measuring Machine M5-IMS-3020 Series

Model:

M5-IMS-3020 Series

Code#:

521-120G

Accuracy:

XY axis: ≤2.5+L/200(um) Z axis: ≤4.0+L/200(um)

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Manual Vision Measuring Machine M5-IMS-3020 Series 2

Sinowon M5-IMS-3020 is multisensor vision coordinate measuring machine, it not only can measure the linear size, such as: point, line, cycle, arc, angle, rectangular hole, but also can measure the geometrical size, such as: straightness, flatness, circularity, cylindricity, perpendicularity, parallelism, angularity, concentricity, symmetry, position, profile, surface In the workshop and laboratory, most of measurement job can be done by multisensor measuring machine, it is widely applied to measure the dimension of Hardware, Mold, Machining, Precision Manufacturing, Automotive Parts, Stampings, Aerospace Components, Plastic & Rubber Products, Mobile Phone Industry, PCB Boards, Electronic Components, Semiconductor Components, Flat Glass (Touch Panels & LCD Panels), Medical Devices , tools and other fields, etc.

Product Characteristics

Adopt high-precision granite base and column to ensure the stability and precision of the machine;
Adopt high-precision toothless polished rod and fast-moving locking device to ensure that the return error of the table is within 2um;
Adopt high-precision instrument optical ruler and precision worktable to ensure the accuracy of the machine is within ≤2.5+L/200um;
Adopt high-definition zoom lens and high-resolution color digital camera to ensure clear picture quality without distortion;
Using the program-controlled surface 4-ring 8-area LED cold illumination and Contour LED Parallel llumination as well as a built-in intelligent light adjustment module, the area brightness of the light in the 4-ring 8-area can be freely controlled;
iMeasuring Vision measurement software improves quality control to a new level;
Optional contact probe and three-dimensional measurement software can be used to upgrade the machine to a contact three-dimensional measuring machine;
It can be upgraded to install an autofocus function module to achieve accurate semi-automatic measurement.

Technical Specification

Commodity		High Precision Manual VIsion Measuring Machine M5-IMS Series
Model		M5-IM5-2010	M5-IMS-2515	M5-IMS-3020	M5-IMS-4030	M5-IMS-5040
Marble Workbench		(270*350)mm	(408*308)mm	(458*358)mm	(608*470)mm	(650*580)mm
Glass Workbench		(142*242)mm	(306*198)mm	(356*248)mm	(456*348)mm	(540*440)mm
X/Y axis Travel		(200*100)mm	(250*150)mm	(300*200)mm	(400*300)mm	(500*400)mm
Z axis travel		High-precision linear guide, effective travel 200mm
X/Y/Z aixs resolution		0.5um
Pedestal and Uprights		High Precision Granite
Measurement Accuracy*	E1x,y	2.5+L/200(um)
	E1xy	3+L/200(um)
	E1z	4+L/200(um)
Repart Accuracy		2um
Illumination System(Software Adjustment)		Surface 4 rings and 8 zones infinitely adjustable LED cold Illumination
		Contour LED Parallel Illumination
		Optional Coaxial Light
Digital Camera		1/2.9"/1.6Mpixel High Resolution Digital Camera
Zoom Lens		6.5X High-Resolution Electronic feedback zoom lens，Optical Magnification: 0.7X~4.5X ; Video Magnification: 20X~129X
Measuring Software		iMeasuring
Operation System		Support WIN 10/11-32/64 Operating System
Language		English, Simplified Chinese, Traditional Chinese, Optional other language versions
Working Environment		Temperature 20℃±2℃, temperature change <1℃/Hr; Humidity 30%~80%RH; Vibration <0.02g's, ≤15Hz.
Power Supply		AC220V/50Hz; 110V/60Hz
Dimension(WxDxH)		(677552998)mm	(7906171000)mm	(8386671000)mm	(10028171043)mm	(11118671086)mm
Packaging Dimension (WxDxH)		(10307801260)mm	(10307801260)mm	(10307801260)mm	(113010001270)mm	(125010351460)mm
Gross/Net Weight		220/150Kg	242/175Kg	275/185Kg	449/350Kg	550/380Kg

Note：

"L" represents the measured length in millimeters, and the mechanical accuracy of the Z-axis is highly dependent on the focusing accuracy and the surface of the workpiece.

The magnification is an approximate value and is closely related to the size and resolution of the display.

Customers can choose to add a 0.5X or 2X auxiliary lens according to their needs to achieve image magnification.

M5-iMS-2010/4030/5040 are workbenches made of marble, while M5-iMS-2515/3020 are workbenches made of metal.

Product Configuration Model Description (Example with M5-IMS-3020):

Sensor Configuration	2.5D	3D	2.5D	3D
Commodity	2.5D Vision Measuring Machine	3D Contact & Vision Measuring Machine	2.5D Semiautomatic Vision Measuring Machine	3D Semiautomatic Contact & Vision Measuring Machine
Model	M5-IMS-3020A	M5-IMS-3020B	M6-IMS-3020C	M6-IMS-3020D
Type	A	B	C	D
Significance	Optical Zoom-lens Sensor	Zoom-lens Sensor and Contact Probe Sensor	Zoom-lens Sensor and Z- axis Autofocus Function	Zoom-lens Sensor, Contact Probe Sensor and Autofocus Function
Z-axis Auto-focus	Without	Without	With	With
Contact Probe	Without	With	Without	With
Software	iMeasuring2.1	iMeasuring3.1	iMeasuring2.2	iMeasuring3.2

Manual Vision Measuring Machine Models and Specifications：

Model	Code#	Model	Code#	Model	Code#	Model	Code#	Model	Code#
M5-IMS-2010A	521-120E	M5-IMS-2515A	521-120F	M5-IMS-3020A	521-120G	M5-IMS-4030A	521-120H	M5-IMS-5040A	521-120J
M5-IMS-2010B	521-220E	M5-IMS-2515B	521-220F	M5-IMS-3020B	521-220G	M5-IMS-4030B	521-220H	M5-IMS-5040B	521-220J
M6-IMS-2010C	521-320E	M6-IMS-2515C	521-320F	M6-IMS-3020C	521-320G	M6-IMS-4030C	521-320H	M6-IMS-5040C	521-320J
M6-IMS-2010D	521-420E	M6-IMS-2515D	521-420F	M6-IMS-3020D	521-420G	M6-IMS-4030D	521-420H	M6-IMS-5040D	521-420J

Configuration List

Manual Vision Measuring Machine M5-IMS-3020 Series 3

Manual Vision Measuring Machine Travel Guide Table:

Travel mm	Model	X Axis Travel mm	Y Axis Travel mm	Z Axis Standard Travel mm	Z Axis Maximum Customized Travel mm
200x100x200	M5-IMS-2010	200	100	200	300
250x150x200	M5-IMS-2515	250	150	200	300
300x200x200	M5-IMS-3020	300	200	200	400
400x300x200	M5-IMS-4030	400	300	200	400
500x400x200	M5-IMS-5040	500	400	200	400

Other travel specifications can be customized according to customer needs
