portable brinell hardness unit directly sale for soft alloys

Company Advantages
1. Sinowon brinell hardness unit has to go through the necessary tests. These tests mainly aim for safety, stability, strength, durability, resistance to abrasion, impacts, scrapes, scratches, heat, chemicals, etc. It is well recognized by more than 5000 customers
2. The product is popular among the customers with high cost performance and takes a large market share. The product performs well in program control and material use reduction
3. brinell hardness unit is widely used as it has the property of long service life and brinell hardness test unit . Its packing is made seriously to guarantee the safety during shipment

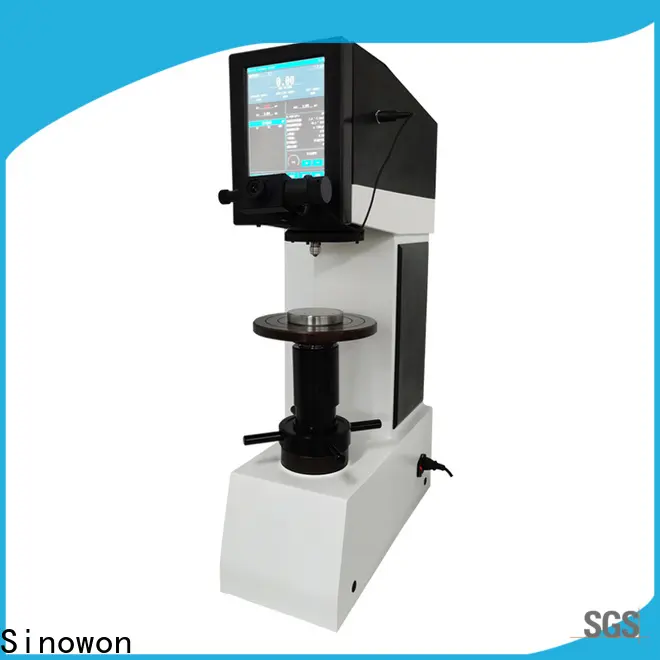

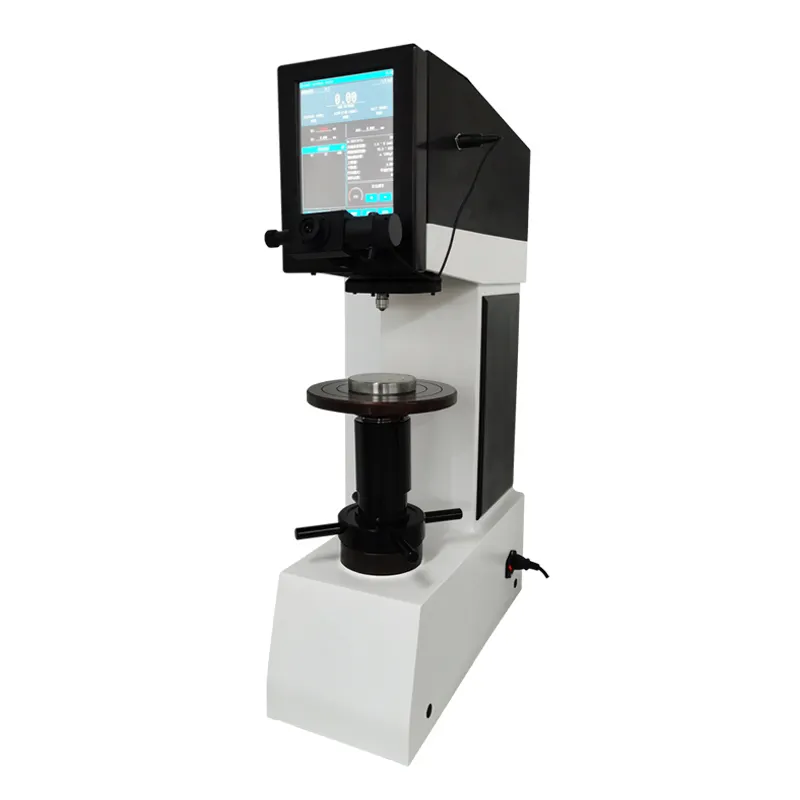

The Vexus SHB-3000N is a mechanical and electrical integration product of precise mechanical structure and microcomputer controlled closed-loop system.Loading and unloading test force electrically instead of using the weight. The test force is fed back by a 0.5 ‰ precision pressure sensor. The CPU can control and automatically compensate the test force lost during the test. The indentation can be directly measured on the instrument through a micrometer eyepiece.The test force, indentation length, load holding time, measurement times, conversion scale, date and time can be displayed more intuitively on the large screen. Only measuring the indentation and pressing the eyepiece button,then the hardness value can be calculated automatically and displayed on the screen. The data results can be saved and viewed, or output through a built-in printer.

◆Test range is wider because it has ten levels of test force and can test ten kinds of Brinell scale.

◆The structure is stable because the shell is formed by one-time molding and casting with special sand turning process.

◆The accuracy is high and performance is stable because of the closed-loop sensor with microcomputer control system.

◆Test is accurate because it loads and unloads test force electrically and the CPU can control and automatically compensate the test force lost.

◆ The noise produced during the test is very small, which is suitable for various laboratories.

◆The working efficiency is greatly improved because of using Brinell image measurement system.

It is not only suitable for hardness measurement of cast iron, steel, non-ferrous metal and soft alloy, but also can be used to determine the hardness of some non-metallic materials such as hard plastics and bakelite.

Product Name		Touch Screen Digital Brinell Hardness Tester
Model		Vexus SHB-3000N
Code#		831-143
Loading Force	N	612.9, 980.7, 1226, 1839, 2452, 4903, 7355, 9807, 14710, 29420
	kgf	62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000
Dwell Time		0~60s
Measuring Range		(8~650) HBW
Hardness Display		LCD Display，Printable output，internal printer
Brinell Ruler		HBW2.5/62.5  HBW10/100 HBW2.5/187.5  HBW5/125  HBW10/250   HBW10/500   HBW5/750  HBW10/1000  HBW10/1500  HBW10/3000
Magnification of Eyepiece		20X
Max.height of Specimen		200mm
Distance from intender to body		135mm
Min Measuring Unit		0.625µm
Power supply		AC220+5%,50~60Hz
Dimension		550x210x750mm
Gross/Net Weight		160kg/130kg
Executive Standard		GB/T4340、JIS Z2245、ASTM—E92、ISO6507

Company Features
1. Over the years, Sinowon Innovation Metrology Manufacture Limited. has provided quality brinell hardness test unit for clients. We are a company known for our strong capability in manufacturing and selling.
2. brinell hardness unit becomes more competitive in this industry thanks to the effort of skilled technicians.
3. Entering the high-end digital brinell hardness tester market, Sinowon has always followed international standards to produce brinell hardness number . Contact!
