A professional manufacturer of measuring & testing equipment.

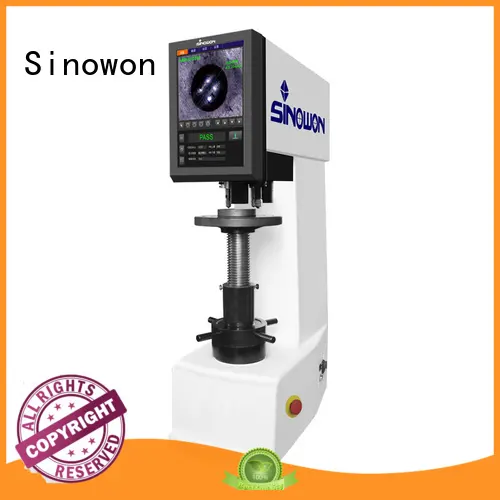

Quality Sinowon Brand measuring brinell hardness test 1

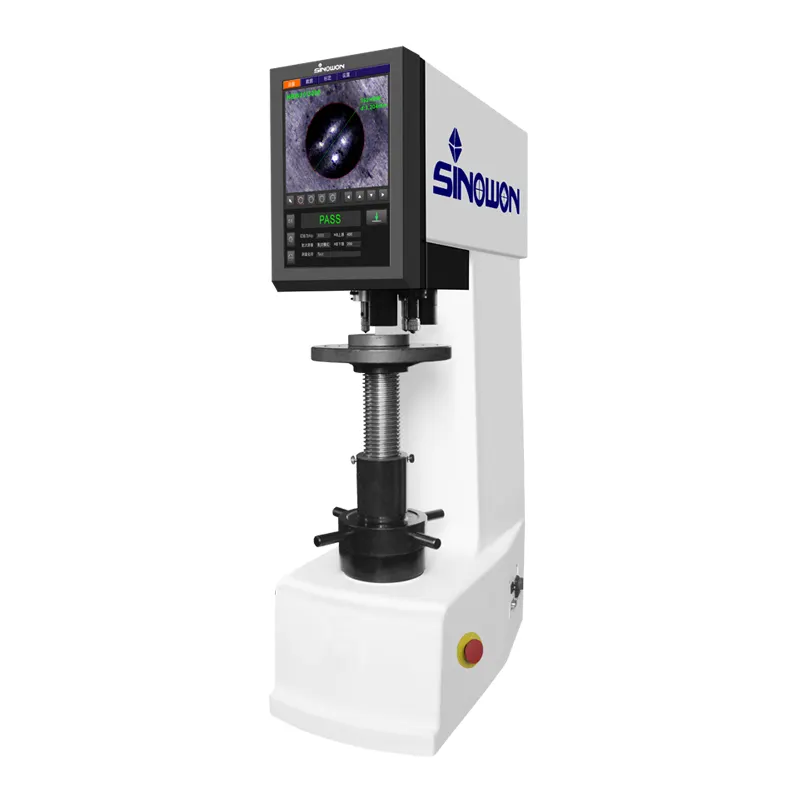

Quality Sinowon Brand measuring brinell hardness test 2
Quality Sinowon Brand measuring brinell hardness test 1
Quality Sinowon Brand measuring brinell hardness test 2

Quality Sinowon Brand measuring brinell hardness test

Model:
AutoBrin-3000Z
Code#:
831-170
Accuracy:
≤± 3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243
Certificate:
CE
Inquiry
Company Advantages
1. It is supported by multiple languages say English, Turkish, and German. The factory's application of brinell hardness test products not only have aesthetic appearance also are very reliable.
2. Sinowon Innovation Metrology Manufacture Limited. has a large-scale standardized brinell hardness test production base covering an area of thousands of square meters. A quality control system is implemented for the product
3. Sinowon Innovation Metrology Manufacture Limited. ensures that there is no compromise in any part of the brinell hardness; be it brinell hardness machine or king brinell hardness tester. The product can be controlled in a motorized way, to eliminate errors caused by manual operation.
Quality Sinowon Brand measuring brinell hardness test 3
Name

Auto Digital Touch Vision Brinell Hardness Tester

Model

AutoBrin-3000Z

Code#

831-170

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Hardness Resolution0.1HBW
Brinell Range

(8-650) HBW

Indentation MeasurementAutomatically
Objective

1x And 2x

Software

Win 10 OS, MS Office

Brinell Measurement Software

BrinScan V3.0

Vertical Space

250mm

Horizontal Space

150mm

Dimension

622x313x992mm

Gross/Net Weight

200Kg/170Kg

Power Supply

AC 220V/110V±5%,50~60 Hz

Conform Standard

GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12  JIS Z2243

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%

Company Features
1. With time changing, Sinowon Innovation Metrology Manufacture Limited. has been grown into a mature supplier that specializes in producing brinell hardness test. - Sinowon Innovation Metrology Manufacture Limited. has built a set of strict quality system to ensure quality of brinell hardness.
2. Sinowon Innovation Metrology Manufacture Limited. made big progress in brinell hardness number development thanks to its professional R&D base.
3. Sinowon Innovation Metrology Manufacture Limited. endorses strict quality standards for its products. - Sinowon Innovation Metrology Manufacture Limited. is available 24/7 to respond. We treat events that directly impact customers with the highest priority. Inquire online!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
