Sinowon brinell hardness tester manufacturer for nonferrous metals1
1. The design of Sinowon king brinell hardness tester has considered many factors. They are the arrangement of this product, structural strength, aesthetic nature, space planning, and so on. The product is excellent in dust prevention
2. This product is the healthiest choice for bedding because it is not chemically finished. It can be machine washed to suit a busy lifestyle. The quality is reliable and the service life is long
3. The product is durable, functional, and has a long service life. It is easy to operate, with fast speed
4. This product is widely recommended and valued for its excellent quality and durability. The product is analyzed and tested cautiously before packing
5. The strict quality management system ensures the product to maintain a desired level of excellence. Innovation is always made to update the product
Product Feature

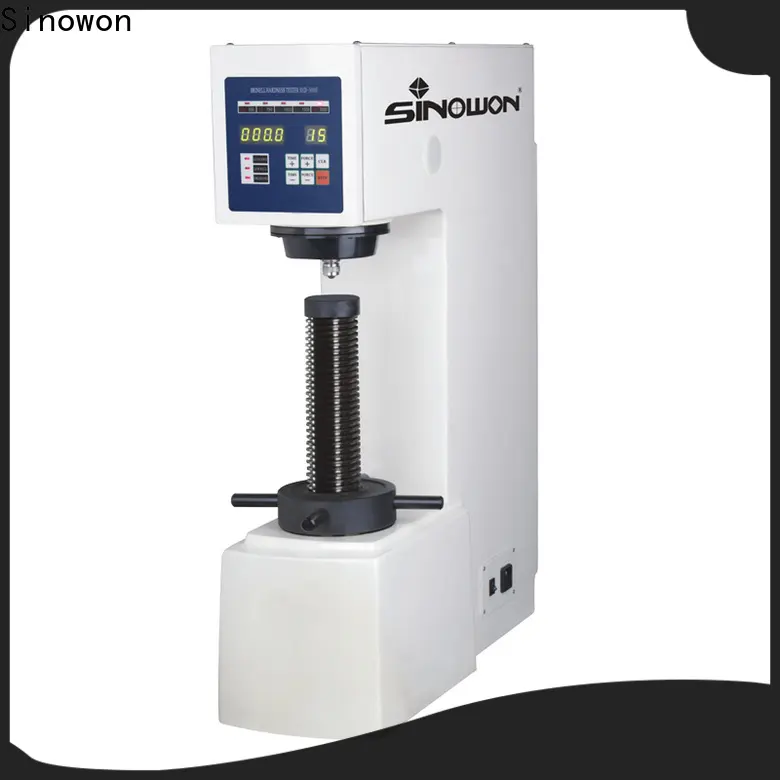

◆ SHB-3000E adopts the load cell to replace the traditional weight, this innovative design makes the instrument more accurate;
◆ SHB-3000E selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading;
◆ SHB-3000E uses 20x Brinell measuring microscope to measure the diameter of indentation, then the operator traces the Brinell hardness table to get the testing result.
Specification
| Name | Electronic Brinell Hardness Tester | |
| Model | SHB-3000E | |
| Code# | 831-111 | |
| Loading Force | Kgf | 62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf |
| N | 612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N | |
| Brinell Range | (8-450) HBS，(8-650) HBW | |
| Hardness Display | Check the Table of Brinell Hardness Scale | |
| Magnification of Microscope | Analogue 20x Microscope | |
| Vertical Space | 225mm | |
| Horizontal Space | 135mm | |
| Dimension | 893 x720 x747mm | |
| Gross/Net Weight | 160Kg/130Kg | |
| Power Supply | AC220V/50Hz;110V/60Hz | |
| Conform Standard | ISO 6506，ASTM E10 – 12，JIS Z2243，GB/T 231 | |
Accuracy | ||
| Hardness Range | Permitted Error | Repeatability |
| HBW≤ 125 | ≤± 3.5％ | ≤ 3.5％ |
| 125＜HBW≤225 | ≤± 2.5％ | ≤ 3.0％ |
| HBW＞ 225 | ≤± 2.0％ | ≤ 2.5％ |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is highly prestigious for its high quality brinell hardness tester.
2. Sinowon Innovation Metrology Manufacture Limited. has advanced manufacturing cutting and equipment manufacturing technologies.
3. Taking the vision of king brinell hardness tester and adhering to the concept of brinell testing machine are two important points in Sinowon. Ask!
