Sinowon quality brinell hardness tester from China for cast iron
-
v s
1. Sinowon brinell hardness test unit goes through careful and sincere planning. Its design comprises of an ideal blend of art, aesthetics, creativity, and so forth.
2. This product is thoroughly checked by the team of quality experts to refuse flaws.
3. Our dedicated and skilled quality controllers carefully inspect the product at every step of production in order to ensure that its quality remains exceptional without any defect.
4. Sinowon Innovation Metrology Manufacture Limited. believes it can bring new capabilities to the world.
Product Feature
◆ Equips with OS Win10, and already installed BrinScan V3.0 Auto Brinell Measurement software.
◆ Apply vision measurement technology, one key operation, realize auto loading, dwell, unloading and indentation measurement.
◆ AutoBrin AB-3000Z can display data statistics, hardness conversion, limitation setting, graph, measurement mode setting, etc.
◆ Loading by high accuracy force sensor , and can compensate force loss during loading by micro central processing unit.
◆ Loading control by load cell with accuracy at 0.5‰, microchip can make force compensation automatically lost during loading.
Application
Because of Brinell method apply big loading force and generate big indentation, it is suitable to test hardness of hard alloy, cemented steel, hardened steel, case-hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, soft steel, hardened and tempered steel, annealed steel, ball bearing steels.
Specification

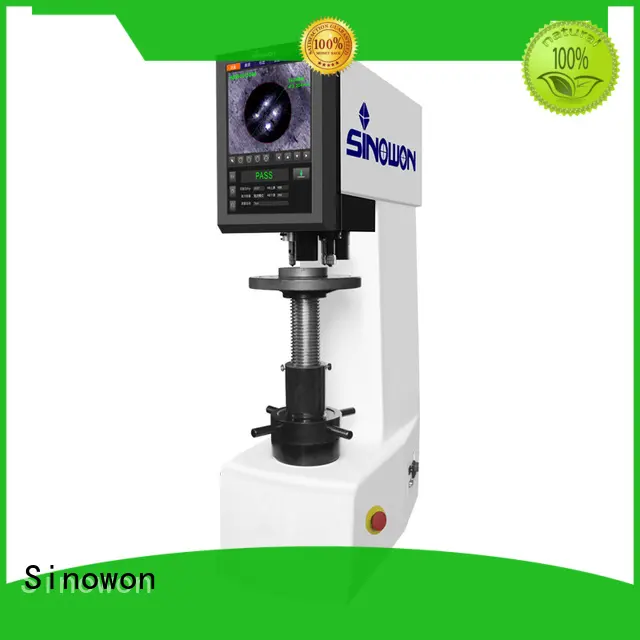

| Name | Auto Digital Touch Vision Brinell Hardness Tester | |
| Model | AutoBrin-3000Z | |
| Code# | 831-170 | |
| Loading Force | Kgf | 62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf |
| N | 612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N | |
| Hardness Resolution | 0.1HBW | |
| Brinell Range | (8-650) HBW | |
| Indentation Measurement | Automatically | |
| Objective | 1x And 2x | |
| Software | Win 10 OS, MS Office | |
| Brinell Measurement Software | BrinScan V3.0 | |
| Vertical Space | 250mm | |
| Horizontal Space | 150mm | |
| Dimension | 622x313x992mm | |
| Gross/Net Weight | 200Kg/170Kg | |
| Power Supply | AC 220V/110V±5%，50~60 Hz | |
| Conform Standard | GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243 | |
Accuracy | ||
| Hardness Range | Permitted Error | Repeatability |
| HBW≤ 125 | ≤± 3.5％ | ≤ 3.5％ |
| 125＜HBW≤225 | ≤± 2.5％ | ≤ 3.0％ |
| HBW＞ 225 | ≤± 2.0％ | ≤ 2.5％ |
Company Features
1. As a rapidly growing enterprise, Sinowon Innovation Metrology Manufacture Limited. continuously expanding its overseas markets in recent years. Our quality brinell hardness test unit enjoys more and more popularity in domestic and overseas markets.
2. Sinowon Innovation Metrology Manufacture Limited. is confident enough to produce qualified brinell hardness tester.
3. Our high quality brinell hardness test experiment will just meet customer's different requirements. Get more info! Sinowon's commitment is to produce brinell hardness test with high quality. Get more info! Sinowon Innovation Metrology Manufacture Limited. delivers value to our customers that help them succeed. Get more info!
