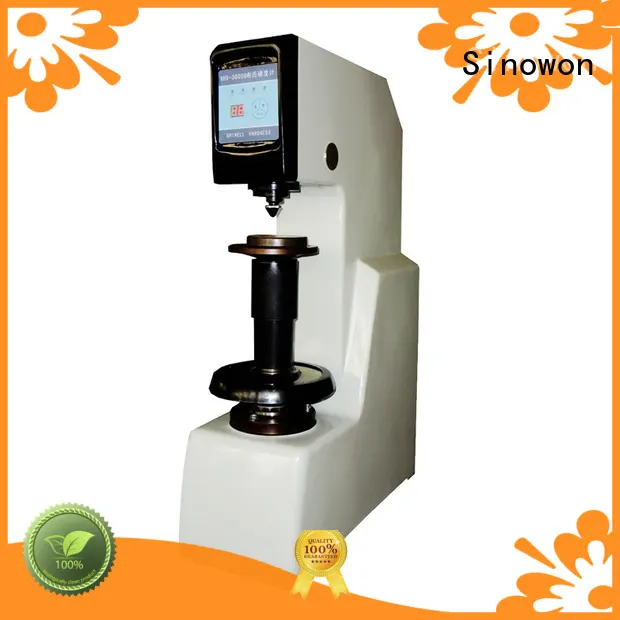

Sinowon quality brinell hardness unit directly sale for soft alloys
1. To attract more customers, it is also necessary for Sinowon to attach great importance to the design of brinell hardness unit .
2. The quality of brinell hardness unit is fine.
3. The product adds a sense of high-end elegant feeling to the places where it's placed. Modern people are fond of its simple yet practical design.
Product Feature
◆ Electronic communication switch.
◆ Solid construction, good rigidity, precise, reliable, durable, high efficiency.
◆ High precision reading microscope measurement system.
◆ Widely used in quality control, strong adaptability to working environment.
◆ In line with GB/T231.2, ISO 6506-2 ，ASTM E10.
Application
Testing Brinell hardness of ferrous, non-ferrous metal and bearing alloy materials. Wide application range, especially used in precision measurement of parallel plane. What’s more, measurement of curved surface is stable and reliable.
Specification
| Name | Brinell Hardness Tester | |
| Model | SHB-3000B | |
| Code# | 831-101 | |
| Loading Force | Kgf | 62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf |
| N | 612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N | |
| Brinell Range | (8-450) HBS，(8-650) HBW | |
| Hardness Display | Check the table of Brinell Hardness scale | |
| Microscope | Analogue 20x Microscope | |
| Vertical Space | 230mm | |
| Horizontal Space | 120mm | |
| Dimension | 700 x268 x842mm | |
| Gross/Net Weight | 240Kg/210Kg | |
| Power Supply | AC 220V/110V±5%，50~60 Hz | |
| Conform Standard | GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243 | |
Accuracy | ||
| Hardness Range | Permitted Error | Repeatability |
| HBW≤ 125 | ≤± 3.5％ | ≤ 3.5％ |
| 125＜HBW≤225 | ≤± 2.5％ | ≤ 3.0％ |
| HBW＞ 225 | ≤± 2.0％ | ≤ 2.5％ |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has been known as a reputable manufacturer in the Chinese market. We highly pay attention to the quality of brinell hardness unit .
2. We have a sales and marketing team scaled for the global market. With their years of experience in the market and wide sales network, they manage to deliver our products to the rest of the world.
3. Sinowon Metrology Instrument is all devoted to produce high quality and low price food machines. Check now! Customer first has always been Sinowon sticking to. Check now!
