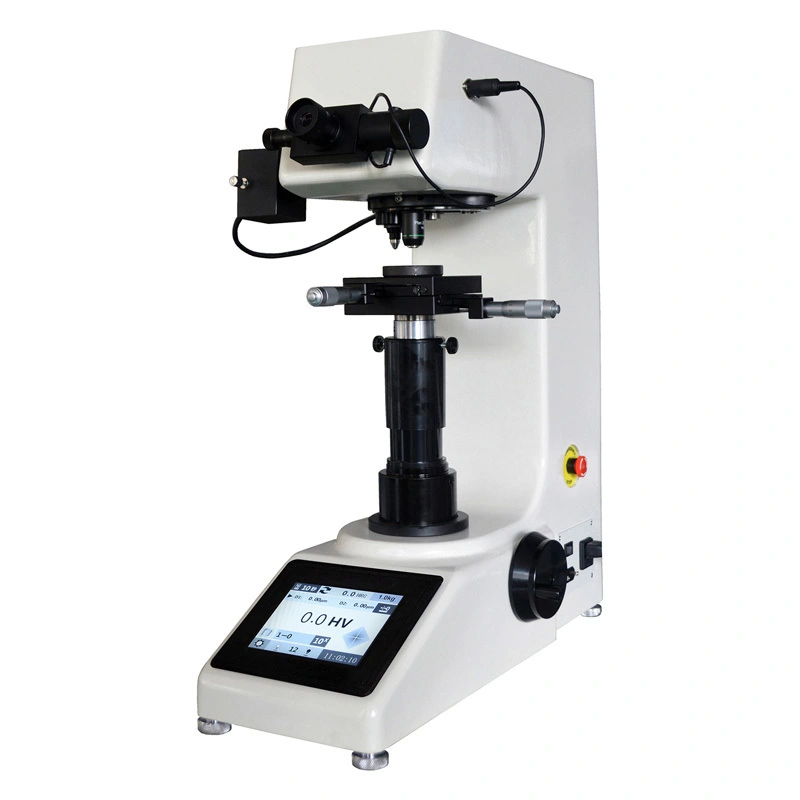

TV Series Touch Screen Digital Vickers Hardness Tester 1
TV Series Touch Screen Digital Vickers Hardness Tester 1

TV Series Touch Screen Digital Vickers Hardness Tester

    oops...!

    no product data.

    Go to homepage

    TV Series Touch Screen Digital Vickers Hardness Tester 2


    Application


    ◆ Hardness testing of metals and scientific researching;

    ◆ Hardness range from soft materials to very hard materials;

    ◆ Except very thin and coated layers, can test almost the metals.



    Characteristics


    ◆ Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, meets different kinds of materials measuring requirement.

    ◆ Close loop loading system is to realize auto loading, dwell and unloading, makes better accuracy and easier installation.

    ◆ 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.

    ◆ Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.

    ◆ One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.

    ◆ Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.

    ◆ Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.

    ◆ Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error, VicPad Vickers measurement device and iVicky 2.0 PC software system.


    Specification



    Product NameTouch Screen Digital Vickers Hardness Tester
    ModelVicky TV-5AVicky TV-10AVicky TV-30AVicky TV-50A
    Code#821-220821-240821-260821-280
    Loading ForceN2.94、4.9、9.8、19.6、24.5、29.4、49.02.94、4.9、9.8、19.6、24.5、29.4、49.0、98.04.9、9.8、19.6、24.5、29.4、49.0、98.0、196、2949.8、19.6、24.5、29.4、49.0、98.0、196、294、490
    Kgf0.3、0.5、1、2、2.5、3、50.3、0.5、1、2、2.5、3、5、100.5、1、2、2.5、3、5、10、20、301、2、2.5、3、5、10、20、30、50
    Optic SystemObserve and Measure Objectives:10X/20XObserve and Measure Objectives:10X/40XObserve and Measure Objectives:10X/20XObserve and Measure Objectives:10X/20X
    Hardness Range1HV-2967HV
    TurretManual Turret(Optional Motorized Turret)
    Loading ControlAuto loading dwell and unloading
    Eyepiece10x digital Eyepiece
    Dwell Time5-60s adjustable
    IlluminationLED / halogen
    Vertical Space170mm
    Horizontal Space130m
    Power SupplyAC220V/50Hz; AC110V/60Hz
    Tester Dimension530x225x630mm
    Packing Dimension630x460x710mm
    Gross / Net Weight75Kg/55Kg
    Conform StandardsISO6507,ASTM E92,JIS Z2244,GB/T4340
