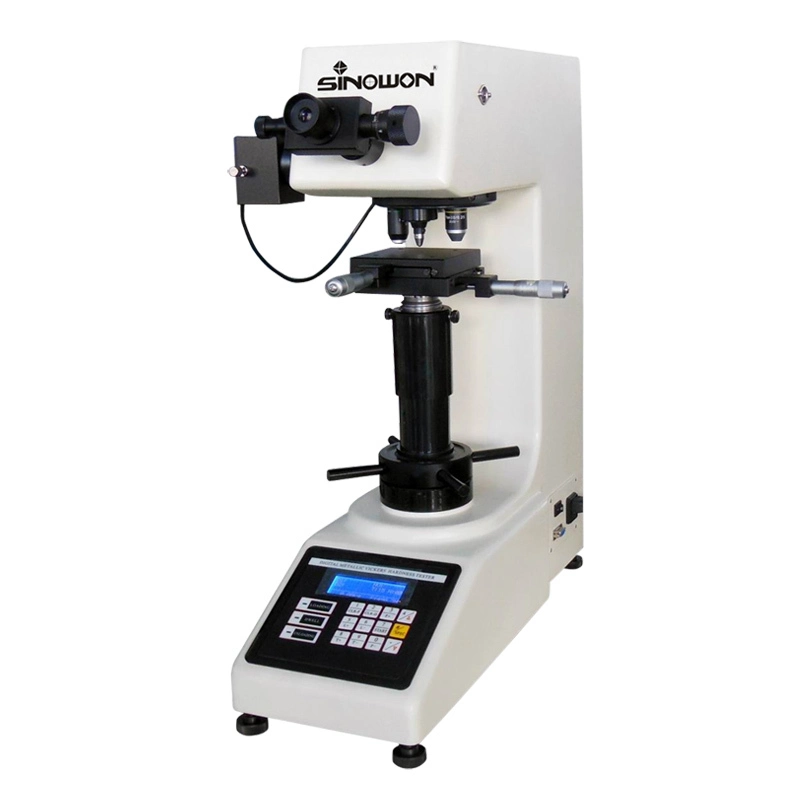

V Series Vickers Hardness Tester
5.0
Model:
V-5
Code#:
821-101
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO6507，ASTM E92，JIS Z2244，GB/T4340
Certificate:
CE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Application
◆ Hardness testing of metals and scientific researching;
◆ Hardness range from soft materials to very hard materials;
◆ Except very thin and coated layers, can test almost the metals.
Characteristics
◆ Apply closed loop loading sensor, MPU controls the loading, dwell and unloading process;
◆ Equips with LCD screen, show loading force, hardness value, dwell time;
◆ Manually reading indentation, then input dialog length to calculate hardness value;
◆ Available to add optional mini printer, motorized turret, and VicPad measurement device or PC software iVicky 2.0.
Specification
| Product Name | Vickers hardness tester | ||||
| Model | V-5 | V-10 | V-30 | V-50 | |
| Code# | 821-101 | 821-111 | 821-121 | 821-131 | |
| Loading Force | N | 2.94、4.9、9.8、19.6、24.5、29.4、49.0 | 2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0 | 4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294 | 9.8、19.6、24.5、29.4、49.0、98.0、196、294、490 |
| Kgf | 0.3、0.5、1、2、2.5、3、5 | 0.3、0.5、1、2、2.5、3、5、10 | 0.5、1、2、2.5、3、5、10、20、30 | 1、2、2.5、3、5、10、20、30、50 | |
| Optic System | Observe and Measure Objectives：10X/20X | Observe and Measure Objectives：10X/40X | Observe and Measure Objectives：10X/20X | Observe and Measure Objectives：10X/20X | |
| Hardness Range | 1HV-2967HV | ||||
| Turret | Manual Turret（Optional Motorized Turret） | ||||
| Loading Control | Auto loading dwell and unloading | ||||
| Eyepiece | 10x mechanical eyepiece | ||||
| Dwell Time | 5-60s adjustable | ||||
| Illumination | LED / halogen | ||||
| Vertical Space | 170mm | ||||
| Horizontal Space | 130m | ||||
| Power Supply | AC220V/50Hz; AC110V/60Hz | ||||
| Tester Dimension | 530x225x630mm | ||||
| Packing Dimension | 630x460x710mm | ||||
| Gross / Net Weight | 75Kg/55Kg | ||||
| Conform Standards | ISO6507，ASTM E92，JIS Z2244，GB/T4340 | ||||
