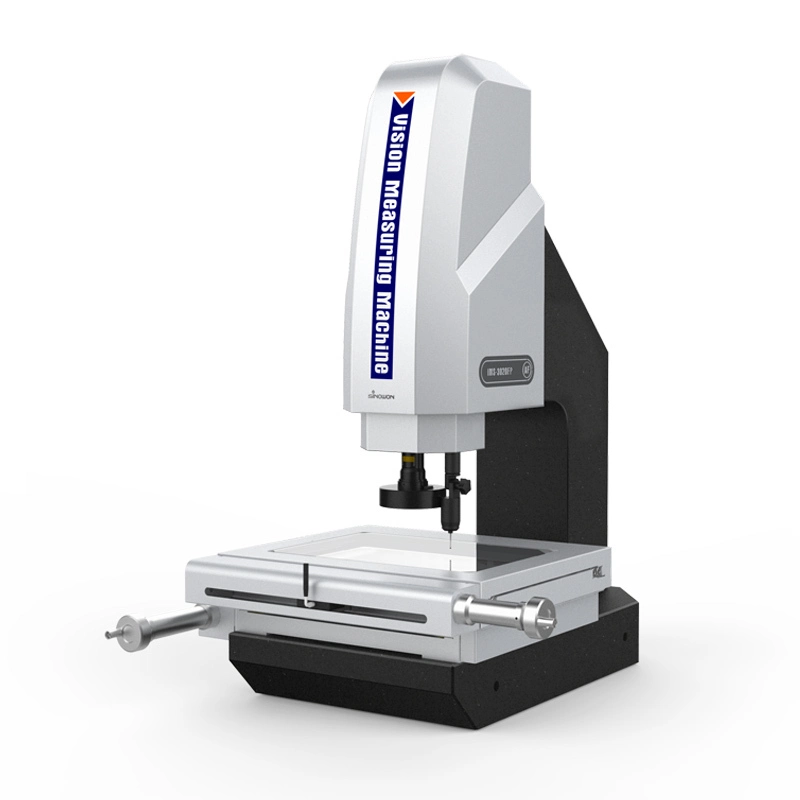

3D iSemi Vision Measuring Machine

    oops...!

    no product data.

    Go to homepage

    3D iSemi Vision Measuring Machine 2

    Brief Induction:

    iSemi is the high accuracy semi-auto geometric vision measuring machines that integrate the sensor of optical detent zoom lens and 3D touch trigger probe system, and the Z-axis focus is motorized by the DC servo motor and it is adjustable by the software, it is widely applied at the industry of 3C, semiconductor, PCB, automobile parts, medical parts, precise molds, aviation and aerospace, etc.

    Product Characteristic:

    l  High precision marble base and pillar ensures the high stability of vision measuring system;

    l  High precision toothless rod and fast moving locking device ensures repeatability error is less than 2um;

    l  High precise working stage with 0.5um optical linear scales ensures the accuracy is less than 2.5+L/200um;

    l  High definitive detent zoom lens and high resolution digital camera ensures clear image without distortion;

    l  With programmable surface 4-ring 8-division LED Cold Illumination and contour LED telecentric illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division;

    l  Britain touch trigger probe and powerful function iMeasuring3.1 3D Measuring Software, highly enhance the quality control;



    Technical Specification

    Commodity

    Compound 3D Touch-probe & Autofocus &Manual-Stage

    Vision Measuring Machine

    Mode

    iMS-2010FP

    iMS-2515FP

    iMS-3020FP

    iMS-4030FP

    iMS-5040FP

    Code#

    521-140FP

    521-150FP

    521-160FP

    521-170FP

    521-180FP

    Working Table

    270x350mm

    408x308mm

    458x358mm

    608x470mm

    650x580mm

    Material

    Marble Table

    Metal Table

    Metal Table

    Metal Table

    Marble Table

    Glass Table

    142x242mm

    306x198mm

    356x248mm

    456x348mm

    541x441mm

    X/Y-axis Travel

    200x100mm

    250x150mm

    300x200mm

    400x300mm

    500x400mm

    Z-axis Travel

    High-precision linear guide , working travel   200mm

    X/Y/Z-axis Travel

    0.0005mm

    X/Y-axis Accuracy

    ≤3+L/200(um)

    Repeatability Error

    2um

    Base and Pillar

    High Accuracy Jinan Qing Marble

    Illumination System(Software Adjustment)

    Surface: Adjustable 0~255 grade 3-ring   8-division LED Cold Illumination,

     every   division can be adjust independently

    Contour: LED Parallel Illumination

    Laser Navigation Lights

    CCD Camera

    High Resolution Digital Camera

    Zoom lens

    6.5X High Resolution Detent Zoom Lens

    Optical Magnification0.7X~4.5XVision   Magnification26X~172X

    Touch Probe

    Britain MCP K2

    Focus Model

    Autofocus

    Working Environment

    Temperature20±2, change range < 2/hr

    Humidity30% ~80%RH

    Vibration<0.002g<15Hz

    Measuring Software

    IMeasuring3.2

    Operation System

    Support XPWIN7WIN8.1WIN 10,32/64 operating system

    Language

    English, other language available

    Dimension(W*D*H)

    677x558x980mm

    790x617x1000mm

    838x667x1000mm

    1002x817x1043mm

    1102x852x1085mm

    Net Weight

    175Kg

    175Kg

    185Kg

    350Kg

    380Kg



    Standard Delivery

    Accessories Name

    Code#

    Accessories Name

    Code#

    3D Measuring Software Kits

    IM3.2

    Autofocus system

    527-140

    Contour LED Parallel Illumination

    425-100

    MCP-K1 Touch probe

    HK-0100-0001

    Surface 4R/8D LED Illumination

    425-130

    Image card and AV Video Cable

    527-130

    Laser Positioning System

    581-330

    RS232 Data Cable

    581-930

    6.5X Detent Zoom Lens

    421-100

    Optical Calibration Block

    581-800

    650TVL Color Camera

    484-130

    Operation Manual

    iSemi/iM

    Optional Accessories


    Accessories Name

    Code#

    Accessories Name

    Code#

    6.5X Motorized Zoom Lens

    421-140

    Rotary Tables RT 2

    581-520

    12.5X Detent Zoom Lens

    421-100

    Rotary Tables RT 3

    581-530

    Coaxial Detent Zoom Lens

    421-120

    Working Cupboard ST 05

    581-650

    0.5X Auxiliary Objective

    423-050

    Swivel Center Support

    581-850

    2X Auxiliary Objective

    423-200

    Dell PC system

    OptiPlex3046MT
