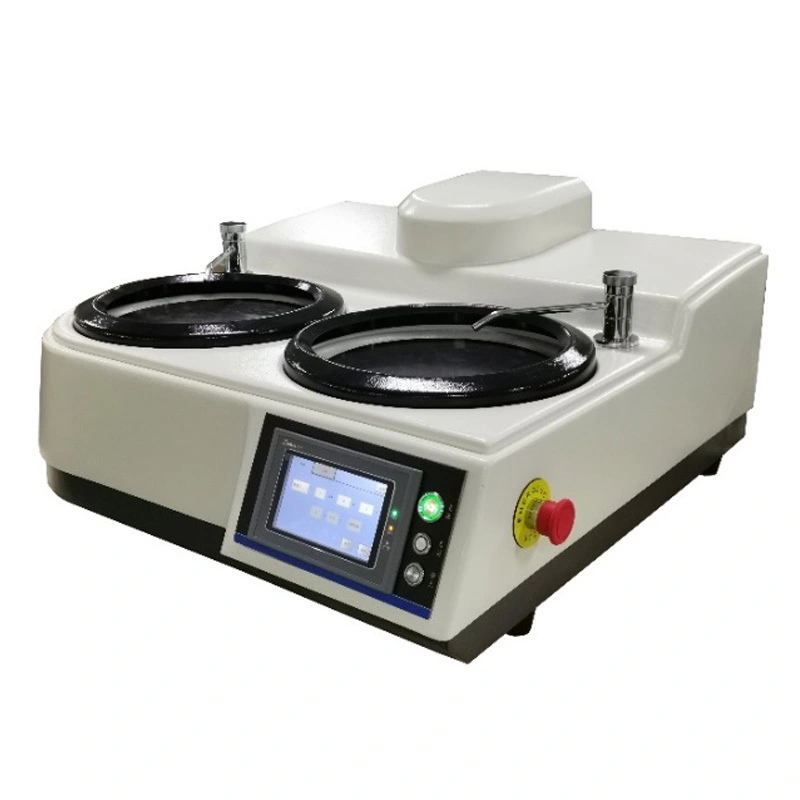

Advanced Metallographic Polishing Machine GP-2B/GP-2BS
Product Introduction
- Adopt high power motor, double grinding disc;
- Touch screen interface, easy to set grinding and polishing parameters; Adopt two (GP-2B is a single motor) independent 1KW high power motor torque, no matter the speed is fast or slow, torque is large and constant;
- The speed range is wide, from 5 RPM to 1000 RPM (maximum 1500 RPM);
- The turntable quickly starts and stops, and the turntable can stop rotating in 2 seconds;
- Speed, grinding time, rotation direction and other grinding parameters, and automatically save, easy to call;
- Manual mode, four gears;
- Water valve opens automatically (exclusive to GP-2BS)
- 64 automatic operations (GP-2B is 9);
- 12 kinds of commonly used materials polishing process (GP-2BS unique);
- Connect and control the polishing droplet (optional).
Specification
|
Model |
GP-2B |
GP-2BS |
|||
|
Number of disc |
2 |
2 |
|||
|
Features |
Good economic |
High degree of automation |
|||
|
Mode of operation |
Single motor |
Dual motor; Left and right disk independent control |
|||
|
Motor power |
1Kw |
1Kw X 2 |
|||
|
Water valve opens automatically |
There is no |
There are |
|||
|
Automatic grinding and polishing parameters Parameters include: speed, time and grinding disk rotation direction
|
9 kinds |
64 kinds |
|||
|
Commonly used material sample preparation process |
There is no |
Steel, iron and other 12 materials sample preparation process, each material up to 10 steps |
|||
|
Working disc diameter (mm) |
φ254 (optional φ200, φ230, φ300) |
||||
|
RPM (r/min) |
5-1500 |
||||
|
Direction of rotation |
Counterclockwise/clockwise optional, forward, reverse automatic switch |
||||
|
Four-speed manual (r/min) |
V1=200, V2=400, V3=600, V4=800 (user can change) |
||||
|
Grinding and polishing parameters |
User can set and call |
||||
|
Power Supply |
Voltage: AC220V, frequency: 50HZ |
||||
|
Overall dimension (mm) |
760 x 730 x 360 (L * W * H) |
||||
|
Weight |
38kg |
||||
