Metallographic Mounting Press MP2 1
Metallographic Mounting Press MP2 1

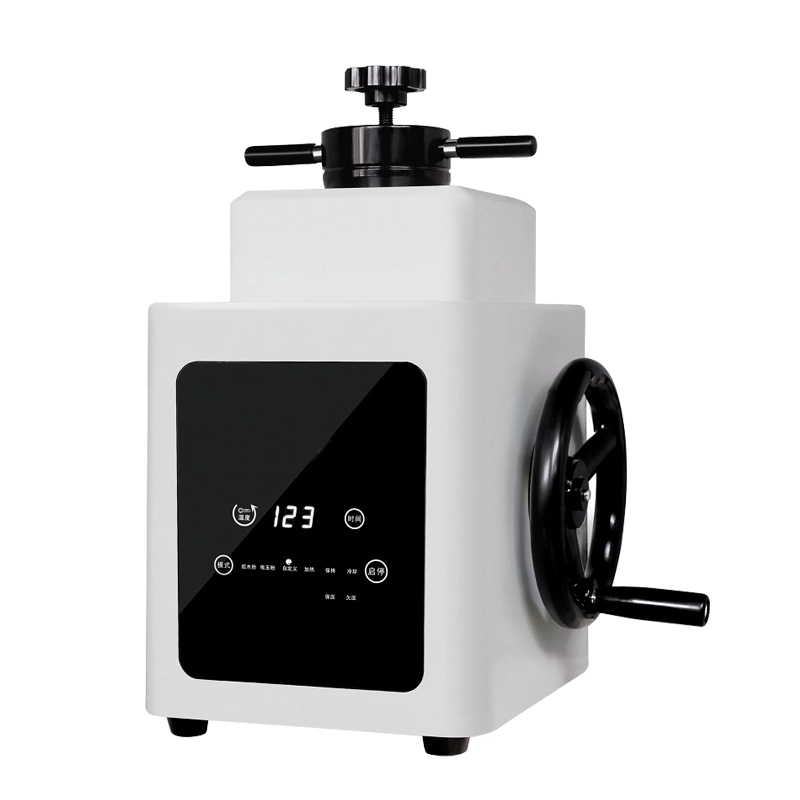

Metallographic Mounting Press MP2

    oops...!

    no product data.

    Go to homepage

    Metallographic Mounting Press MP2 2


    Product Feature



    This machine is designed for purpose of the last process before polishing. It is setting up those small, difficult-to-hold or irregular specimens for metallographical test. It can facilitate polishing and watch properly the ideal material structure and measure the hardness of the material by hardness tester. The inserts for this machine are limited to thermosetting materials only .The punching temperature of different thermosetting materials can be adjusted depending upon the features of materials .

    The inserts are available from the sales agency of our company.




    Specification



    Machine Power

    Model

    MP2-22

    MP2-30

    MP2-45

    Code#

    713-101

    713-111

    713-121

    Sample diameter

    Φ22mm

    φ30mm

    Φ45mm

    Heating Range

    Max190

    Holding time Range

    0-30min

    Machine Power

    ≦800w

    Input Voltage

    Single-phase 220V 50HZ

    Dimension

    260mm×360mm×450mm

    Net Weight

    35kg
