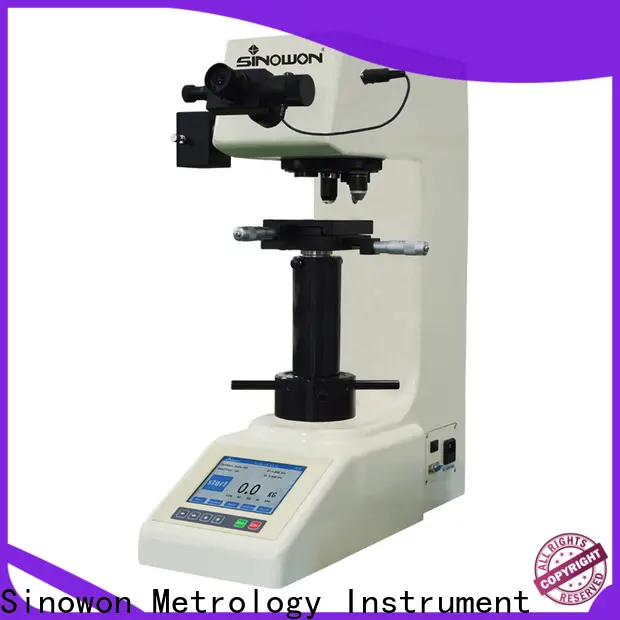

approved vickers hardness testing machine customized for small areas

Company Advantages
1. The product manufactured by Sinowon is very popular among customers. Its quality and accuracy are improved every year
2. The market's response to the product is positive, which means that the product will be more used in the market. The product is verified by ISO9001:2015 to be quality ensured
3. We organized a quality circle to detect and solve any quality problems in the production process, effectively ensuring the quality of products. The product is well known for high accuracy and great stability

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, meets different kinds of materials measuring requirement.

◆ Close loop loading system is to realize auto loading, dwell and unloading, makes better accuracy and easier installation.

◆ 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.

◆ Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.

◆ One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.

◆ Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.

◆ Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.

◆ Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error, VicPad Vickers measurement device and iVicky 2.0 PC software system.

Product Name		Touch Screen Digital Vickers Hardness Tester
Model		Vicky TV-5A	Vicky TV-10A	Vicky TV-30A	Vicky TV-50A
Code#		821-220	821-240	821-260	821-280
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x digital Eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is an important force in vickers hardness testing machine market with strong influence and comprehensive competitiveness. micro vickers hardness tester is provided in Sinowon which is famous for its high quality.
2. With a strong technological innovation capability, Sinowon Innovation Metrology Manufacture Limited. has obtained several national patents.
3. It is urgent for Sinowon to develop the innovation of manufacturing durometer technology. We are a company built on relationships so we listen to our customers. We take their needs on as our own and move as quickly as they need us to. Welcome to visit our factory!
