approved Video measurement system design for small areas

Company Advantages
1. Sinowon vickers hardness machine is made of high quality raw materials that are guaranteed by our reliable suppliers. A quality control system is implemented for the product
2. This wonderful and exquisite item will definitely brighten to everyone's eye. Most customers say the product is sold out quickly and they have to repurchase more. It can be customized according to customers' needs
3. We are proud of Video measurement system's diverse functions and original design.
4. Through the cooperation of exceptional technicians, Video measurement system is characterized by its vickers hardness machine . Its quality and accuracy are improved every year

◆ Close-loop control: equips with close-loop loading sensor, ensure loading force more precision, iVicky 6.0 control software realize auto loading, dwell and unloading.

◆ Auto Turret: indenter and objectives controlled by iVicky 6.0 software.

◆ Motorized Platform: precision X-Y movement to realize specific position hardness measurement.

◆ Auto Focus: Apply high resolution optic system and auto focus technology, MV-500 can realize auto focus and auto hardness evaluation only the specimen surface Ra≦0.8um.

◆ Auto Measurement Software: iVicky 6.0 can control hardness tester and data communication, includes objectives and indenter switch, auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate depth and hardness curve, error statistics, test times group statistics, generate Excel and Word format report.

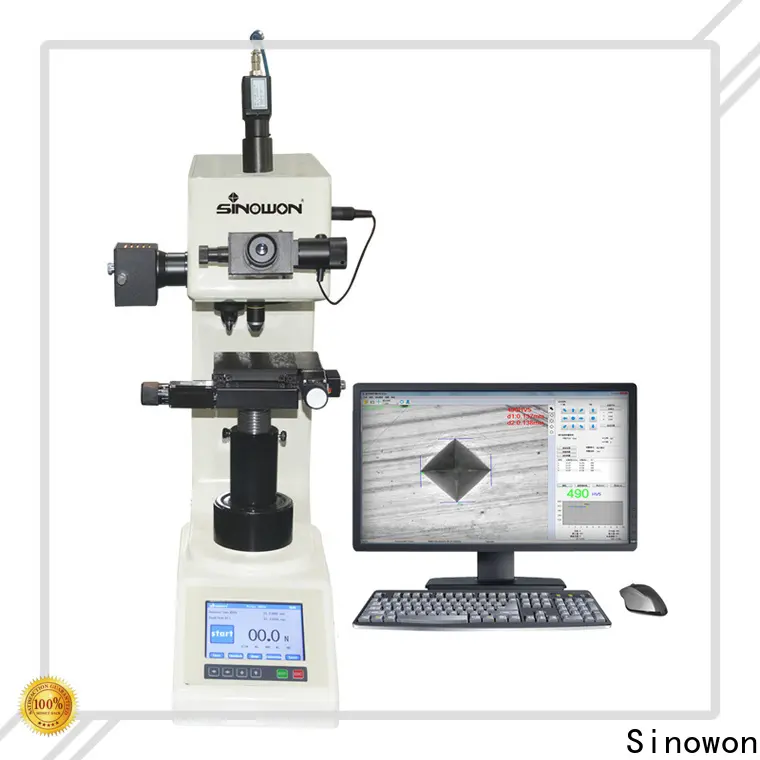

Product Name		Auto Vickers Hardness Tester
Model		AutoVicky ZHV-5F	AutoVicky ZHV-10F	AutoVicky ZHV-30F	AutoVicky ZHV-50F
Code#		821-220F	821-240F	821-260F	821-280F
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Objectives: 10X/40X; Digital Eyepiece: 10X	Objectives: 10X/40X; Digital Eyepiece: 10X	Objectives: 10X/20X; Digital Eyepiece: 10X	Objectives: 10X/20X; Digital Eyepiece: 10X
Turret		Auto Turret
Loading Control		Auto loading dwell and unloading
Data Transferring		RS232
Camera Adapter		C-mount
Hardness Conversion		HRA, HRB, HRC, HK, HBW, etc.
Display		5.2” Color touch screen, resolution 640*480
Dwell Time		5-60s adjustable
Measuring Range		1HV-2967HV
Resolution		1HV
Vision system		USB high definition USB camera
Motorized XY Platform		Size :100x100mm; Travel :50x50mm; Resolution:1um
Illumination		Adjustable halogen lamp
Vertical Space		≤ 170mm
Horizontal space		≤ 130mm
Voltage		AC220/50Hz
Dimension/ Packing Dimension		535x190x585/610x450x770mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO 6507, ASTM E92, JISZ2244, GB/T4340
Software		iVicky 6.0 Auto Vickers Measurement Software
Computer		Dell, OS Win7, office2010

Company Features
1. After years of solid development, Sinowon Innovation Metrology Manufacture Limited. has become one of the leading company that specializes in developing and manufacturing Video measurement system. Sinowon has been constantly improving independent innovation capabilities and technology research abilities.
2. Sinowon Innovation Metrology Manufacture Limited. has a high-quality professional R&D team for Vision Measuring Machine .
3. Sinowon Innovation Metrology Manufacture Limited. has introduced advanced R&D and production equipment. We are cultivating a working environment that gives our team room and freedom to be themselves and work in a way that strengthens and adds value to our relationships.
