approved Vision Measuring Machine inquire now for measuring
1. Materials used for Vision Measuring Machine is periodically renovate to make it own best properties.
2. Comprehensive quality control is carried out to ensure that the product meets all relevant quality standards.
3. Stable performance, long storage life and reliable quality.
4. The product can drastically cut labor costs. With this product, people can get the same high quality while hiring fewer workers.
Characteristics

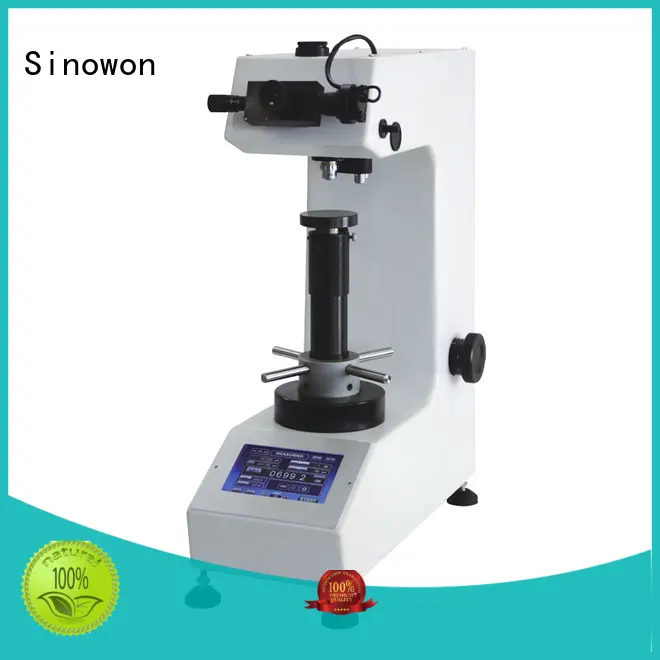

◆ Vickers hardness tester with colour touch screen;
◆ 8 inches colour touch screen, high resolution, easy to operate;
◆ Strong and stable body;
◆ LED illumination, light, adjustable, long life and no heat;
◆ Data storage for review and printing;
◆ Rotatable turret with five working positions;
◆ 250 lines encode with more precise measurement;
◆ Conversion between different scales;
◆ Can be developed to semi-automatically system.
Specification
Model | Vicky TV-10Plus | Vicky TV-30Plus | Vicky TV-50Plus | |
Code# | 821-240Plus | 821-260Plus | 821-280Plus | |
Test Load | Kgf | 0.2 / 0.3 / 0.5 / 1 / 2 / 3 / 5 / 10 | 0.3 / 0.5 / 1 / 3 / 5 / 10 / 20 / 30 | 1 / 2 / 3 / 5 / 10 / 20 / 30 / 50 |
Nf | 1.961 / 2.942 / 4.903 / 9.807 / 19.614 / 29.42 / 49.035 / 98.07 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | |
Loading Mechanism | Automatic loading and releasing method 50~100 µm/s | |||
Dwell Time | 5 ~ 99 s | |||
Turret Mechanism | Automatic | |||
Diamond Indenter | VICKERS INDENTER (FOR HV) | |||
Objective | Normal | 10X , 40X | 10 X , 20X | 10X |
Option | 40x, 20x, 5X | |||
Measuring Microscope Eyepiece | Electronic Type 10X | |||
Max. Measuring length | 900 µm ( In case of 100x ) 230 µm ( In case of 400x ) | |||
Mix. Measuring unit | 0.1µm (0.01µm for CTS type) | |||
Max. Specimen Height | 200mm | |||
Max. Specimen Depth | 160mm | |||
Measuring Hardness Scale | HV, HK | |||
LCD-Touch Operation Panel | Load start / set up zero / dwell time / light adjustment / transformation scale turret location / data processing ( browse / delete / print )System settings( test conditions / language/Communications/factorysettings ) | |||
Numerical Display | D1 value / D2 value / HV-HK Instructions / hardness value /conversion value / load value / dwell time / test times / turret location | |||
Print Output | Measured data and statistic data ( Max. Value / Min. value / Mean value / Range / Standard deviation ) | |||
Light Source | LED Illuminator | |||
Accuracy | Conform to : JIS B -7735, ASTM E-384 and ISO 6507-2 | |||
Photographic Device | Capable to mount photographic device ( Option) | |||
Dimensions | W 226 × D 560 × H 660 mm | |||
Weight | 72KG | |||
Power Supply | Single phase AC 220 V 50/60 Hz | |||
