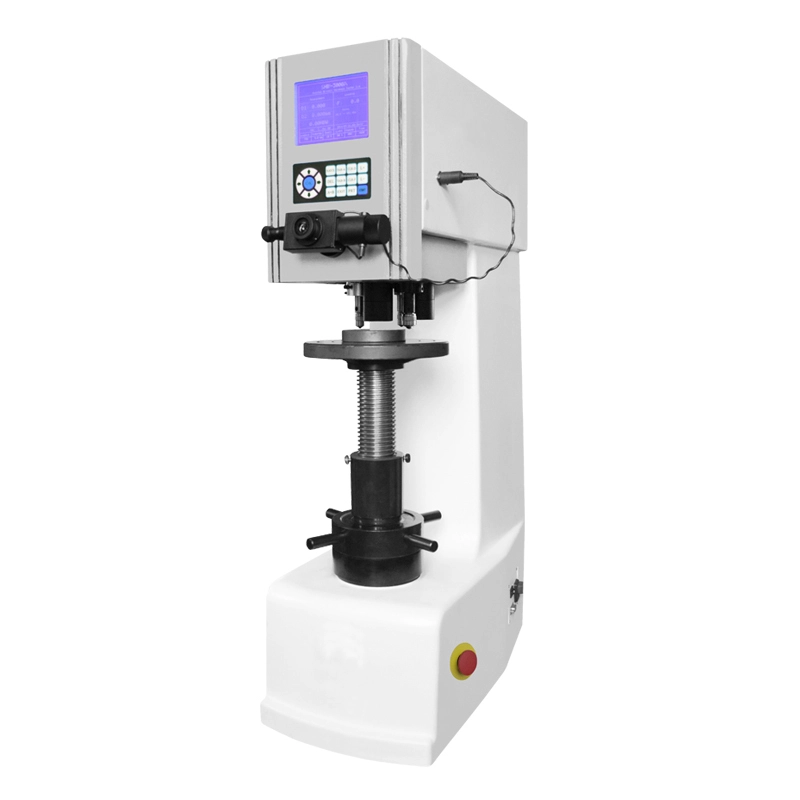

AutoBrin-3000A Auto Turret Digital Brinell Hardness Tester

Model:

AutoBrin-3000A

Code#:

831-151

Accuracy:

≤± 3.5％

Warranty:

12 month

Delivery Time:

15-30days

Standard:

GB/T231.2, JJG150, EN-ISO 6506； ASTM E10-12; JIS Z2243

Certificate:

Inquiry

Write a Review

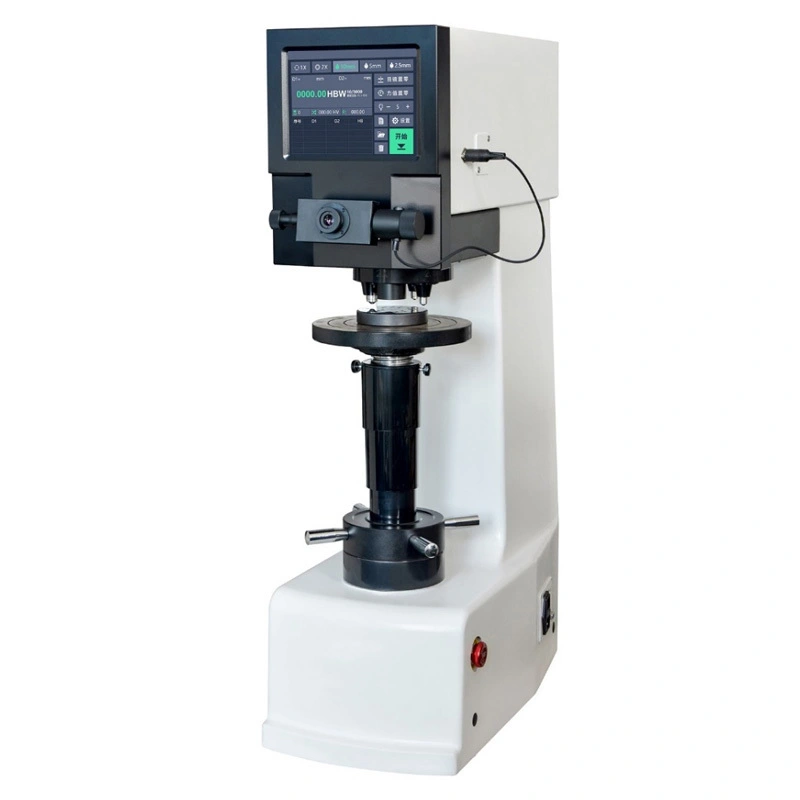

AutoBrin-3000A Auto Turret Digital Brinell Hardness Tester 2

Product Feature

◆ AutoBrin-3000A is the latest generation digital Brinell hardness tester, it equips with motorized turret to install 10mm, 5mm, 2.5mm tungsten carbide ball indenter, 1x and 2x objectives simultaneously, avoid operation error during switch indenter and objectives.

◆ Apply large LCD to display testing parameters and results, indentation can be measured by 10x digital eyepiece, also available to realize hardness conversion among 17 hardness scales.

◆ Loading control by load cell with accuracy at 0.5‰, microchip can make force compensation automatically lost during loading.

◆ Indentation measurement system integrated by 10x digital eyepiece, 1x and 2x objectives, eliminates manually brinell table checking, to realize directly indentation measurement and display hardness result on LCD.

◆ AutoBrin-3000A equips with built-in mini printer, and can transfer data to computer by RS232, to do further analysis by PC software.

◆ Optional accessory for AutoBrin-3000A has Brinell Optical Measuring System BrinScan.

Application

Because of brinell method apply big loading force and generate big indentation, it is suitable to test hardness of coarse-grained metals, like cast iron, non ferrous metal and their alloy, sale of steels, etc.

Soft metals are also available to test, like Aluminium, copper, plumbum, tin, zinc and their alloy, etc.

Specification

Name	Auto Turret Digital Brinell Hardness Tester
Model	AutoBrin-3000A
Code#	831-151
Loading Force	Kgf	62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf
	N	612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N
Hardness Resolution	0.1HBW
Brinell Range	(8-650) HBW
Hardness Reading	Display on LCD
Indentation Measurement	Magnification 10x/20x, eyepiece 10x and objective 1x, 2x
Data Output	Mini printer/RS232
Vertical Space	260mm
Horizontal Space	150mm
Dimension	890×535×260mm
Gross/Net Weight	180Kg/150Kg
Power Supply	AC 220V/110V±5%，50~60 Hz
Conform Standard	GB/T231.2, JJG150, EN-ISO 6506； ASTM E10-12; JIS Z2243
Accuracy
Hardness Range	Permitted Error	Repeatability
HBW≤ 125	≤± 3.5％	≤ 3.5％
125＜HBW≤225	≤± 2.5％	≤ 3.0％
HBW＞ 225	≤± 2.0％	≤ 2.5％

Software Introduction
