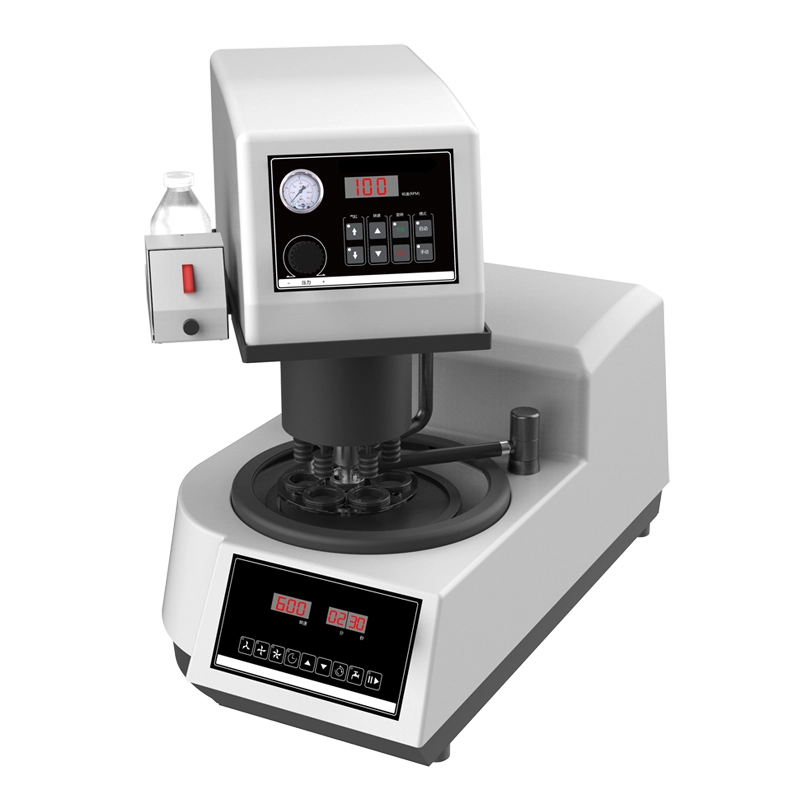

Automatic Grinder/Polisher GP-1000A/GP-2000A
GP-1000A/GP-2000A are automatic grinder and polisher for metallographic specimen preparation. The strong and variable speed drive allows application for all working steps. The adjustable individual piston polishing heads can polish 1 to 6 specimens independent of each other.
Product Feature
◆ Simple operation for grinding and polishing;
◆ Variable speed. Preset three fast speed buttons;
◆ Adjustable piston pressure polishing head for polishing 1-6 specimens independent of each other;
◆ CCW and CW direction control;
◆ The water hose with universal direction can be pulled out for cleaning the basin;
◆ Plastic disposable bowl liner for ease of cleaning;
◆ Hard anodized aluminum working wheel;
◆ Durable composite construction, antirust;
◆ Powder coated aluminum housing, durable and reliable.
Specification
Description | GP-1000A | GP-2000A |
Wheel (mm) | ○Ø203 ●Ø254 | |
Speed(rpm) | 100-1000rpm，can be customized | |
Wheel | 1 | 2 |
Motor | 550W | |
Mode | Automatic | |
Speed of head(rpm) | 50-200 | |
Holder(mm) | Φ30x6，other can be customized | |
Pressure | Individual Piston | |
Motor of Head | 90W | |
Power | 220V | |
Paper Ring | ● | ● |
Splash guard | ● | ● |
Cover | ● | ● |
Grinding paper | ● | ● |
Polishing Cloth | ● | ● |
Diamond Spray | ○ | ○ |
Diamond Slurry | ○ | ○ |
Alumina Powder | ○ | ○ |
Recirculating Tank | ○ | ○ |
●Standard○Option
