Automatic Precision Cutter AC-200 Series

Model:

AC-200 Series

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Automatic Precision Cutter AC-200 Series 2

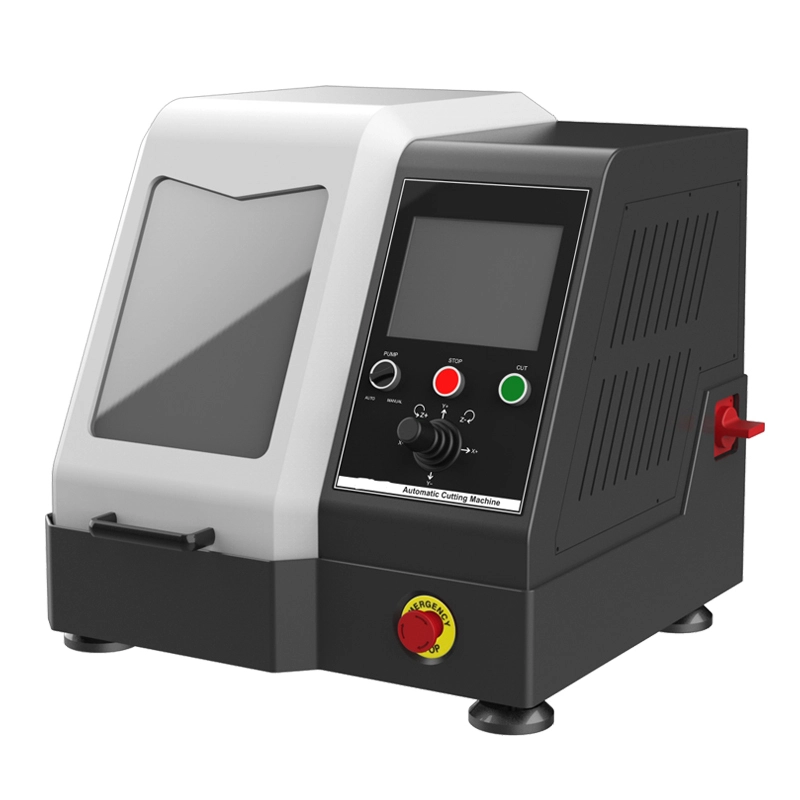

The AC-200 series are tabletop automatic precision cutters with high performance. This is a versatile cutting machine designed for precisely sectioning an extremely wide range of materials, such as metals, fasteners, rocks and ceramics, polymers, composites, electronics, semiconductors, biomaterials, etc. The machine integrates the optimized precision cutting technology with advanced control system to provide excellent cut quality and high throughput.

Product Feature

◆ Powerful motor to reduce cutting time and provide high productivity

◆ Smart feed. The machine can adjust the feed speed in real time with the load changes

◆ Cutting modes: Y-continuous, Y-pulse, Z-continuous, Z-pulse, slicing (different model, different cutting mode)

◆ Versatile industrial joystick with X, Y, Z axis. Easy to use.

◆ 8 inch color touchscreen for simple operation and user friendliness

◆ Electrical brake for faster stopping of the blade

◆ Chamber illumination with LED

◆ Aluminum casting base, powder coated

◆ T-slot Table made of stainless and aluminum alloy

◆ Fast Cam Locking Vises, made of 304 stainless steel

◆ Left cover made of composites by integral molding

◆ Mobile plastic recirculation coolant tank

◆ Independent pump for cleaning the chamber

◆ Optional laser alignment aid

Specification

Description	AC-200XYZ	AC-200YZ	AC-200Z
Y Feed	Automatic
Z Feed	Automatic	Automatic	---
X Feed	Automatic	○Manual	○Automatic○Manual
Cutting mode	Continuous, Pulse	Continuous, Pulse	Continuous, Pulse
Blade(mm)	20012.70.8
Blade speed (rpm)	500-3000
Table Dimensions (WxD,mm)	235*220
X Travel	40mm
Cooling	Automatic/manual
Main Motor	1.2KW
Power	110/220V AC, 50-60Hz, 1 Phase
Accessories
Diamond Blade	○	○	○
SiC blade	○	○	○
Alumina Blade	●	●	●
Fast Cam Locking Vises	●	●	●
Vertical Clamping vise	○	○	○
Laser alignment aid	○	○	○
Plastic tank	●	●	●
Plastic tank with magnetic filter	○	○	○
Cutting fluid	○	○	○
Centrifugal separator	○	○	○
Base Bench	○	○	○

●Standard○Option

Details

Automatic Precision Cutter AC-200 Series 3
