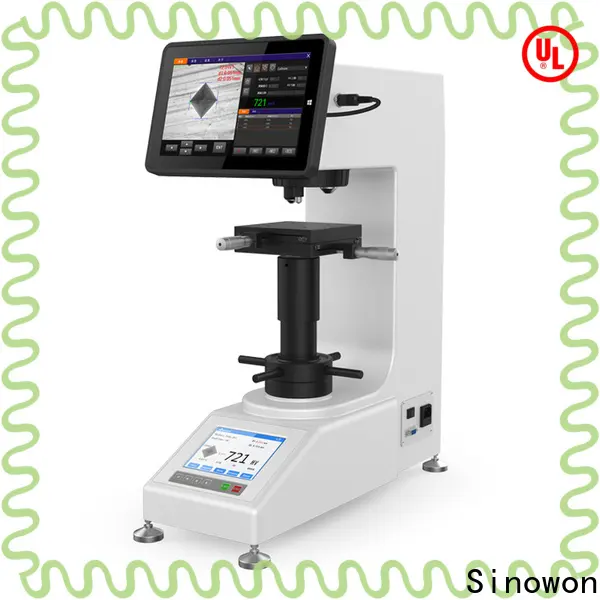

automatic vickers hardness testing machine factory for thin materials 1

automatic vickers hardness testing machine factory for thin materials 2

automatic vickers hardness testing machine factory for thin materials

Model:

MV-10V

Code#:

821-101V

Warranty:

12 month

Delivery Time:

15-30days

Standard:

GB/T4340.2, EN-ISO6507,ASTME10-08,ASTME-384

Certificate:

Inquiry

automatic vickers hardness testing machine factory for thin materials 3

MV-10V is upgrade product based on Vicky TV10 upgrade products, combined Vicky TV10 with Vickers hardness video measuring device. Indentation measurement is conducted on VicPad, Because the operator only needs to observe the monitor no longer used traditional ways of observation and measurement of optical Visual eyepiece, thus reducing the optical vision of the human eye fatigue, enhance the efficiency of the operator.

Feature & Application

Feature:

◆ It adopts die-cast body, stability is much higher than in the mechanical performance of sheet metal welding machines;

◆ It is equipped with 10X and 40X HD lens and HD USB camera, the instrument measured images in optical imaging system and video of great quality;

◆ Combined with video measuring devices, It improves efficiency, reduces visual fatigue of the operator.

Application Range:

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

Specification

Product Name		Vickers Hardness Tester with Measurement Monitor
Model		MV-10V
Code#		821-101V
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0
	Kgf	0.3、0.5、1、2、2.5、3、5、10
Indentation Measuring Device		MV-100
Switch of Objectives and Pressure Switch		Auto-turret
Loading Control		Auto Loading, Dwell and Unloading
Magnification of Objective		Observation：10x/40x；Measurement：10x/40x
Video System		iVicky 3.0 Auto Measuring Vickers System
Dwell Time		5-60s
Measuring Range		1HV-2967HV
X-Y Anvil		Size：100X100mm； Travel:25mm X 25mm;Resolution：2um
Maximum Height and Width of Specimen		Maximum Height：70mm; Maximum Width：95mm
Power supply		AC220/50Hz; AC110V/60Hz
Dimension		425X245X490mm
Gross/Net Weight		45kg/35Kg
Executive Standard		GB/T4340.2, EN-ISO6507,ASTME10-08,ASTME-384

Software Introduction

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
