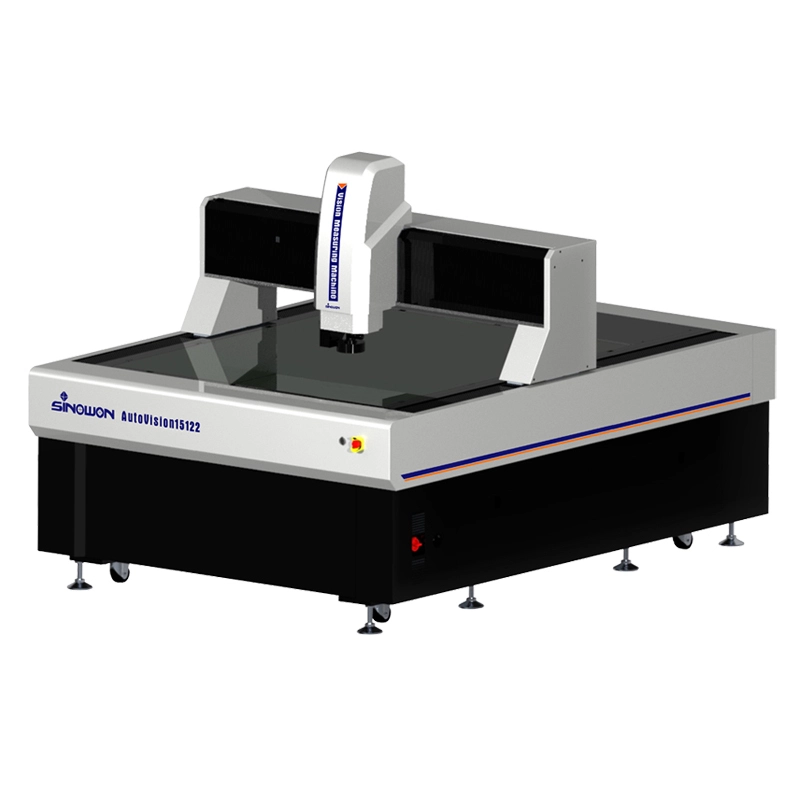

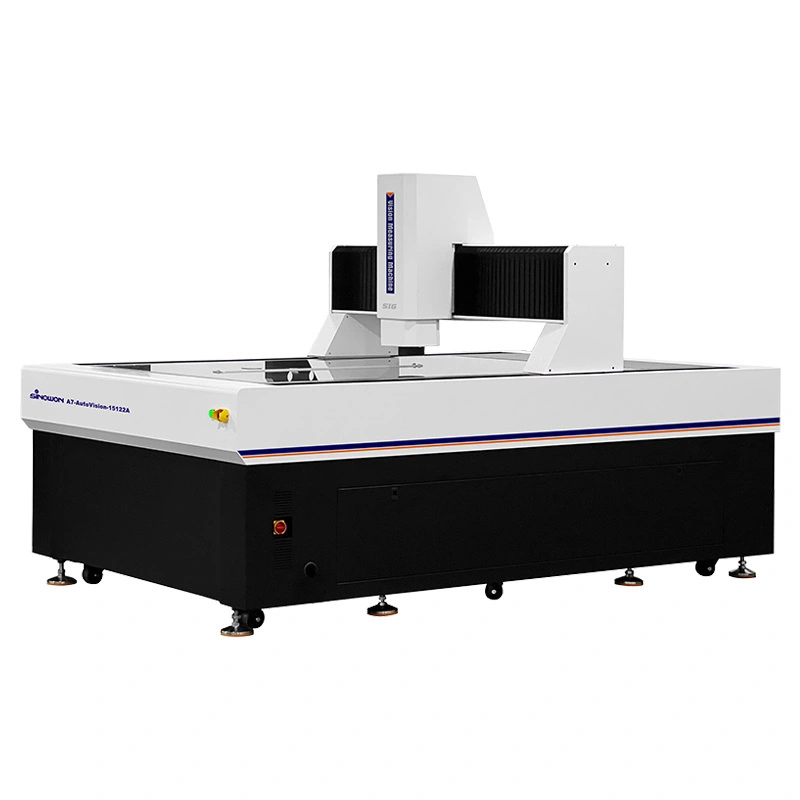

A7-AutoVision-15122 Series Super Large Travel Automatic Vision Measuring Machine

Model:

A7-AutoVision-15122A

Code#:

523-180P

Accuracy:

XY-axis：≤3+L/100(um);Z-axis：≤5+L/100(um)

Warranty:

12 month

Delivery Time:

15-30days

Standard:

GBT 24762' ISO30160

Certificate:

Gost CE

Inquiry

Write a Review

A7-AutoVision-15122 Series Super Large Travel Automatic Vision Measuring Machine 2

A7-AutoVision15122 Series is a Gantry Fully Auto Vision Measuring Machine, it is designed for high accuracy and large dimension measurement. Equipped with movable bridge structure, the workpiece is fixed, which can ensure measurement accuracy and stability. It is widely used in electronic industry, medical devices, LCD, aerospace and other industries measurement.

Product Characteristics

◆ Moving Bridge type structure, measuring workpiece is fixed;

◆ Four-axis CNC fully auto close loop control, auto measurement;

◆ Indian Marble base and pillar, good stability;

◆ Imported RSF linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;

◆ Imported HD color camera to meet the needs of clear observation and accurate measurement;

◆ 8.3x high-resolution motorized coaxial zoom lens, accurate doubling and one times pixel correction only needed;

◆ With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatically control the brightness in the 8-division;

◆ Powerful function and easy operation iMeasuring Software to enhance quality control;

◆ Optional MCP Probe and Laser Senser Module. Machines can be customized according to customers’requirements.

Technical Specification

Commodity			High Precision Moving Bridge Automatic Vision Measuring Machine A7-AutoVision Series
Model			A7-AutoVision-1082	A7-AutoVision-12102	A7-AutoVision-15122	A7-AutoVision-18122
X/Y Axis Travel			800*1000	1000*1200	1200*1500	1200*1800
Z Axis Travel			200mm
X/Y/Z Axis Linear Scale			European Linear Scale Resolution: 0.1um
Guidance Mode			P-Class Precision linear guide, double-track double slider guide
Operation Mode			Joystick controller, Mouse operation, automatic detection program
Accuracy*		E1x,y	3.5+L/200(um)
		E1xy	5.0+L/200(um)
		E1z	5.0+L/200(um)
Repeatability			2um
Illumination System	Contour		LED parallel contour illumination
	Surface		0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Video System**			1/1.8" High-Definition Digital Color Camera
			8.3X Motorized Zoom Lens Optical Magnification: 0.6X~5.0X; Video Magnification: 20X~170X (21” monitor)
Measuring Software			iMeasuring
Operating System			Support WIN10/11-32/64 bit operating system
Language			English, Simplified Chinese, traditional Chinese, other languages can be added
Working Environment			Temperature 20℃±2℃, temperature change<1℃/Hr; humidity 30%~80%RH; vibration<0.02g's, ≤15Hz
Power Supply			AC220V/50Hz; 110V/60Hz
Dimension(WxDxH) (mm)			193813501692	217916461874	246217701736	276217701736
Packing Size(WxDxH) (mm)			250019002200	242020602000	270020602000	300020602000
Net Weight(Kg)			1500	2000	2200	2500

Note：

L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

Magnification is approximate value, it is related to the dimension of monitor and resolution.

Field of view(mm) = (diagonal*Horizontal*Vertical)

Product Configuration Model Description（Example with A7-AutoVision-15122）：

Product Category	2.5D	3D	2.5D	3D
Commodity	2.5D Automatic Vision Measuring Machine	3D Automatic Contact & Vision Measuring Machine	2.5D Automatic Laser-Scan & Vision Measuring Machine	3D Automatic Multisensory Measuring Machine
Model	A7-AutoVision-15122A	A7-AutoVision-15122B	A7-AutoVision-15122C	A7-AutoVision-15122D
Type	A	B	C	D
Significance	Optical Zoom-lens Sensor	Zoom-lens Sensor and Contact Probe Sensor	Zoom-lens Sensor and Lazer Sensor	Zoom-lens Sensor, Contact Probe Sensor and Lazer Sensor
Contact Probe	Without	MCP-Kit1	Without	MCP-Kit1
Lazer Module	Without	Without	Omron Lazer	Omron Lazer
Software Version	iMeasuring4.1	iMeasuring4.2	iMeasuring5.0	iMeasuring5.1

Moving Bridge Automatic Vision Measuring Machine Models and Specifications：

Model	Code#	Model	Code#	Model	Code#
A7-AutoVision-432A	523-180H	A7-AutoVision-542A	523-180J	A7-AutoVision-652A	523-180K
A7-AutoVision-432B	523-280H	A7-AutoVision-542B	523-280J	A7-AutoVision-652B	523-280K
A7-AutoVision-432C	523-380H	A7-AutoVision-542C	523-380J	A7-AutoVision-652C	523-380K
A7-AutoVision-432D	523-480H	A7-AutoVision-542D	523-480J	A7-AutoVision-652D	523-480K
Model	Code#	Model	Code#	Model	Code#
A7-AutoVision-862A	523-180L	A7-AutoVision-1082A	523-180M	A7-AutoVision-12102A	523-180N
A7-AutoVision-862B	523-280L	A7-AutoVision-1082B	523-280M	A7-AutoVision-12102B	523-280N
A7-AutoVision-862C	523-380L	A7-AutoVision-1082C	523-380M	A7-AutoVision-12102C	523-380N
A7-AutoVision-862D	523-480L	A7-AutoVision-1082D	523-480M	A7-AutoVision-12102D	523-480N
Model	Code#	Model	Code#	Model	Code#
A7-AutoVision-15122A	523-180P	A7-AutoVision-18122A	523-180Q	A7-AutoVision-26162A	523-180R
A7-AutoVision-15122B	523-280P	A7-AutoVision-18122B	523-280Q	A7-AutoVision-26162B	523-280R
A7-AutoVision-15122C	523-380P	A7-AutoVision-18122C	523-380Q	A7-AutoVision-26162C	523-380R
A7-AutoVision-15122D	523-480P	A7-AutoVision-18122D	523-480Q	A7-AutoVision-26162D	523-480R

Moving Bridge Automatic Vision Measuring Machine Measurement Space Guide Table：

Travel	Model	Accuracy		X Axis Travel mm	Y Axis Travelmm	Z Axis Standard Travel mm	Z Axis Maximum Custom Travel mm
Travel	Model	E1x,y	E1z	X Axis Travel mm	Y Axis Travelmm	Z Axis Standard Travel mm	Z Axis Maximum Custom Travel mm
300X400X200	A7-AutoVision-432	1.8+L/200	3.0+L/200	300	400	200	400
400X500X200	A7-AutoVision-542			400	500	200	400
500X600X200	A7-AutoVision-652			500	600	200	400
600X800X200	A7-AutoVision-862			600	800	200	400
800X1000X200	A7-AutoVision-1082	2.0+L/200	4.0+L/200	800	1000	200	400
1000X1200X200	A7-AutoVision-12102	2.5+L/200	4.0+L/200	1000	1200	200	400
1200X1500X200	A7-AutoVision-15122	3.0+L/200	5.0+L/200	1200	1500	200	400
1200X1800X200	A7-AutoVision-18122	3.5+L/200	5.0+L/200	1200	1800	200	400
1500X2000X200	A7-AutoVision-20152	4.0+L/200	5.0+L/200	1500	2000	200	400
1600X2600X200	A7-AutoVision-26162	4.0+L/200	5.0+L/200	1600	2600	200	400

Other travel specifications can be customized according to customer needs.
