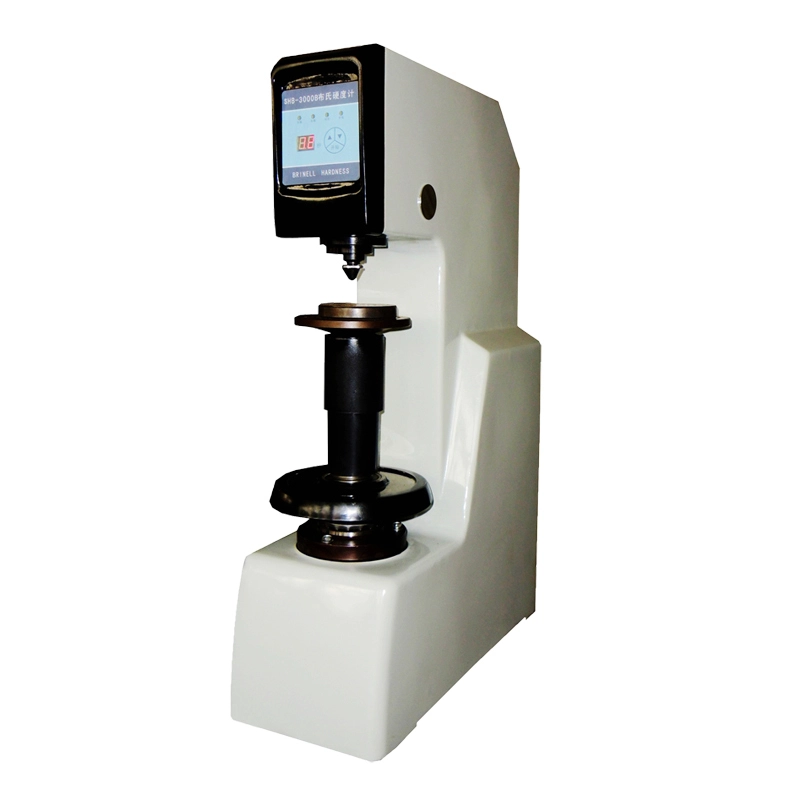

Brinell Hardness Tester SHB-3000BTest Force From 187.5kg to 3000kg

Model:

SHB-3000B

Code#:

831-101

Accuracy:

≤±3.5％

Warranty:

12 month

Delivery Time:

15-30days

Standard:

GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243

Certificate:

Inquiry

Write a Review

Brinell Hardness Tester SHB-3000BTest Force From 187.5kg to 3000kg 2

Product Feature

◆ Electronic communication switch.

◆ Solid construction, good rigidity, precise, reliable, durable, high efficiency.

◆ High precision reading microscope measurement system.

◆ Widely used in quality control, strong adaptability to working environment.

◆ In line with GB/T231.2, ISO 6506-2 ，ASTM E10.

Application

Testing Brinell hardness of ferrous, non-ferrous metal and bearing alloy materials. Wide application range, especially used in precision measurement of parallel plane. What’s more, measurement of curved surface is stable and reliable.

Specification

Name	Brinell Hardness Tester
Model	SHB-3000B
Code#	831-101
Loading Force	Kgf	62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf
	N	612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N
Brinell Range	(8-450) HBS，(8-650) HBW
Hardness Display	Check the table of Brinell Hardness scale
Microscope	Analogue 20x Microscope
Vertical Space	230mm
Horizontal Space	120mm
Dimension	700 x268 x842mm
Gross/Net Weight	240Kg/210Kg
Power Supply	AC 220V/110V±5%，50~60 Hz
Conform Standard	GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243
Accuracy
Hardness Range	Permitted Error	Repeatability
HBW≤ 125	≤± 3.5％	≤ 3.5％
125＜HBW≤225	≤± 2.5％	≤ 3.0％
HBW＞ 225	≤± 2.0％	≤ 2.5％

Software Introduction
