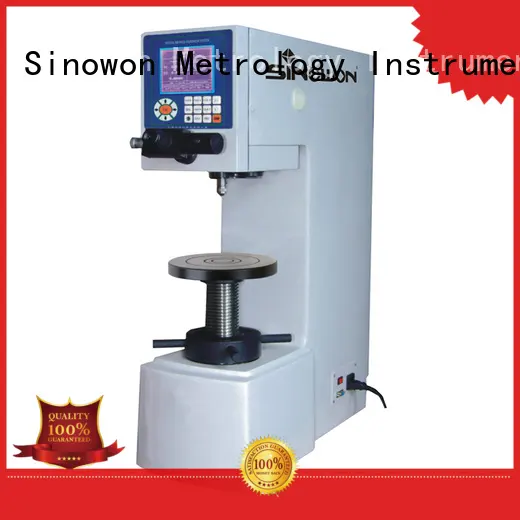

Digital Brinell Hardness Tester SHB-3000C
1. The production of Sinowon brinell testing machine is stringently monitored. The product is CE certified for the European market
2. The product is widely used for various purposes and has a great market potential. The product is designed by professional designers to be user-friendly
3. Products reach the advanced quality level of the industry. It is supported by multiple languages say English, Turkish, and German
4. The product has a complete life cycle due to the strict testing which is in line with the internal and external standards. Thus, the product is durable in use for a long time. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
5. This product is known for its excellent performance and long service life. The product performs well in program control and material use reduction
Product Feature
◆ SHB-3000C is a half automatic and intelligent Brinell hardness testing machine, it adopts the load cell to replace the traditional quality weight, this innovative design makes the instrument more accurate;
◆ SHB-3000C selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading;
◆ SHB-3000C adopts digital Brinell microscopes with adjustable LED illuminator, it doesn’t need the operator to read the detail length of indentation, it only needs operator to aim the D1, D2 diagonal of indentation and press the length key twice above the Microscope, then the built-in computer can computer the Brinell scale and display the final testing result on LCD display automatically;
◆ SHB-3000C supports the hardness conversion , it can use Brinell scale to get conversion scale of HRC, HRB, HRC, HV, etc.
Specification
| Product Name | Digital Brinell Hardness Tester | |
| Model | SHB-3000C | |
| Code# | 831-131 | |
| Loading Force | Kgf | 62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf |
| N | 612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N | |
| Output Data | RS 232/Printer | |
| Brinell Range | (8-650) HBW | |
| Hardness Display | LCD Display | |
| Magnification of Microscope | 20x Digital Microscope | |
| Auto Hardness Conversion | HR, HV, HK, etc | |
| Vertical Space | 225mm | |
| Horizontal Space | 135mm | |
| Dimension | 893 x720 x747mm | |
| Gross/Net Weight | 160Kg/130Kg | |
| Power Supply | AC220V/50Hz;110V/60Hz | |
| Conform Standard | ISO 6506，ASTM E10 – 12，JIS Z2243，GB/T 231 | |
Accuracy | ||
| Hardness Range | Permitted Error | Repeatability |
| HBW≤ 125 | ≤± 3.5％ | ≤ 3.5％ |
| 125＜HBW≤225 | ≤± 2.5％ | ≤ 3.0％ |
| HBW＞ 225 | ≤± 2.0％ | ≤ 2.5％ |
