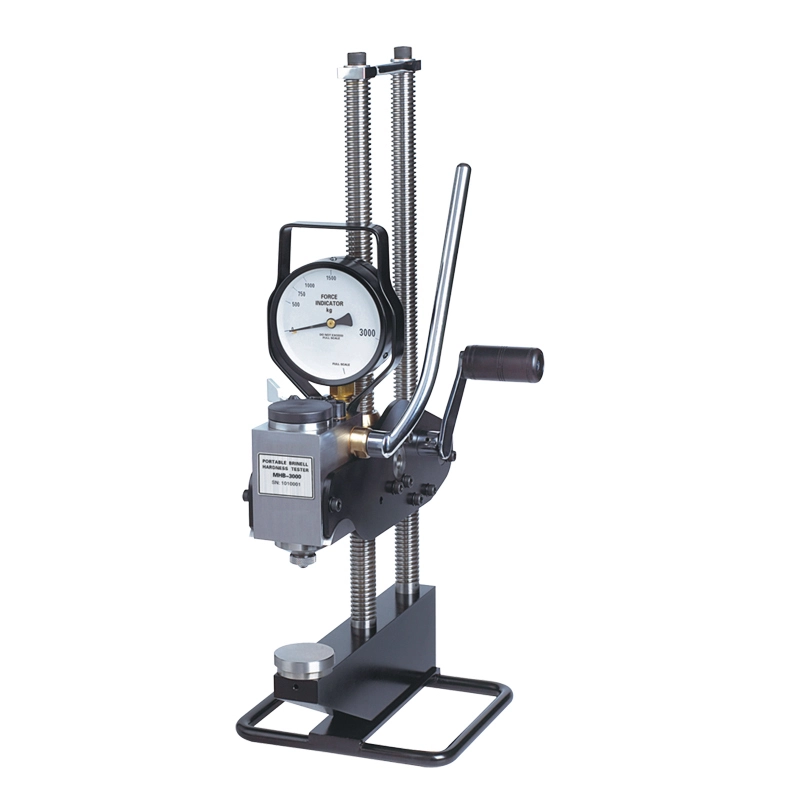

Portable Brinell Durometer MHB-3000
5.0
Model:
MHB-3000
Code#:
832-113
Warranty:
12month
Delivery Time:
15-30days
Standard:
Complies with ISO 6506
Certificate:
CE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
◆ MHB-3000 is a portable Brinell hardness tester. It has a hydraulic system and the test force is applied by means of a handle;
◆ MHB-3000 condition is applying 3000kg test force on a 10mm carbide indenter. It can result in permanent indentations for reinspection. The test condition meets the requirements of ISO 6506 and ASTM E110.
Specification
| Product Name | Portable Brinell Durometer | |
| Model | MHB-3000 | |
| Code# | 832-113 | |
| Testing Force | 3000kg (500kg, 750kg, 1000kg, and 1500kg available) | |
| Indenter | Ф10mm carbide ball indenter (Ф 5mm available) | |
| Testing Range | 8-650HBW (Expendable to 28-650HBW) | |
| Max. Specimen Height | 320mm | |
| Throat Depth | 100mm | |
| Accuracy | Complies with ISO 6506 | |
| Repeatability | Complies with ISO 6506 | |
| Net Weight | 13.8kg | |
