A professional manufacturer of measuring & testing equipment.

Digital Heighten Brinell Hardness Tester QB-500 1
Digital Heighten Brinell Hardness Tester QB-500 2
Digital Heighten Brinell Hardness Tester QB-500 1
Digital Heighten Brinell Hardness Tester QB-500 2

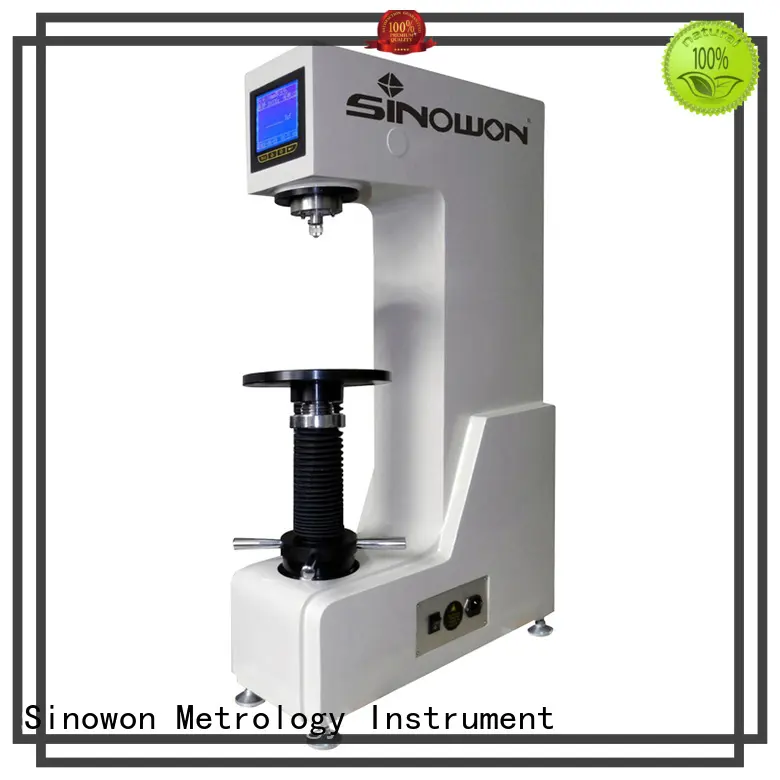

Digital Heighten Brinell Hardness Tester QB-500

Model:
SHB-3000H
Code#:
831-152
Accuracy:
≤± 3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231
Certificate:
CE
Inquiry
Application Scope
Sinowon's hardness testing machines can be applied to different fields and scenes, which enables us to meet different requirements.Sinowon could customize comprehensive and efficient solutions according to customers' different needs.
  • Digital Heighten Brinell Hardness Tester QB-500 3
Enterprise Strength
  • With a sound service system, Sinowon is committed to sincerely providing excellent services including pre-sale, in-sale, and after-sale. We meet users' needs and improve the user experience.
Company Advantages
1. Sinowon brinell hardness tester for sale go through a polishing process once it is processed by CNC machines. It is gauged, calibrated and then polished to a perfect finish in a wide range of colors and designs.
2. It offers the demanded elasticity. It can respond to the pressure, evenly distributing body weight. It then returns to its original shape once the pressure is removed.
3. Integrated QC system of Sinowon Innovation Metrology Manufacture Limited. ensures every project finish as promise.

Digital Heighten Brinell Hardness Tester QB-500 4



Product Feature


 SHB-3000H Innovative closed-loop technology, via a closed-loop control unit with a load cell;

 SHB-3000H Fully automatic test cycle and loading application, greatly improves repeatability of test results;

 SHB-3000H Equipped with special Brinell indention measure system which can measure the Brinell indention accurately, quickly, reliably;

 SHB-3000H The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on LCD;

 SHB-3000H Indenter, loading, dwell time and other test information are showing clearly on LCD;

 SHB-3000H Test load selection is controlled by keyboard and LCD screen;

 SHB-3000H Whole weight of tester is 50% less than the traditional dead weights type tester.



Specification



Name

Digital Heigten Brinell Hardness Tester

Model

SHB-3000H

Code#

831-152

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range(8-450) HBS,(8-650) HBW
Hardness DisplayLCD Display
Output DataRS 232/Printer
Auto Hardness ConversionHR, HV, HK, etc
Magnification of Microscope

20x Digital Microscope

Max. Height Of Specimen

430mm

Instrument Throat

230mm

Dimension

893 x720 x922mm

Gross/Net Weight

170Kg/140Kg

Power Supply

AC220V/50Hz;110V/60Hz

Conform Standard

ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%





Company Features
1. Sinowon enjoys a bright future with reliable quality and brand popularity.
2. High manufacturing depends on our cutting-edge technology.
3. Continuous improvement of service quality has always been the main focus of Sinowon. Check it! The mission of Sinowon is to improve the quality of brinell hardness test experiment with a more competitive price. Check it!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
