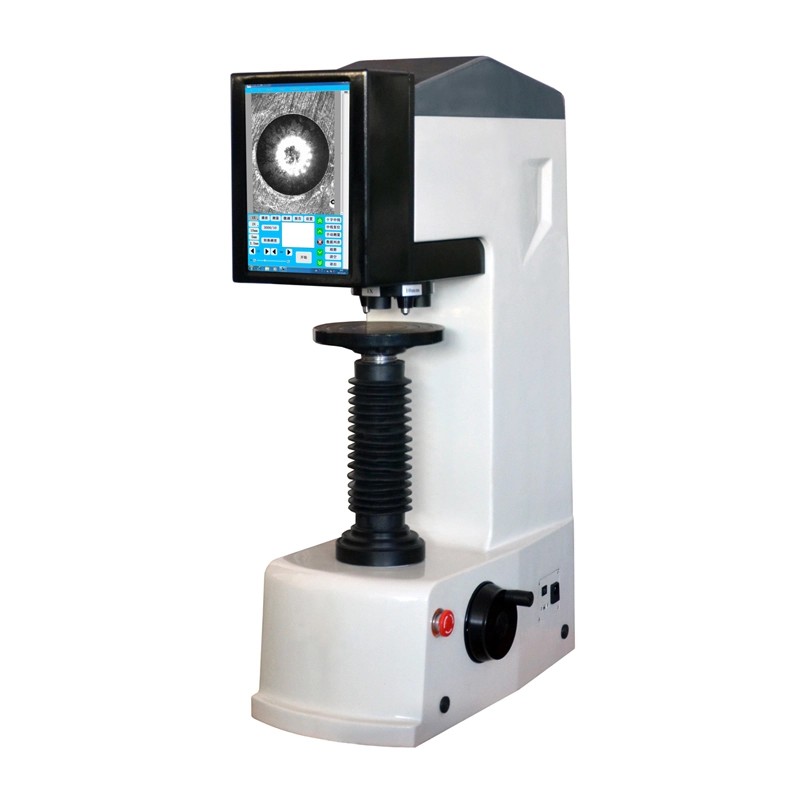

    Fully Automatic Three Indenters Digital Brinell Hardness Tester  AutoBrin AB-3000V 2



    Product Feature


    AutoBrin AB-3000V fully automatic three indenters digital Brinell hardness tester adopts casting shell with strong rigidity and precise structure design, the load of test force is controlled by the sensor, which makes the whole structure compact and loading of test force stable and exact. The test process is controlled by CPU, using automatic switching between the objective and the indenter. The location of switching adopts mechanical and electronic double matching, makes the location precision more high. With built-in panel computer, it makes the parameter setting and results show directly with easy operation, it also avoids the stimulation and visual fatigue of the light source of the eyepiece, and reduces the measuring error. After select the scale, the instrument will automatically select the indenter and objective, the test table rises automatically and then back to the focusing position after loading the test force, it shows the clear image of the indentation and automatically measures, which realizes the fully automation of the Brinell test.

     This instrument has 10 level of test force, 13 Brinell hardness test scales, suitable for different kinds of metal materials;

     With three indenters and two objectives, no need to change the indenters when testing different samples; with rigorous optical structure and high magnification, it makes the indentation observed clearly;

     According to the selected scale, with automatic shifting the instrument will automatically select the corresponding indenter and objective for measurement;

     The automatic lifting test table adopts precise structure with high stability, it automatically rises when start measuring, and then back to the focusing position for measuring after loading the test force, which realizes the one key automation;

     It adopts the integrated design of hardness tester and panel computer; With Windows 7 operating system, it has all functions of computer;

     With CCD image measuring system, touch screen operating and displaying, it can preset the test force dwell time, adjust intensity of light source, show the indentation length, hardness value, test range and test number etc.;

     The software has the function of calibration, manual fine tuning and set up and down limit etc., which ensures the accuracy of measurement;

     Conversion scales of different kinds of hardness;

     Test result can be saved as WORD or EXCEL report and can be printed out;

     With USB port, VGA interface and network interface, it can connect to the internet and other devices for more optional functions.


    Application Range


    Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.


    Specification




    Model

    AutoBrin AB-3000V

    Code#

    831-160

    Test Force

    kgf

    62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf,   500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf

    N

    612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N,   7355N, 9807N, 14710N, 29420N

    Test Range

    3.18653HBW

    Loading Method

    Automatic (Loading/Dwell/Unloading)

    Hardness Reading

    12 inch Touch Screen, Automatic Measuring

    Micro Computer

    CPU: Intel I5Memory: 8GSSD: 128G

    CCD Pixel

    3.00 Million

    Conversion Scale

    HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK,   HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBS, HBW

    Data Output

    3×USB, 1×VGA1×LAN

    Turret

    Automatic Recognition and Shifting

    (Three Indenters, Two Objectives)

    Objective

    1×2×

    Effective Field of View

    1×6mm2×3mm

    Min. Measuring Unit

    1×4.6μm2×2.3μm

    Dwell Time

    0~95s

    Max. Sample Height

    260mm

    Throat Depth

    150mm

    Power Supply

    AC220V50Hz

    Execute Standard

    ISO 6506ASTM E10JIS Z2243GB/T 231.2

    Dimension

    690×360×1000mm

    Packing Dimension: 830×490×1300mm

    Weight

    Net Weight: 200kgGross Weight:   230kg
