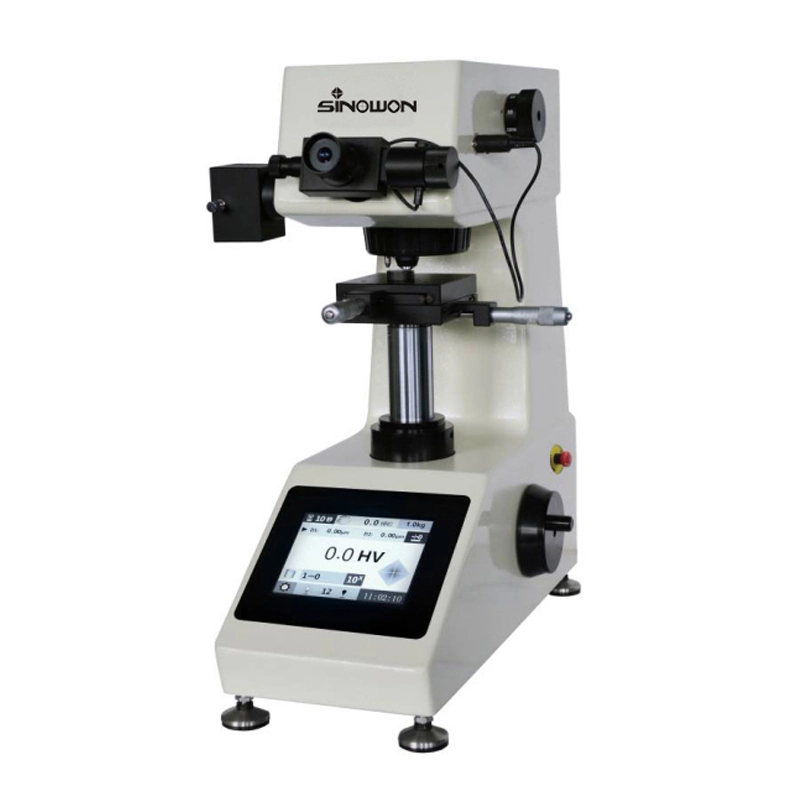

Digital Micro Vickers Hardness Tester MHV-2000A 1
Digital Micro Vickers Hardness Tester MHV-2000A 1

Digital Micro Vickers Hardness Tester MHV-2000A

    oops...!

    no product data.

    Go to homepage

    Digital Micro Vickers Hardness Tester MHV-2000A 2



    Application Range


    The micro hardness testing of materials allows for the determination of the hardness of small or thin specimens and small areas of larger specimens, Micro hardness testing is commonly used to determine characteristics of thin sheets, foils, fine wire, epoxies, paints, etc. and is often employed in R&D applications.

    Micro hardness is especially useful in determining hardness variations, caused by hardening, quenching, plating, fabrication, welding or annealing, bonding, etc. Micro hardness testing can be accurately employed using loads as slight as 10 grams, somewhat less and considerably more in certain situation.

    ●Optional Vickers hardness testing software is available for CDH (Carburized layer depth) measurement.


    Specification



    Commodity

    Digital Micro Vickers Hardness Tester

    Model

    MHV-2000A

    Code#

    823-101Z

    Hardness Scale

    HV(HK Optional Available)

    Hardness Conversion

    HV, HR, HRC, HB, HK

    Loading Force

    N

    0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80, 19.6

    gf

    10, 25, 50, 100, 200, 300, 500, 1000, 2000

    Turret Switch

    Auto-Turret for Indenter and Objective

    Indentation Measurement

    Digital Micrometer-Sensor Eyepiece

    (To measure the indention by optional Vickers Testing Software system)

    Loading Control

    Automatic (Loading, Dwell, Unloading)

    Magnification of Microscope

    Observation:10x/40x; Measurement:10x/40x

    Magnification on of Eyepiece

    10x Digital Micrometer Eyepiece

    Dwell Time

    Adjustable 5~60s

    Testing Range

    1HV~3000HV

    Analogue X-Y Anvil

    Size:100x100mm; Travel:25 x25mm; Resolution: 0.25um

    Optical Channel

    Two-Channel: Eyepiece/camera switchable

    Illumination

    Adjustable LED Light-source

    Max. Height of Specimen

    90mm

    Instrument Throat

    120mm

    Operating Temperature

    23±5℃; <65%

    Power Supply

    AC220V/50Hz; AC110V/60Hz

    Dimension (LxWxH)

    530×290×490mm

    Gross/Net Weight

    50Kg/40Kg
