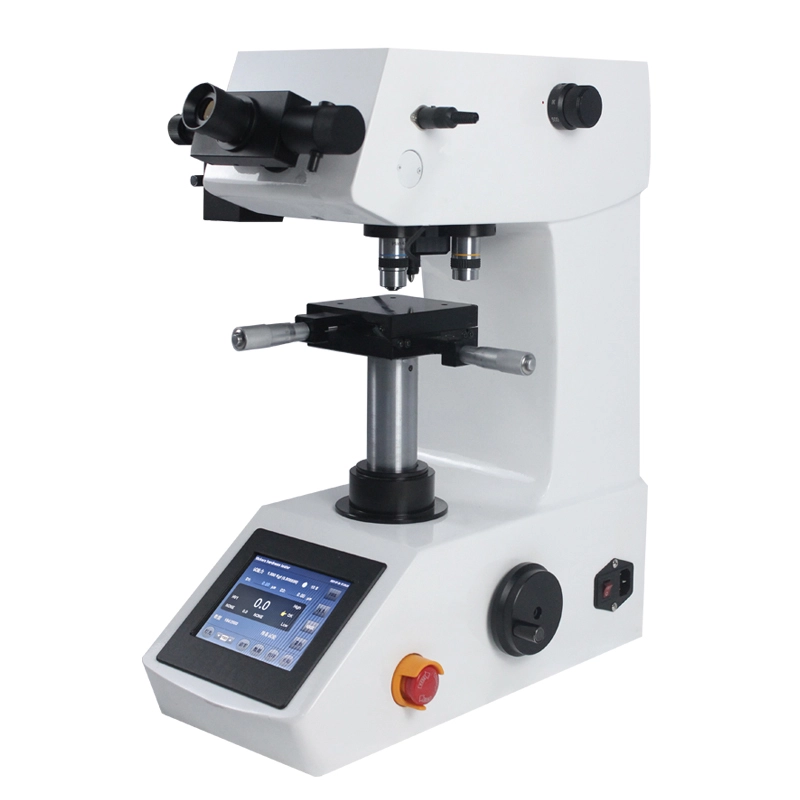

MicroVicky VH1010 / VM1010 Series Digital Micro Vickers Hardness Tester

Model:

MicroVicky VH1010 / VM1010 Series

Code#:

823-161 / 823-102

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

MicroVicky VH1010 / VM1010 Series Digital Micro Vickers Hardness Tester 9

Note：MicroVicky VH1010

MicroVicky VH1010 / VM1010 Series Digital Micro Vickers Hardness Tester 10

Note：MicroVicky VM1010

Product Characteristics

◆Color touch screen. Auto hardness conversion to other scales.

◆Gradient test can be performed, and the depth of hardened layer can be automatically calculated.

◆With data viewing functions, data can be printed via Bluetooth.

◆Automatic loading, dwelling, and unloading during the testing process, simple operation, no human operating error.

◆Upgraded manual lifting system on the side of the worm gear, and the screw has no gap.

◆Upgraded optical system with clear image of indentation, and improve the accuracy of the measurement.

Product Application

◆Carburized layer, ceramics, steel, non-ferrous metals, thin plates, metal flakes, electroplated layers, small specimens.

◆Gradient measurement of nitride layer, forest carbon layer and quench hardened layer.

Technical Specification

Product Name	Digital Micro Vickers Hardness Tester
Model	MicroVicky VM1010	MicroVicky VM1010A	MicroVicky VH1010	MicroVicky VH1010A
Code#	823-102	823-102A	823-162	823-162A
Numerical input method	Manual	Manual	Auto	Auto
Lens and Indenter Switch	Manual Turret	Auto Turret	Manual Turret	Auto Turret
Loading Force	N: 0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80 gf: 10、25、50、100、200、300、500、1000
Dwell Time	1~60 adjustable
Loading Control	Automatic
Magnification	100x/40x(500x customizable)
Minimum measurement unit	0.025 μm
Analogue X-Y Anvil	Size：100x100mm； Travel：25mmx25mm
Max. Height of Specimen	90mm
Instrument Throat	120mm
Dimension(LxWxH)	425x245x530mm
Packing Dimension	500x490x720mm
Net weight	55Kg
Gross Weight	70Kg
Power Supply	AC 220V,50/60HZ
Execution Standard	ISO 6507，ASTM E92，JIS Z2244，GB/T 4340.2

Technical Specification

Product Name	Code#	Product Name	Code#	Product Name	Code#
Vickers Indenter	823-401	10x Eyepiece	823-301	Anti-dust Cover	823-901
Vickers Hardness Block (700~800)HV1	823-611	Objectives 10x	823-311	Accessories Box	823-801
Vickers Hardness Block (400~500)HV0.2	823-621	Objectives 40x	823-341	Power Cable	823-761
Flat Clamp	823-711	X-Y Anvil	823-701	Filament Clamp	823-761
Adjusting screw	------	Screwer Driver	823-951	Thin-piece Clamp	823-751
Small Spirit Level	823-931	Warranty card/certificate	MicroVicky VH1010	Instrument Manual/Packing List	MicroVicky VH1010

Optional Delivery

Product Name	Code#	Product Name	Code#	Product Name	Code#
Video Measuring Eyepice	821-811	Irregular clamping table	823-741	Vickers Measuring Software	iVicky 2.0
Digital Micrometer Head	823-719	LCD Monitor	823-821	USB CMOS Camera	823-471
Vickers Measuring Pad	VicPad	Tablet adapter	------	Camera adapter	823-361
