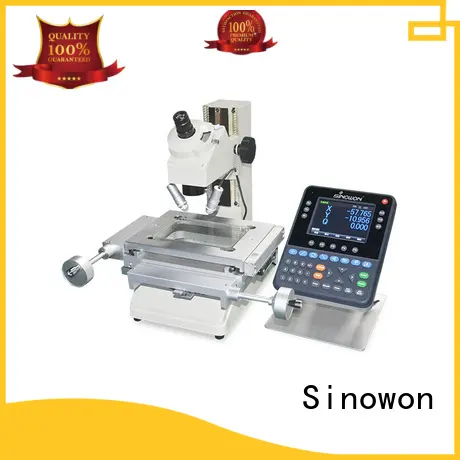

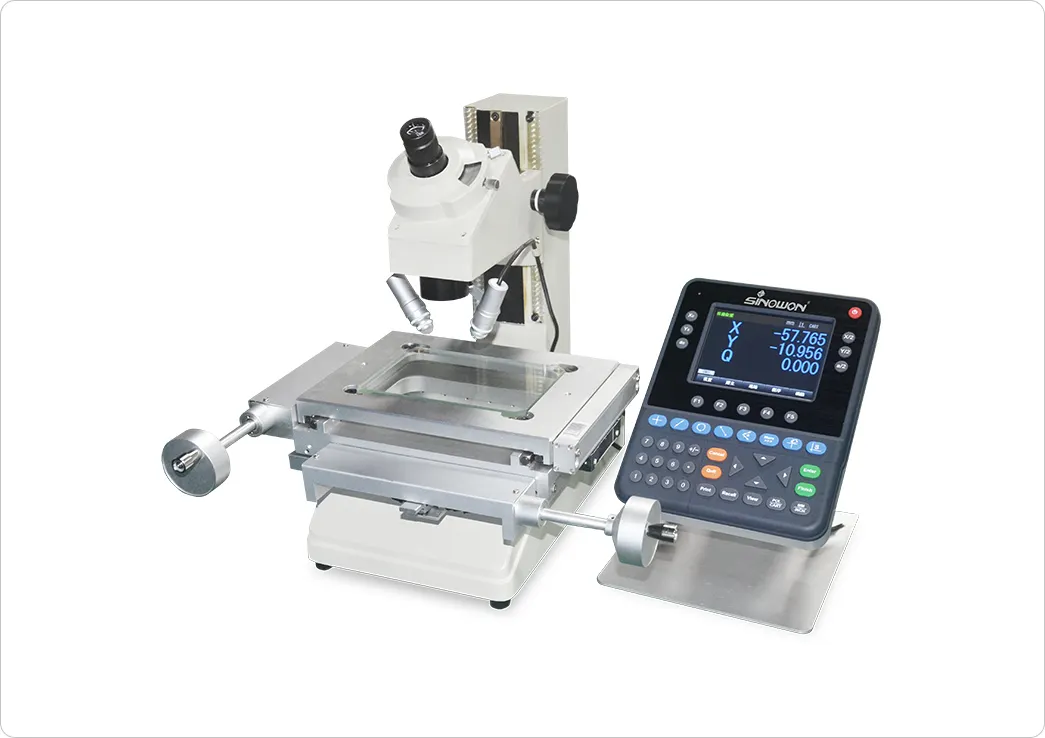

Digital Toolmakers Microscope STM-1050
Model:
STM-1050
Code#:
531-130
Accuracy:
≤5um
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. Sinowon Toolmakers Microscope is strictly assessed after production. Many factors include part tolerances, size limitations, materials properties, mechanical analysis, and function realization have been analyzed. Imported materials and accessories are used in product manufacturing
2. Sinowon Innovation Metrology Manufacture Limited. combines commercialism and innovation on Toolmakers Microscope . Many international famous manufacturers choose this product for its premium quality
3. This product is used for a wide variety of purposes, including recreation, exploration, military encampment, and public gatherings such as circuses, religious services, and theatrical performances. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
![Digital Toolmakers Microscope STM-1050 8]()
![Digital Toolmakers Microscope STM-1050 9]()
![Digital Toolmakers Microscope STM-1050 10]()
![Digital Toolmakers Microscope STM-1050 11]()
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. uses the most advanced technology to manufacture Toolmakers Microscope .
2. In order to better ensure the ideal quality of measuring microscope , Sinowon has been continuously improving the technology.
3. Sinowon Innovation Metrology Manufacture Limited. will make persistent efforts on product’s quality and cost saving. Call!
1. Sinowon Toolmakers Microscope is strictly assessed after production. Many factors include part tolerances, size limitations, materials properties, mechanical analysis, and function realization have been analyzed. Imported materials and accessories are used in product manufacturing
2. Sinowon Innovation Metrology Manufacture Limited. combines commercialism and innovation on Toolmakers Microscope . Many international famous manufacturers choose this product for its premium quality
3. This product is used for a wide variety of purposes, including recreation, exploration, military encampment, and public gatherings such as circuses, religious services, and theatrical performances. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
Application:
It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The measuring profile projector can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.
Product Feature
◆ Precision working stage travel:100 x50mm;
◆ High precision linear scale : 0.5um;
◆ Color screen multifunctional digital readout : DP400;
◆ Optical objective with adjustable LED ring reflector illumination;
◆ With high accuracy and high stability;
Specification
| Model | STM-1050 |
| Code# | 531-130 |
| Metall Stage Size | 252×252mm |

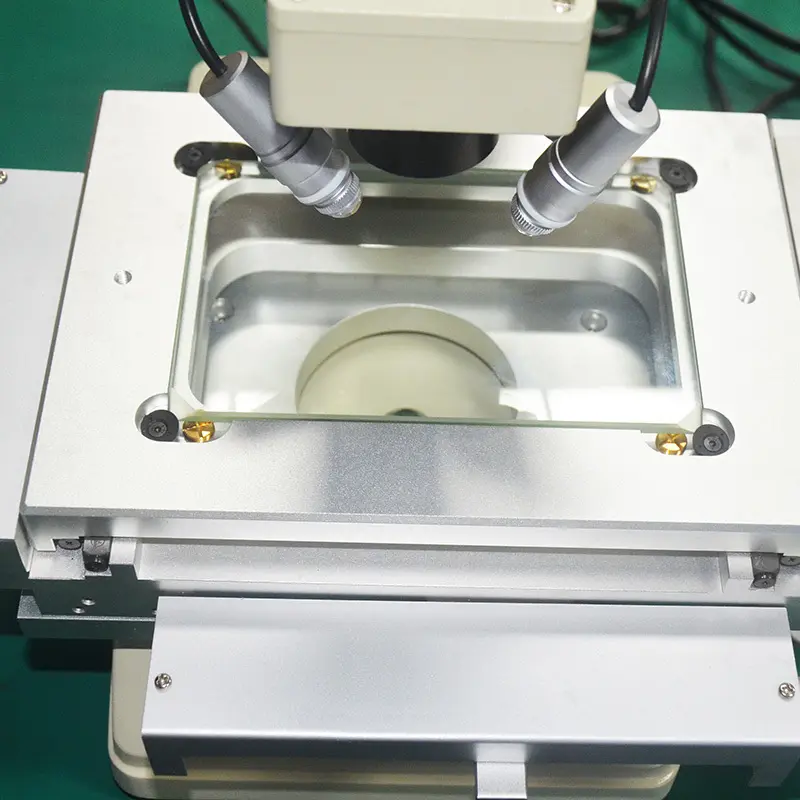

| Glass Stage Size | 196×96mm |
| Resolution | 0.5um |
| Measuring Accuracy | ≤5um |
| Measuring Device | Digital Readout DP400 |
| Max.Height of Specimen | 115mm |
| Max.Weight of Specimen | 5Kg |
| Max.Magnification | 150×（Φ0.13mm）（15×Eyepiece+10×Objective） |
| Min.Magnification | 20×（Φ6.5mm）（10×Eyepiece+2×Objective） |
| Standard Magnification | 30×（Φ0.13mm）（15×Eyepiece+2×Objective） |
| Standard Working Distance | 67mm |
| Optical Tube | Monocular with 30°depression angle |
| 15×Eyepiece with Crossline Reticle | |
| Eyepiece | WF15/13 |
| Objective | Magnification:2× |
| Working Distance:2.638"(67mm) | |

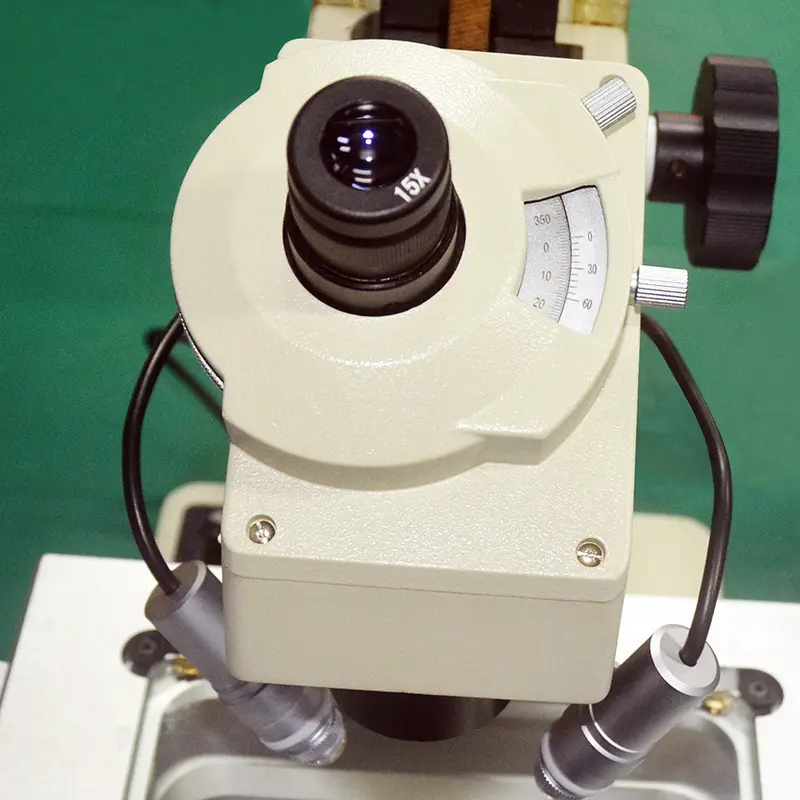

| Eyepiece Protractor Range | 360° |
| Eyepiece Protractor Graduation | 1° |
| Vernier Angle Reading | 6’ |
| Contour Illumination | Light source:Tungsten bulb(24V;2W) |

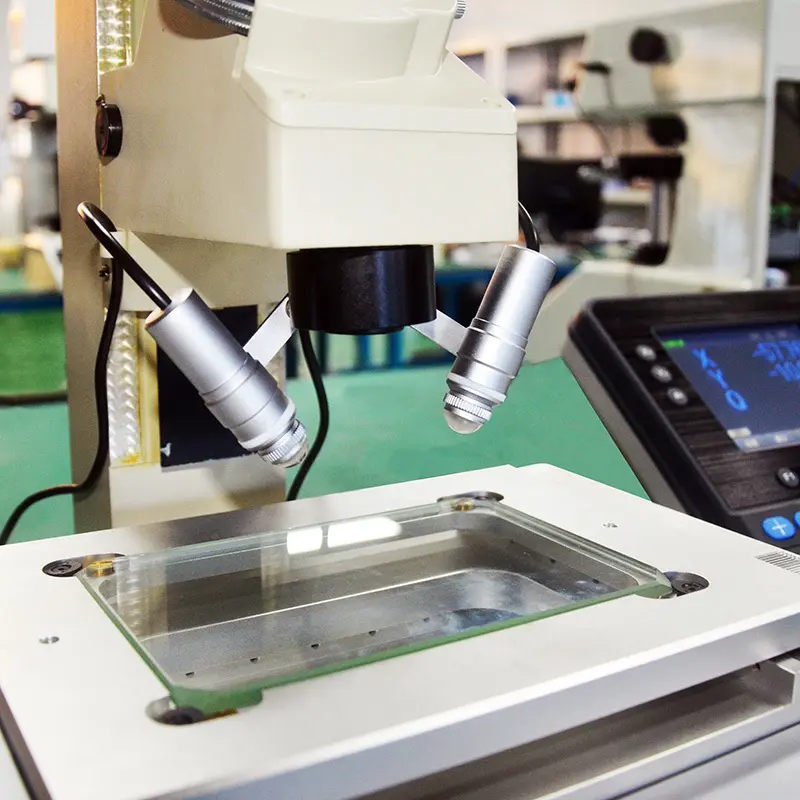

| Surface Illumination | Ring LED illumination brightness adjustable |

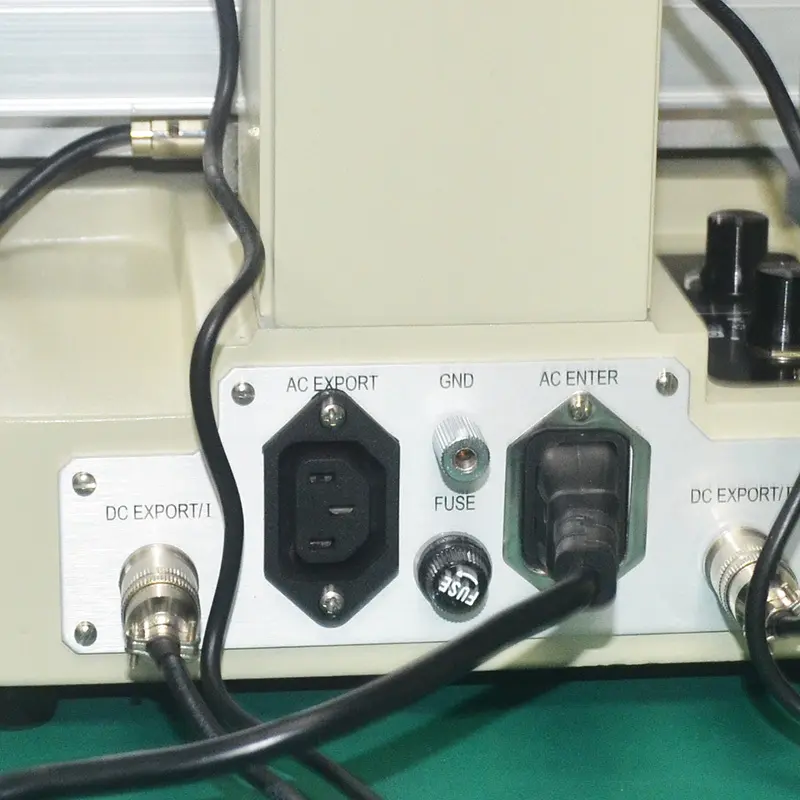

| Power Supply | AC110V/60Hz;220V/50Hz |
| Dimension(D×W×H) | 415×315×420mm |
| Packing Dimension(D×W×H) | 210×333×391mm |
| Gross/Net Weight | 30Kg/25Kg |
Standard Delivery:
| Accessory Name | Code# | Accessory Name | Code# | Accessory Name | Code# |
| 15XEyepiece | 531-522 | 2X Objective | 531-602 | Ring Illumination | 413-146 |
| Linear Scale | 581-201 | Power Cable | 581-921 | Operation Manual | STM-1050 |
