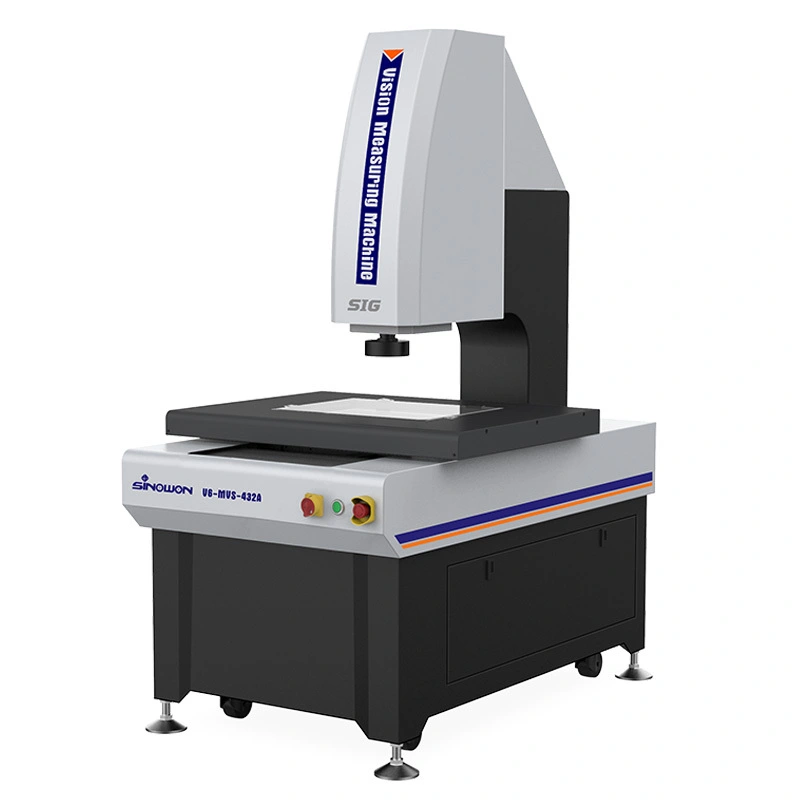

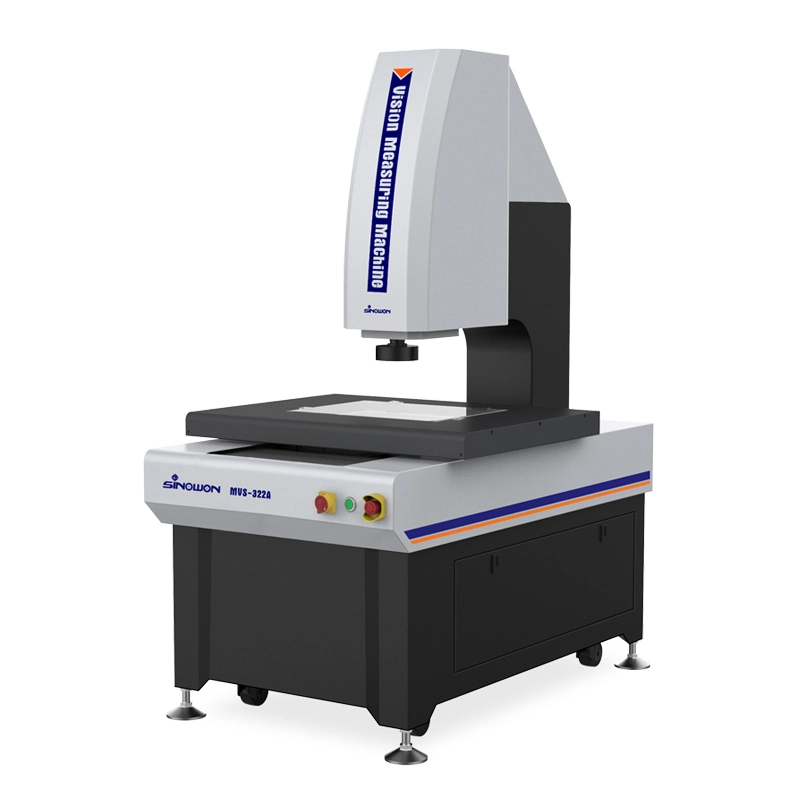

V6-MVS Series Cantilever Automatic Vision Measuring Machine 1

V6-MVS Series Cantilever Automatic Vision Measuring Machine 2

V6-MVS Series Cantilever Automatic Vision Measuring Machine 3

V6-MVS Series Cantilever Automatic Vision Measuring Machine 4

V6-MVS Series Cantilever Automatic Vision Measuring Machine

Model:

V6-MVS-322A

Code#:

523-360A

Accuracy:

XY-axis：≤2.2+L/200(um) Z-axis：≤5+L/200(um)

Warranty:

12 month

Delivery Time:

15-30days

Standard:

GBT 24762' ISO30160

Certificate:

Gost CE

Inquiry

Write a Review

V6-MVS Series Cantilever Automatic Vision Measuring Machine 5

V6-MVS series is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with three axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.

Product Characteristics

XYZ three-axis CNC automatic precision control, precise positioning;
Indian Marble base and pillar, good stability;
Precision linear guides, grinding-grade ball screws and AC servo motors, etc., ensure the accuracy and stability of the motion system;
0.5μm high-precision grating ruler to ensure the positioning accuracy and measurement accuracy of the system;
High-resolution digital camera to meet the needs of clear observation and precise measurement;
8.3X high-definition optical lens, accurate zoom, one-time pixel correction;
Program-controlled 5-ring 8-area LED surface illumination and parallel LED contour illumination system intelligently realize 256-level brightness adjustment;
iMeasuring series automatic Vision measurement software, powerful and easy to operate.

Technical Specification

Commodity			High Precision Cantilever Automatic Vision Measuring Machine V6-MVS Series
Model			V6-MVS-322	V6-MVS-432	V6-MVS-542
X/Y Axis Travel			(300*200)mm	(400*300)mm	(500*400)mm
Z Axis Travel			200mm
X/Y/Z axis Linear Scale			European Linear Scale Resolution: 0.5um
Guidance Mode			P-Class Precision linear guide, double-track double slider guide.
Operation Mode			Joystick controller, Mouse operation, automatic detection program
Accuracy*	E1x,y		2.0+L/200(um)
	E1xy		2.5+L/200(um)
	E1z		4.0+L/200(um)
Repeatability			2um
Illumination System		Contour	LED parallel contour illumination
		Contour	0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Video System**			1/2.9"/1.6Mpixel High Resolution Digital Camera
			8.3X Manual Electronic Feedback Lens；Optical Magnification: 0.6X~5.0X; Video Magnification: 20X~170X (21.5” monitor)
Measuring Software			iMeasuring
Operating System			Support WIN10/11-32/64 bit operating system
Language			English, Simplified Chinese, traditional Chinese, other languages can be added
Working Environment			Temperature 20℃±2℃, temperature change<1℃/Hr; humidity 30%~80%RH; vibration<0.02g's, ≤15Hz.
Power Supply			AC220V/50Hz; 110V/60Hz
Load Capacity			25Kg~50Kg
Dimension(WxDxH)			(11467201664)mm	(13318401664)mm	(12579201640)mm
Packing Size(WxDxH)			(12909701920)mm	(139010601940)mm	(145011701900)mm
Net Weight			380Kg	450Kg	600Kg

Product Configuration Model Description (Example with V6-MVS-322):

Product Category	2.5D	3D	2.5D	3D
Commodity	2.5D Automatic Vision Measuring Machine	3D Automatic Contact & Vision Measuring Machine	2.5D Automatic Laser-Scan & Vision Measuring Machine	3D Automatic Multisensory Measuring Machine
Model	V6-MVS-322A	V6-MVS-322B	V6-MVS-322C	V6-MVS-322D
Type	A	B	C	D
Significance	Optical Zoom-lens Sensor	Zoom-lens Sensor and Contact Probe Sensor	Zoom-lens Sensor and Lazer Sensor	Zoom-lens Sensor, Contact Probe Sensor and Lazer Sensor
Contact Probe	Without	MCP-Kit1	Without	MCP-Kit1
Lazer Module	Without	Without	Omron Laser	Omron Laser
Software Version	iMeasuring4.1	iMeasuring4.2	iMeasuring5.0	iMeasuring5.1

Cantilever Automatic Vision Measuring Machine Models and Specifications:

Model	Code#	Model	Code#	Model	Code#
V6-MVS-322A	522-120G	V6-MVS-432A	522-120H	V6-MVS-542A	522-120J
V6-MVS-322B	522-220G	V6-MVS-432B	522-220H	V6-MVS-542B	522-220J
V6-MVS-322C	522-320G	V6-MVS-432C	522-320H	V6-MVS-542C	522-320J
V6-MVS-322D	522-420G	V6-MVS-432D	522-420H	V6-MVS-542D	522-420J

Cantilever Automatic Vision Measuring Machine Travel Guide Table:

Travel	Model	Accuracy		Main Difference		X Axis Travel mm	Y Axis Travel mm	Z Axis Standard Travel mm	Z Aixs Maximum custom Travel mm
		E1x,y	E1z	Grating Scale	Zoom Lens
300x200x200	V6-MVS-322	2.0+L/200	5.0+L/200	0.5um Glass grating ruler	Manual Electronic Feedback Lens	300mm	200mm	200mm	250mm
	V7-MVA-322	1.8+L/200	4.0+L/200	0.1um Patch metal grating ruler	Motorized Zoom Lens with Coaxial Illumination
400x300x200	V6-MVS-432	2.0+L/200	5.0+L/200	0.5um Glass grating ruler	Manual Electronic Feedback Lens	400mm	300mm	200mm	300mm
	V7-MVA-432	1.8+L/200	4.0+L/200	0.1um Patch metal grating ruler	Motorized Zoom Lens with Coaxial Illumination
500x400x200	V6-MVS-542	2.0+L/200	5.0+L/200	0.5umGlass grating ruler	Manual Electronic Feedback Lens	500mm	400mm	200mm	400mm
	V7-MVA-542	1.8+L/200	4.0+L/200	0.1um Patch metal grating ruler	Motorized Zoom Lens with Coaxial Illumination

Product Details

V6-MVS Series Cantilever Automatic Vision Measuring Machine 6

V6-MVS Series Cantilever Automatic Vision Measuring Machine 7

Software Introduction
