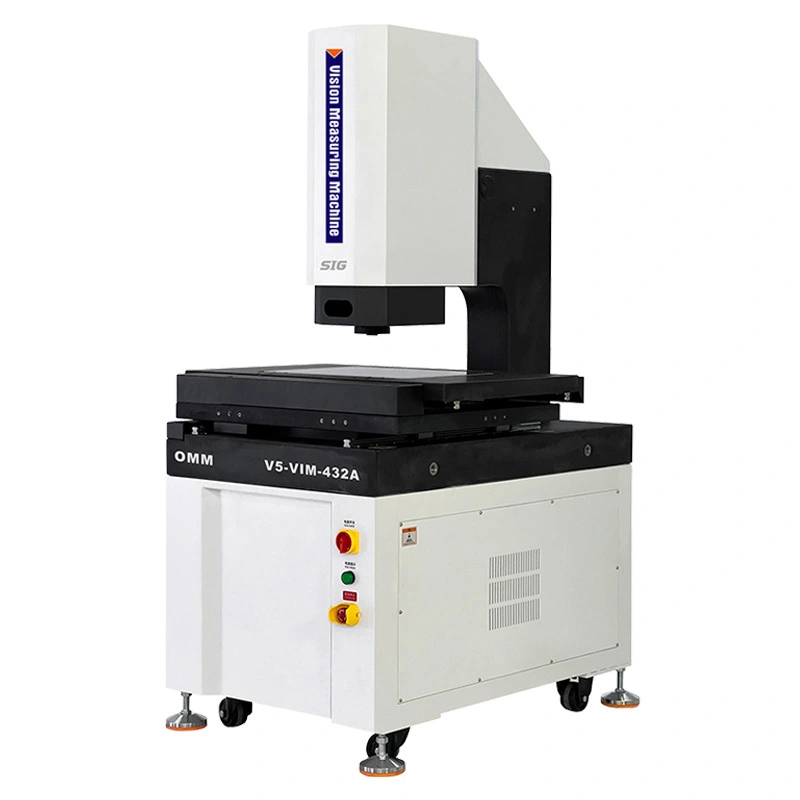

Cantilever Automatic Vision Measuring Machine V5 Series
Product Characteristic
- XYZ three-axis CNC automatic precision control, precise positioning;
- Granite base and pillar, good stability；
- Precision linear guides, grinding-grade ball screws and AC servo motors, etc., ensure the accuracy and stability of the motion system;
- 0.5μm high-precision grating ruler to ensure the positioning accuracy and measurement accuracy of the system;
- High-resolution digital camera to meet the needs of clear observation and precise measurement；
- 6.5X high-definition optical lens, accurate zoom, one-time pixel correction；
- Program-controlled 5-ring 8-area LED surface illumination and parallel LED contour illumination system intelligently realize 256-level brightness adjustment;
- The automatic Vision measurement software iMeasuring with powerful functions and easy to operate.
Specifications:
|
Commodity |
Automatic Video Measuring System V5 Series |
||||
|
Model |
V5-322 |
V5-432 |
V5-542 |
V5-652 |
|
|
X/Y axis travel (mm) |
300*200 |
400*300 |
500*400 |
600*500 |
|
|
E1x, y（um） |
2+L/200 |
||||
|
E2xy（um） |
3+L/200 |
||||
|
E1z single point accuracy (um) |
4+L/200 |
||||
|
Z-axis travel (mm) |
200 (optional heightening to 300mm/400mm) |
||||
|
Resolution of Scales |
High-precision glass grating ruler with resolution of 0.5um |
||||
|
Worktable material |
Granite |
||||
|
Guidance Mode |
High-precision Linear Guide, Double-track Double Slider Guide |
||||
|
Operation Mode |
Joystick Controller, Mouse Operation, Automatic Detection Program |
||||
|
Mode of operation |
Remote control handle, mouse operation, programming automatic detection |
||||
|
Illumination System |
Contour |
LED Parallel Contour Illumination |
|||
|
Surface |
0~255 Stepless Adjustable 8 Division LED Surface Illumination |
||||
|
Coaxial |
Optional High-brightness Point LED Light |
||||
|
Video system |
1/2.9 "High Resolution Digital Camera |
||||
|
6.5X Electronic Feedback Zoom Lens Zoom745EF, Optical Magnification：0.7X-4.5X，Video Magnification：28X~180X |
|||||
|
Measuring software |
iMeasuring |
||||
|
Operating system |
Support WIN10/11-32/64 bit operating system. |
||||
|
Language |
English, Simplified Chinese, Traditional Chinese, other language versions can be added. |
||||
|
Working environment |
The temperature is 20℃ 2℃, and the temperature change is less than 1℃/hr; Humidity 30% ~ 80% RH; Vibration < 0.02g's, ≤15Hz. |
||||
|
Power Supply |
220V/50Hz/10A |
||||
|
Machine bearing |
0~30Kg (ultimate bearing capacity: 50Kg) |
||||
|
Dimension (WxDxH)mm |
789*636*1640 |
1033*820*1685 |
1213*940*1705 |
1453*1120*1725 |
|
|
Net Weight (Kg) |
396 |
466 |
560 |
796 |
|
|
Optional configuration |
Electronic Feedback Zoom Lens with Coaxial Ligh, electric zoom lens, contact probe, white light spot spectrum, 3D camera, wireless Bluetooth remote control. |
||||
Note：
L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.
Magnification is approximate value, it is related to the dimension of monitor and resolution.
0.5X or 2X objective is optional available according to the needs.
Product Configuration Model Description（Example with V5-432）：
|
Product Category |
2.5D |
3D |
2.5D |
3D |
|
Commodity |
2.5D Automatic Vision Measuring Machine |
3D Automatic Contact & Vision Measuring Machine |
2.5D Automatic Laser-Scan & Vision Measuring Machine |
3D Automatic Multisensory Measuring Machine |
|
Model |
V5-432A |
V5-432B |
V5-432C |
V5-432D |
|
Type |
A |
B |
C |
D |
|
Significance |
Optical Zoom-lens Sensor |
Zoom-lens Sensor and Contact Probe Sensor |
Zoom-lens Sensor and Lazer Sensor |
Zoom-lens Sensor, Contact Probe Sensor and Lazer Sensor |
|
Contact Probe |
Without |
MCP-Kit1 |
Without |
MCP-Kit1 |
|
Lazer Module |
Without |
Without |
Omron Laser |
Omron Laser |
|
Software Version |
iMeasuring4.1 |
iMeasuring4.2 |
iMeasuring5.0 |
iMeasuring5.1 |
Cantilever Automatic Vision Measuring Machine Models and Specifications：
|
Model |
Code# |
Model |
Code# |
Model |
Code# |
Model |
Code# |
|
V5-322A |
527-120G |
V5-432A |
527-120H |
V5-542A |
527-120J |
V5-652A |
527-120K |
|
V5-322B |
527-220G |
V5-432B |
527-220H |
V5-542B |
527-220J |
V5-652B |
527-220K |
|
V5-322C |
527-320G |
V5-432C |
527-320H |
V5-542C |
527-320J |
V5-652C |
527-320K |
|
V5-322D |
527-420G |
V5-432D |
527-420H |
V5-542D |
527-420J |
V5-652D |
527-420K |
Cantilever Automatic Vision Measuring Machine V5 Series Measuring Space:
|
Travel |
Model |
Accuracy |
X Axis Travel mm |
Y Axis Travel mm |
Z Axis Travel mm |
Z-axis Customized Travel mm |
|
|
E1x,y |
E1z |
||||||
|
300x200x200 |
V5-322 |
2+L/200 |
4.0+L/200 |
300mm |
200mm |
200mm |
250mm |
|
400x300x200 |
V5-432 |
2+L/200 |
4.0+L/200 |
400mm |
300mm |
200mm |
300mm |
|
500x400x200 |
V5-542 |
2+L/200 |
4.0+L/200 |
500mm |
400mm |
200mm |
400mm |
|
600x500x200 |
V5-652 |
2+L/200 |
4.0+L/200 |
600mm |
400mm |
200mm |
400mm |
- Other traveling specifications can be customized.
