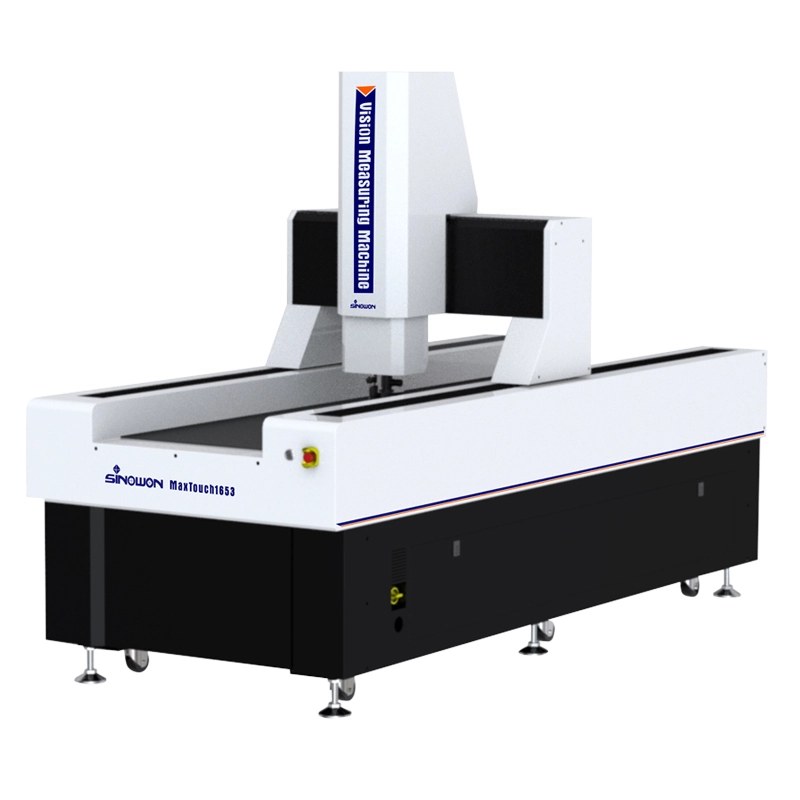

G6-MaxTouch1653 Series Heavy-duty Vision Measuring Machine

Model:

G6-MaxTouch1653

Code#:

525-180X

Accuracy:

XY-axis：≤3.0+L/100(um);Z-axis：≤4+L/100(um)

Warranty:

12 month

Delivery Time:

15-30days

Standard:

GBT 24762' ISO30160

Certificate:

Gost CE

Inquiry

Write a Review

G6-MaxTouch1653 Series Heavy-duty Vision Measuring Machine 2

The G6-MaxVision series is a mobile bridge-type fully automatic vision measuring machine designed for high-precision and large-size measurements. It adopts a mobile bridge-type structure, where the measured object remains stationary to ensure measurement accuracy and stability. It is suitable for measuring industries such as electronics, medical devices, LCDs, aerospace, and aviation.

Product Characteristics

◆ Moving Bridge type structure, measuring workpiece is fixed;

◆ Four-axis CNC fully auto close loop control, auto measurement;

◆ Indian Marble base and pillar, good stability;

◆ Imported RSF linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;

◆ Imported HD color camera to meet the needs of clear observation and accurate measurement;

◆ 6.5x high-resolution motorized coaxial zoom lens, accurate doubling and one times pixel correction only needed;

◆ With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatically control the brightness in the 8-division;

◆ Powerful function and easy operation iMeasuring Software to enhance quality control;

◆ Optional MCP Probe and Laser Senser Module. Machines can be customized according to customers’requirements.

Technical Specification

Commodity			Heavy-load Optical Vision and Probing Coordiante Measuring Machine G6-MaxTouch Series
Model			G6-MaxTouch-553	G6-MaxTouch-1653	G6-MaxTouch-10103
X/Y Axis Travel			(500*500)mm	(500*1600)mm	(1000*1000)mm
Z Axis Travel			300mm
X/Y/Z Axis Linear Scale			Open Grating Ruler, resolution: 0.1um
Guidance Mode			Precision linear guide rail
Operation Mode			Joystick controller, Mouse operation, automatic detection program.
Accuracy*		E1x,y	3.0+L/200(um)
		E1xy	4.0+L/200(um)
		E1z	4.0+L/200(um)
Repeatability			5um
Illumination System	Contour		LED parallel contour illumination
			0~255 Stepless adjustable 5-ring 8-division LED surface illumination
	Surface
Video System**			1/1.8" High-Definition Digital Color Camera
			6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor)
Measuring Software			iMeasuring
Operating System			Support WIN10/11-32/64 bit Operating System
Language			English, Simplified Chinese, traditional Chinese, other languages can be added
Working Environment			Temperature 20℃±2℃，Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz
Power Supply			AC220V/50Hz; 110V/60Hz
Dimension(WxDxH)			(114615681874)mm	(114627591874)mm	(164621791874)mm
Gross/Net Weight			2000/1500Kg	2850/2500Kg	2850/2500Kg

Note：

L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

Magnification is approximate value, it is related to the dimension of monitor and resolution.

Field of view(mm) = (diagonal*Horizontal*Vertical)

Product Configuration Model Description（Example with G6-MaxTouch553）：

Product Category	2.5D	3D	2.5D	3D
Commodity	2.5D High Load Bearing Automatic Vision Measuring Machine	3D High Load Bearing Automatic Vision Measuring Machine	2.5D Laser High Load-Bearing Automatic Vision Measuring Machine	3D Composite Multi-probe High Load-Bearing Automatic Vision Measuring Machine
Model	G6-MaxTouch-553A	G6-MaxTouch-553B	G6-MaxTouch-553C	G6-MaxTouch-553D
Type	A	B	C	D
Significance	Optical Zoom-lens Sensor	Zoom-lens Sensor and Contact Probe Sensor	Zoom-lens Sensor and Lazer Sensor	Zoom-lens Sensor, Contact Probe Sensor and Lazer Sensor
Contact Probe	Without	MCP-Kit1	Without	MCP-Kit1
Lazer Module	Without	Without	Omron Lazer	Omron Lazer
Software Version	iMeasuring4.1	iMeasuring4.2	iMeasuring5.0	iMeasuring5.1

Heavy-load Vision Measuring Machine Models and Specifications：

Model	Code#	Model	Code#	Model	Code#
G6-MaxTouch-553A	525-180k	G6-MaxTouch-1653A	525-180X	G6-MaxTouch-10103A	525-180n
G6-MaxTouch-553B	525-280k	G6-MaxTouch-1653B	525-280X	G6-MaxTouch-10103B	525-280n
G6-MaxTouch-553C	525-380k	G6-MaxTouch-1653C	525-380X	G6-MaxTouch-10103C	525-380n
G6-MaxTouch-553D	525-480k	G6-MaxTouch-1653D	525-480X	G6-MaxTouch-10103D	525-480n

Heavy-load Vision Measuring Machine Measurement Space Guide Table：

Travel	Model	Accuracy		X Axis Travel mm	Y Axis Travel mm	Z Axis Standard Travel mm	Z Axis Maximum Custom Travel mm
Travel	Model	E1x,y	E1z	X Axis Travel mm	Y Axis Travel mm	Z Axis Standard Travel mm	Z Axis Maximum Custom Travel mm
500x500x300	G6-MaxTouch-553	2.0+L/200	4.0+L/200	500	500	300	400
1600x500x300	G6-MaxTouch-1653	3.0+L/200	4.0+L/200	500	1600	300	400
1000x1000x300	G6-MaxTouch-10103	2.5+L/200	4.0+L/200	1000	1000	300	400

Other travel specifications can be customized according to customer needs.
