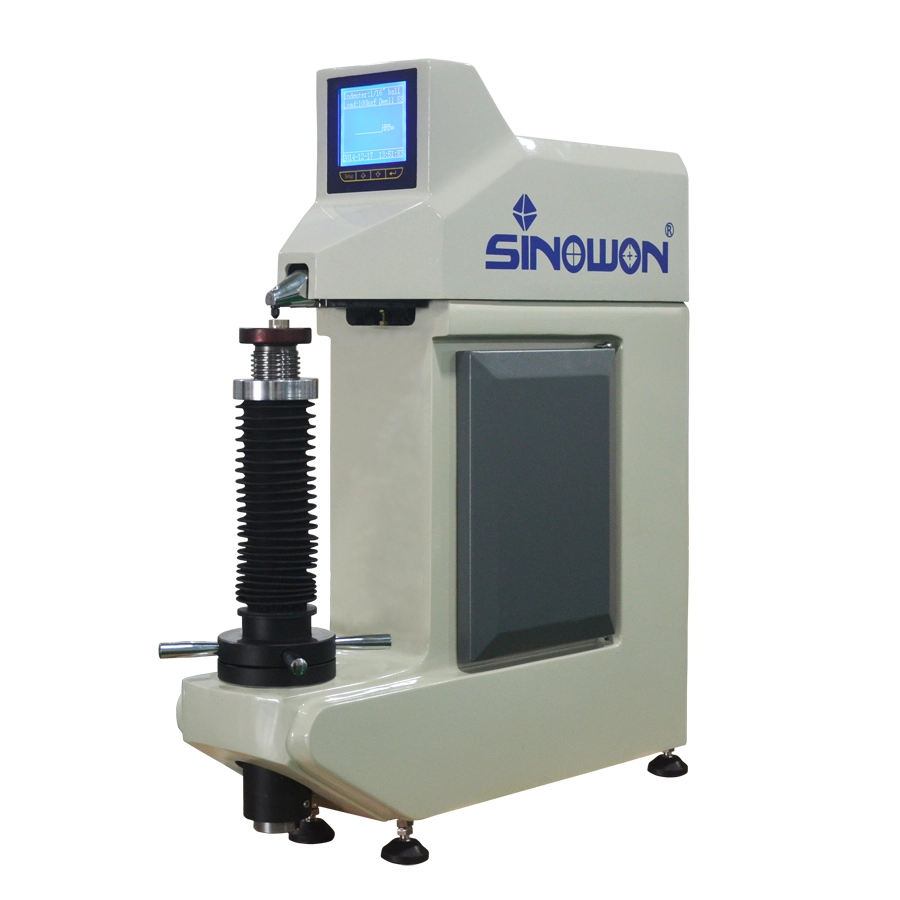

Vexus SHR150N/45N/145N Digital Rockwell Hardness Tester

Model:

SHR-150N/SHR-45N/SHR-145N

Code#:

811-308

Warranty:

15-month

Delivery Time:

15-30 days

Standard:

GB/T230.2, EN-ISO 6508 , ASTM E-18

Certificate:

Inquiry

Write a Review

Vexus SHR150N/45N/145N Digital Rockwell Hardness Tester 2

Product Feature

◆ Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material;

◆ Horizontal Convex noise design, which is suitable for internal and external testing;.

◆ Testing on surfaces difficult to reach. Testing internal surface of rings and tubes with diameters over 23mm;

◆ Testing force is set automatically according to testing scale;

◆ Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales;

◆ Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB or RS-232 data output port;

◆ Test value can be transformed to the value of HB, HV, HK and σb value;

◆ The tester meeting all the following standard such as ISO 6508, ASTM E18.

Specification

Commodity	Digtial Rockwell Hardness Tester	Digital Superficial Rockwell Hardness Tester	Digital Twin Rockwell Hardness Tester
Model	SHR-150N	SHR-45N	SHR-145N
Code #	811-308	811-318	811-328
Total test force	60Kgf(588.4N) 100Kgf(980.7N) 150Kgf(1471N)	15Kgf(147.1N) 30Kgf(294.3N) 45Kgf(441.3N)	15Kgf(147.1N), 30Kgf(294.3N), 45Kgf(441.3N); 60Kgf(588.4N), 100Kgf(980.7N),150Kgf(1471N)
Rockwell Scale	SHR-150N: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV
Superficial Rockwell Scale	SHR-45N: HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Twin Rockwell Scales	SHR-145N:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV; 15T,30T,45T;15Y,30Y,45Y; 15N,30N,45N
Dwell Time	2-60s adjustable
Hardness Indication	High definition backlight LCD
Resolution	0.1HR
Data-Output	RS-232
Conversion Scale	HV、HBS、HBW、HK
Loading Control	Auto Loading/Dwell/Unloading
Max. Height of Specimen	260mm
Throat	150mm
Power Supply	AC 220V/50Hz;AC110V/60Hz
Dimension	710 x210 x830mm
Packing Dimension	820x520x1000mm
Net Weight /Gross	125Kg/95Kg
Execution standard	GB/T230.2, EN-ISO 6508 , ASTM E-18

Application

Vexus SHR150N/45N/145N Digital Rockwell Hardness Tester 3

Vexus SHR150N/45N/145N Digital Rockwell Hardness Tester 4

Software Introduction
