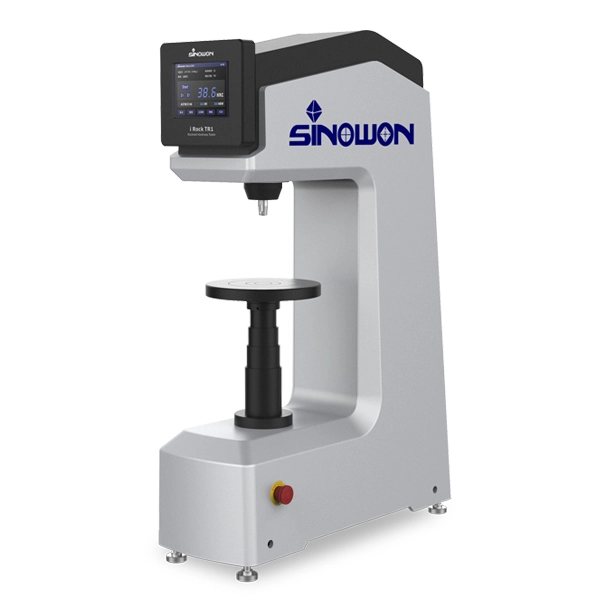

    iRock DR1/DS1/TR1 Automatic Rockwell Hardness Tester 2



    Product Feature


     A kind of Full-auto Intelligent Digital Rockwell Hardness Tester, available to test Rockwell and Superficial Rockwell hardness automatically.

    One-key operation, auto lifting, auto load-change, auto loading/dwell/unloading,auto conversion, auto testing.

     Equipped with friendly operation interface, 5.2“ color touch screen directly display test force, dwell time, conversion value, indenter type, etc.

     Auto calculating and displaying test result, Max, Min, Ave, and hardness deviation. Resolution is 0.1HR.

     Available to set up upper and lower limit, with the function of over-error warning, data analysis chart, single test and group test.

     With software compensation function, available to compensate ±3HR, need not mechanical adjustment.

     With function of auto conversion according to ASTM E140, without checking hardness contrast table.

     Available to switch languages.: Chinese、English、German、Portuguese、Turkish、Czech、Korean.

     Available to save 2000 single test results and 1000 group test results. Can realize data viewing and analysis

     With optional wireless Bluetooth printer, there is no need to record results and report by hand.

     With optional data analysis software and Bluetooth receiver to input and analyze data.

     Support FexQMS data analysis and control software, improve integral control and decrease material consumption.


    Specification



    Product Name

    Automatic Rockwell

    Hardness Tester

    Automatic Twin Rockwell

    Hardness Tester

    Model iRock-DR1iRock-TR1
    Code #811-330811-350
    Preliminary Test Force10Kgf(98.1N)3Kgf(29.4N);10Kgf(98.1N)
    Total Test Force

    60Kgf(588.4N),

    100Kgf(980.7N),

    150Kgf(1471N)

    15Kgf(147.1N)     30Kgf(294.3N),

    45Kgf(441.3N);    60Kgf(588.4N),

    100Kgf(980.7N), 150Kgf(1471N)

    Rockwell ScaleDR1: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV
    Full Rockwell Scale

    TR1: HRA, HRB, HRC, HRD, HRE, HRF, ;15T,30T,45T;15T,30T,45T; 15N,30N,45N, etc

    Dwell Time1-60s adjustable
    Display Screen5.2 ”Color touch screen; Resolution:640*480
    Resolution0.1HR
    Loading  ModeAuto loading/dwell/unloading
    Conversion ScaleHV、HBS、HBW、HK
    Conversion StandardASTM,DIN
    LanguageChinese、English、German、Portuguese、Turkish、Czech、Korean
    Software Correction-3.0HR ~ +3.0HR, step value 0.1HR
    Data Processing

    2000 group single dat, line chart of group data function;

     respectively provide single data viewing and group data viewing

    PrintOptional Bluetooth Printer
    Max. Height of Specimen 280mm
    Throat170mm
    Power SupplyAC 220V/50Hz; AC110V/60Hz
    Dimension 615 x 225x 885mm
    Packing Dimension670×440×1000mm
    Net Weight /Gross125Kg/140Kg
    Execution standardGB/T230.2, EN-ISO 6508, ASTM E-18


    Application



    iRock DR1/DS1/TR1 Automatic Rockwell Hardness Tester 3


    iRock DR1/DS1/TR1 Automatic Rockwell Hardness Tester 4
