durable brinell hardness test experiment customized for cast iron
1. Sinowon brinell testing machine aligns with SOP (Standard Operating Procedure) in production process. It, up to the requirements from different industries, is widely applied
2. Sinowon Innovation Metrology Manufacture Limited. applies advanced brinell testing machine software provides customers with inspections for brinell hardness test experiment . A team of experienced talents is gathered to support the product sales
3. The product has a long service life. Its fully shielded design helps to avoid leakage problems and thus better protects its components from damage. The production is supported by professional engineers
4. This product has many features. Compared with similar products, the luster is better, and the feel is more comfortable and soft. The product is well used in many large engineering projects
Product Feature
◆ Equips with OS Win10, and already installed BrinScan V3.0 Auto Brinell Measurement software.
◆ Apply vision measurement technology, one key operation, realize auto loading, dwell, unloading and indentation measurement.
◆ AutoBrin AB-3000Z can display data statistics, hardness conversion, limitation setting, graph, measurement mode setting, etc.
◆ Loading by high accuracy force sensor , and can compensate force loss during loading by micro central processing unit.
◆ Loading control by load cell with accuracy at 0.5‰, microchip can make force compensation automatically lost during loading.
Application
Because of Brinell method apply big loading force and generate big indentation, it is suitable to test hardness of hard alloy, cemented steel, hardened steel, case-hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, soft steel, hardened and tempered steel, annealed steel, ball bearing steels.
Specification

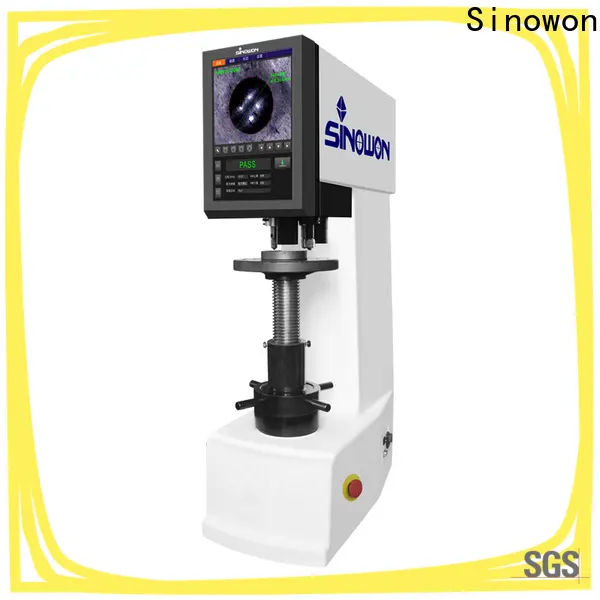

| Name | Auto Digital Touch Vision Brinell Hardness Tester | |
| Model | AutoBrin-3000Z | |
| Code# | 831-170 | |
| Loading Force | Kgf | 62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf |
| N | 612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N | |
| Hardness Resolution | 0.1HBW | |
| Brinell Range | (8-650) HBW | |
| Indentation Measurement | Automatically | |
| Objective | 1x And 2x | |
| Software | Win 10 OS, MS Office | |
| Brinell Measurement Software | BrinScan V3.0 | |
| Vertical Space | 250mm | |
| Horizontal Space | 150mm | |
| Dimension | 622x313x992mm | |
| Gross/Net Weight | 200Kg/170Kg | |
| Power Supply | AC 220V/110V±5%，50~60 Hz | |
| Conform Standard | GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243 | |
Accuracy | ||
| Hardness Range | Permitted Error | Repeatability |
| HBW≤ 125 | ≤± 3.5％ | ≤ 3.5％ |
| 125＜HBW≤225 | ≤± 2.5％ | ≤ 3.0％ |
| HBW＞ 225 | ≤± 2.0％ | ≤ 2.5％ |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has combined the modern science and technology theory in to its production practice.
2. Sinowon Innovation Metrology Manufacture Limited. aims to offer every customers superior brinell hardness test experiment and satisfying service. Ask!
