efficient durometer factory for small areas

Company Advantages
1. The manufacture of Sinowon hardness measurement complies with some basic garment standards. These standards are GB Standards, European Standards, AATCC, ASTM, and ISO. The product performs well in program control and material use reduction
2. Good environment of production zone and workshop is one of the conditions for improving the durometer quality. A team of experienced talents is gathered to support the product sales
3. This product has a certain degree of flex. The material of its fabric has proper weight, thickness, stiffness, stretch, and recovery, which contributes to this property. Innovation is always made to update the product

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Apply closed loop loading sensor, MPU controls the loading, dwell and unloading process;

◆ Equips with LCD screen, show loading force, hardness value, dwell time;

◆ Manually reading indentation, then input dialog length to calculate hardness value;

◆ Available to add optional mini printer, motorized turret, and VicPad measurement device or PC software iVicky 2.0.

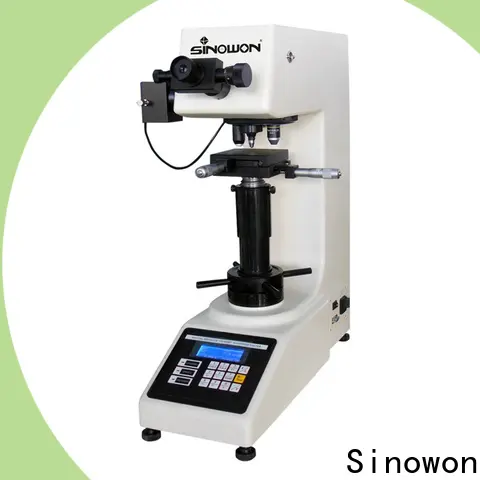

Product Name		Vickers hardness tester
Model		V-5	V-10	V-30	V-50
Code#		821-101	821-111	821-121	821-131
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x mechanical eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. When it comes to durometer quality, vickers hardness testing machine is proud of it.
2. Sinowon Innovation Metrology Manufacture Limited. provides customers with excellent products and services. Get price!
