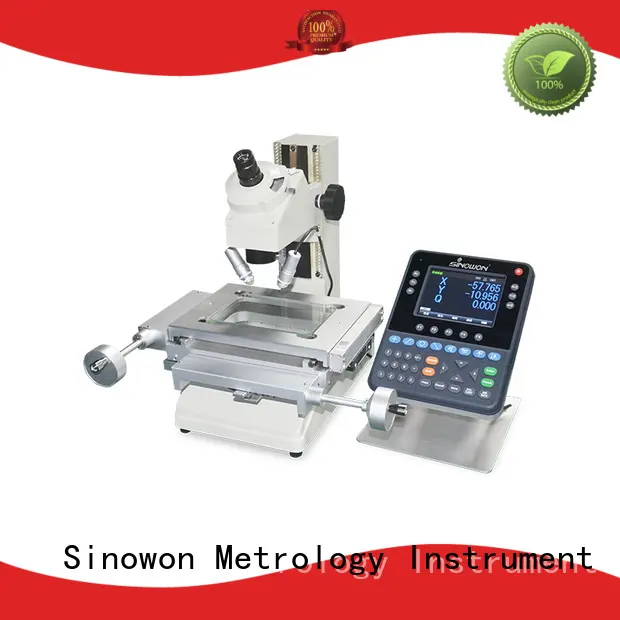

efficient Toolmakers Microscope factory for soft alloys

Model:
STM-1050
Code#:
531-130
Accuracy:
≤5um
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Product Details
optical measurement instruments's outstanding quality is shown in the details.Sinowon insists on the use of high-quality materials and advanced technology to manufacture optical measurement instruments. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.
  • efficient Toolmakers Microscope factory for soft alloys 7
Application Scope
vision measuring machine has a wide range of applications. It is mainly used in the following industries and fields.Sinowon insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
  • efficient Toolmakers Microscope factory for soft alloys 8
Company Advantages
1. Sinowon tool makers microscope in metrology is designed under the guidance of highly skilled designers.
2. Toolmakers Microscope , by adopting tool makers microscope in metrology, is conducive to showing the uniqueness of this product.
3. This product is ensured with optimum quality and durability.
4. We also run Toolmakers Microscope for years.


efficient Toolmakers Microscope factory for soft alloys 9

Application:
It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The measuring profile projector can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.


Product Feature


Precision working stage travel:100 x50mm;

High precision linear scale : 0.5um;

Color screen multifunctional digital readout : DP400;

Optical objective with adjustable LED ring reflector illumination;

With high accuracy and high stability;


Specification



ModelSTM-1050
Code#531-130
Metall Stage Size252×252mm
Glass Stage Size196×96mm
Resolution0.5um
Measuring Accuracy≤5um
Measuring DeviceDigital Readout DP400
Max.Height of Specimen115mm
Max.Weight of Specimen5Kg
Max.Magnification150×(Φ0.13mm)(15×Eyepiece+10×Objective)
Min.Magnification20×(Φ6.5mm)(10×Eyepiece+2×Objective)
Standard Magnification30×(Φ0.13mm)(15×Eyepiece+2×Objective)
Standard Working Distance67mm
Optical TubeMonocular with 30°depression angle
15×Eyepiece with Crossline Reticle
EyepieceWF15/13
ObjectiveMagnification:2×
Working Distance:2.638"(67mm)
Eyepiece Protractor Range360°
Eyepiece Protractor Graduation
Vernier Angle Reading6’
Contour IlluminationLight source:Tungsten bulb(24V;2W)
Surface IlluminationRing LED illumination brightness adjustable
Power SupplyAC110V/60Hz;220V/50Hz
Dimension(D×W×H)415×315×420mm
Packing Dimension(D×W×H)210×333×391mm
Gross/Net Weight30Kg/25Kg


Standard Delivery:


Accessory NameCode#Accessory NameCode#Accessory NameCode#
15XEyepiece531-5222X Objective531-602Ring Illumination413-146
Linear Scale581-201Power Cable581-921Operation ManualSTM-1050


Product Details



efficient Toolmakers Microscope factory for soft alloys 10
efficient Toolmakers Microscope factory for soft alloys 11
efficient Toolmakers Microscope factory for soft alloys 12
efficient Toolmakers Microscope factory for soft alloys 13




Company Features
1. Being a reliable and powerful manufacturer and supplier of tool makers microscope in metrology, Sinowon Innovation Metrology Manufacture Limited. has earned good reputations from numerous customers.
2. Sinowon Innovation Metrology Manufacture Limited. has gained fame for its strong technical base.
3. We plan to become a global Toolmakers Microscope exporter. Inquire online! Sinowon Innovation Metrology Manufacture Limited. is a well-known company that is committed to becoming one of the most competitive exporters in the tool microscope market. Inquire online! Sinowon adheres to the desire of becoming a heavily influential measuring microscope provider in the future. Inquire online! Sinowon shares a fantastic dream of being a global toolmakers microscope producer and wholesaler. Inquire online!
