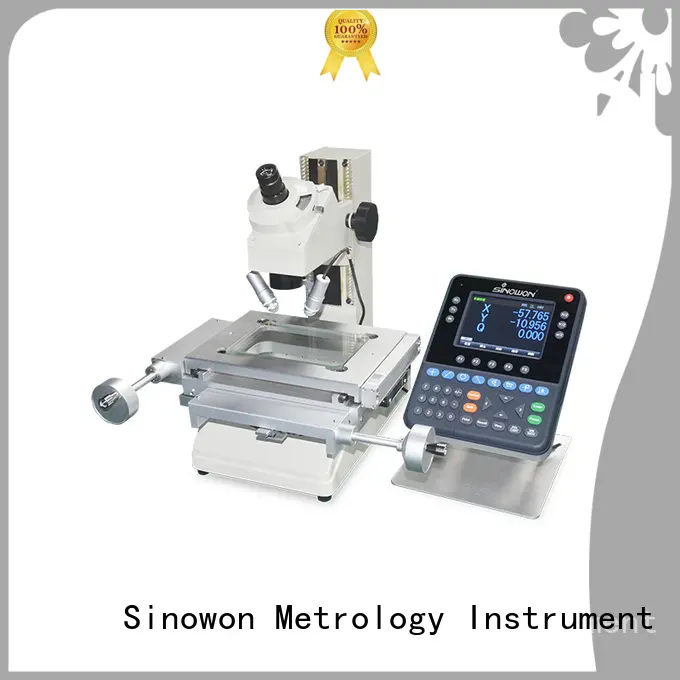

efficient toolmakers microscope with good price for cast iron

Model:
STM-1050
Code#:
531-130
Accuracy:
≤5um
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Product Comparison
optical measurement instruments is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.Compared with other products in the same category, optical measurement instruments has outstanding advantages which are mainly reflected in the following points.
  • efficient toolmakers microscope with good price for cast iron 7
    efficient toolmakers microscope with good price for cast iron 8
Enterprise Strength
  • Sinowon serves every customer with the standards of high efficiency, good quality, and rapid response.
Company Advantages
1. Sinowon toolmaker scope meets mandatory electrical safety requirements. It has to pass the following tests: high voltage test, leakage current test, insulation resistance test, and ground continuity test.
2. The product is able to withstand weather elements. Its roof and wall covering are double PVC-coated polyester textile fabric which is UV resistant, waterproof and flame retardant.
3. The product has the advantage of water repellency. Its seam sealing and coating create a barrier to block the water.
4. This product tells a lot about individuals. It really helps in enhancing people's appearance and expressing their uniqueness and creativity.


efficient toolmakers microscope with good price for cast iron 9

Application:
It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The measuring profile projector can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.


Product Feature


Precision working stage travel:100 x50mm;

High precision linear scale : 0.5um;

Color screen multifunctional digital readout : DP400;

Optical objective with adjustable LED ring reflector illumination;

With high accuracy and high stability;


Specification



ModelSTM-1050
Code#531-130
Metall Stage Size252×252mm
Glass Stage Size196×96mm
Resolution0.5um
Measuring Accuracy≤5um
Measuring DeviceDigital Readout DP400
Max.Height of Specimen115mm
Max.Weight of Specimen5Kg
Max.Magnification150×(Φ0.13mm)(15×Eyepiece+10×Objective)
Min.Magnification20×(Φ6.5mm)(10×Eyepiece+2×Objective)
Standard Magnification30×(Φ0.13mm)(15×Eyepiece+2×Objective)
Standard Working Distance67mm
Optical TubeMonocular with 30°depression angle
15×Eyepiece with Crossline Reticle
EyepieceWF15/13
ObjectiveMagnification:2×
Working Distance:2.638"(67mm)
Eyepiece Protractor Range360°
Eyepiece Protractor Graduation
Vernier Angle Reading6’
Contour IlluminationLight source:Tungsten bulb(24V;2W)
Surface IlluminationRing LED illumination brightness adjustable
Power SupplyAC110V/60Hz;220V/50Hz
Dimension(D×W×H)415×315×420mm
Packing Dimension(D×W×H)210×333×391mm
Gross/Net Weight30Kg/25Kg


Standard Delivery:


Accessory NameCode#Accessory NameCode#Accessory NameCode#
15XEyepiece531-5222X Objective531-602Ring Illumination413-146
Linear Scale581-201Power Cable581-921Operation ManualSTM-1050


Product Details



efficient toolmakers microscope with good price for cast iron 10
efficient toolmakers microscope with good price for cast iron 11
efficient toolmakers microscope with good price for cast iron 12
efficient toolmakers microscope with good price for cast iron 13
