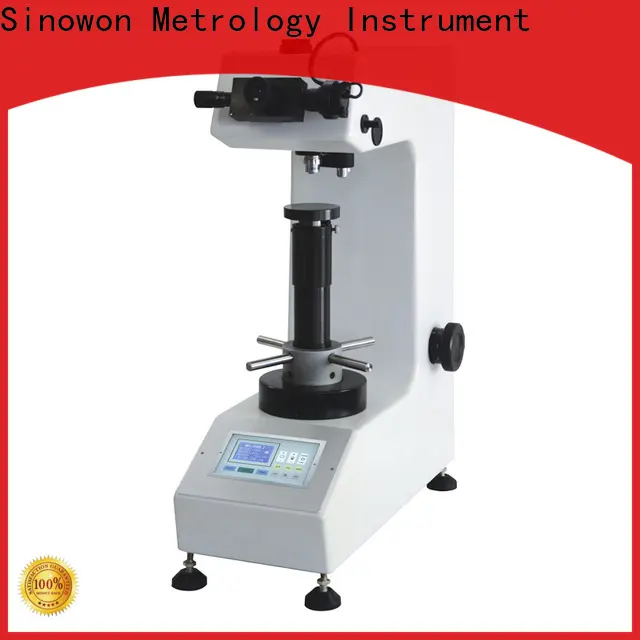

elegant vickers hardness testing machine design for measuring
1. Sinowon microhardness testing machine undergoes four basic production processes which are all up to industry standards including high-temperature cooling, heating, disinfection, and drying. It, up to the requirements from different industries, is widely applied
2. One of our customers said: 'thanks to its fully automatic pre-treatment system, this product has greatly helped me reduces labor cost and maintenance cost.' It can be customized according to customers' needs
3. vickers hardness testing machine has the advantages of low-price and simple-structure, so are particularly suit for microhardness testing machine. It is supported by multiple languages say English, Turkish, and German
4. vickers hardness testing machine has many outstanding advantages. The product is analyzed and tested cautiously before packing
Characteristics
◆ Vickers hardness tester with button control panel;
◆ Strong and stable body;
◆ LED illumination, light, adjustable, long life and no heat;
◆ Data storage for review and printing;
◆ Rotatable turret with five working positions;
◆ 200 lines encode with precise measurement;
◆ Conversion between HV and HRC;
◆ Can be developed to semi-automatically system.
Specification
Model | Vexus SV-10Plus | Vexus SV -30Plus | Vexus SV -50Plus | |
Code# | 821-111Plus | 821-121Plus | 821-131Plus | |
Test Load | Kgf | 0.2 / 0.3 / 0.5 / 1 / 2 / 3 / 5 / 10 | 0.3 / 0.5 / 1 / 3 / 5 / 10 / 20 / 30 | 1 / 2 / 3 / 5 / 10 / 20 / 30 / 50 |
Nf | 1.961 / 2.942 / 4.903 / 9.807 / 19.614 / 29.42 / 49.035 / 98.07 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | |
Loading Mechanism | Automatic loading and releasing method 50~100 µm/s | |||
Dwell Time | 5 ~ 99 s | |||
Turret Mechanism | Automatic | |||
Diamond Indenter | VICKERS INDENTER (FOR HV) | |||
Objective | Normal | 10X , 40X | 10 X , 20X | 10X |
Option | 40x, 20x, 5X | |||
Measuring Microscope Eyepiece | Electronic Type 10X | |||
Max. Measuring length | 900 µm ( In case of 100x ) 230 µm ( In case of 400x ) | |||
Mix. Measuring unit | 0.1µm (0.01µm for CTS type) | |||
Max. Specimen Height | 200mm | |||
Max. Specimen Depth | 160mm | |||
Measuring Hardness Scale | HV, HK | |||
LCD-Display Operation Panel | Load start / set up zero / dwell time / light adjustment / conversion scale / turret location / data delete / conversion value choice / print | |||
Numerical Display | D1 value / D2 value / HV-HK Instructions / hardness value /conversion value / load value / dwell time / test times / turret location | |||
Print Output | Measured data and statistic data ( Max. Value / Min. value / Mean value / Range / Standard deviation ) | |||
Light Source | LED Illuminator | |||
Accuracy | Conform to : JIS B -7735, ASTM E-384 and ISO 6507-2 | |||
Photographic Device | Capable to mount photographic device ( Option) | |||
Dimensions | W 226 × D 560 × H 660 mm | |||
Weight | 72KG | |||
Power Supply | Single phase AC 220 V 50/60 Hz | |||
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a Chinese main exporter for vickers hardness testing machine .
2. With advanced laboratories, Sinowon can create superior micro vickers hardness tester with more confidence and win customers' attention.
3. To Sinowon Innovation Metrology Manufacture Limited. , honesty is a cornerstone to build business cooperation. Please contact us!
