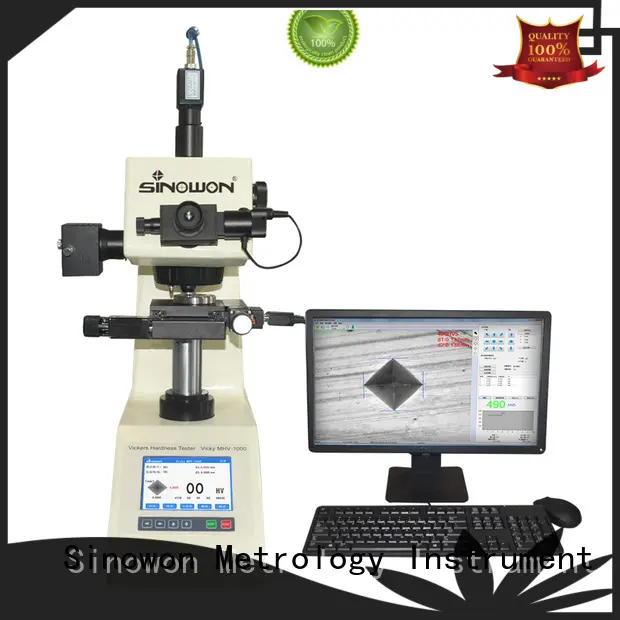

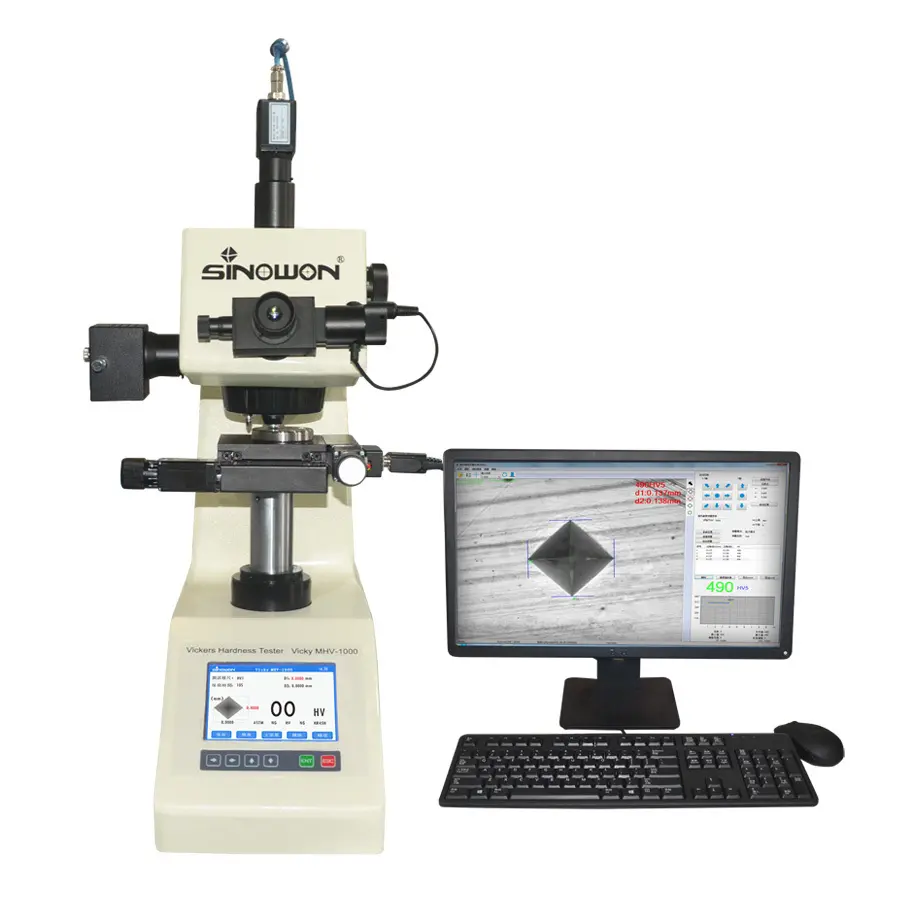

fabrication measurement monitor Sinowon Brand micro vickers hardness tester

Company Advantages
1. micro hardness tester price functions of our micro vickers hardness tester can provide micro vickers hardness testing procedure.More than 10,000 pcs have been delivered and installed
2. This product is presented to customers after proper inspections. The Gost certificate has been obtained for the Russian market
3. The product is verified by ISO9001:2015 to be quality ensured. Sinowon always focusing on micro vickers,micro vickers hardness tester price solutions that fit our customer’s needs.

◆ Loading Control, full auto loading, dwell and unloading;

◆ Auto Turret: Indenter and objectives controlled by iVicky 5.0 software.

◆ Motorized Platform: precision X-Y movement to realize specific position hardness measurement.

◆ Auto Measurement Software: iVicky 5.0 can control hardness tester and data communication, includes objectives and indenter switch, auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate depth and hardness curve, error statistics, test times group statistics, generate Excel and Word format report.

Product Name		Auto Micro Vickers hardness tester
Model		AutoVicky ZHV-1000A
Code#		823-160A
Loading force	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
	Kgf	10、25、50、100、200、300、500、1000
Turret		Auto Turret
Loading Control		Auto loading dwell and unloading
Data Transferring		RS232
Optic System		Objectives: 10X/40X;  Digital Eyepiece: 10X
Camera Adapter		C-mount
Hardness Conversion		HRA, HRB, HRC, HK, HBW, etc.
Display		5.2” Color touch screen, resolution 640*480
Dwell Time		5-60s adjustable
Measuring Range		1HV-2967HV
Resolution		1HV
Vision System		USB high definition USB camera
Motorized XY Platform		Size :100x100mm; Travel :50x50mm; Resolution:1um
Illumination		Adjustable halogen lamp
Vertical Space		≤ 70mm
Horizontal Space		≤ 95mm
Voltage		AC220/50Hz
Packing Dimension		478 x 162 x 518mm/500 x 490 x 700mm
Gross / net weight		45Kg/35Kg
Conform standards		ISO 6507, ASTM E92, JISZ2244, GB/T4340
Software		iVicky 5.0 Auto Vickers Measurement Software
Computer		Dell, OS Win7, office2010

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. concentrates on the research, production and sell of high performance micro vickers hardness tester.
2. micro vickers is made by most popular materials which make it easily to be installed with a reasonable price.
3. Sinowon is committed to establishing an effective quality management system. Check it!
