Vexus MHV-1000Plus Digital Micro Hardness Tester 1
Vexus MHV-1000Plus Digital Micro Hardness Tester 1

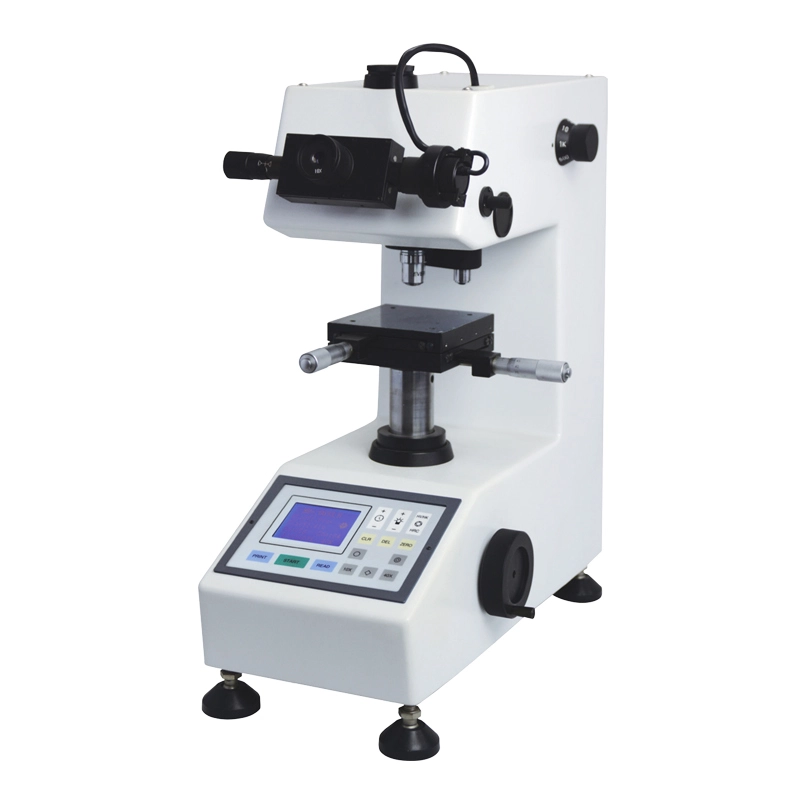

Vexus MHV-1000Plus Digital Micro Hardness Tester

    oops...!

    no product data.

    Go to homepage

    Vexus MHV-1000Plus Digital Micro Hardness Tester 2



    Characteristics


    ◆ Micro-Vickers hardness tester with button control panel;

    ◆ Strong and stable body;

    ◆ LED illumination, light, adjustable, long life and no heat;

    ◆ Data storage for review and printing;

    ◆ Rotatable turret with five working positions;

    ◆ 200 lines encode with precise measurement;

    ◆ D1 and D2 exchange automatically(Vexus MHV-2000);

    ◆ Two indenters available(Vickers and Knoop);

    ◆ Can be developed to semi-automatically or full-automatically system.





    Application Range


    ◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

    ◆ Measuring hardness of the surface of a part, small parts or small areas;

    ◆ Measuring individual micro-structures;

    ◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.



    Specification


    Model

    Vexus MHV-1000Plus

    Vexus MHV-2000Plus

    Code#

    823-113Plus

    823-213Plus

    Test   Load

    gf

    10 / 25 / 50 / 100   / 200 / 300 / 500 / 1000 / 2000 (option)

    mN

    98.07/ 245.2/   490.3/ 980.7/ 1961/ 2942/ 4903/ 9807/19614 (option)

    Loading Mechanism

    Automatic loading   and releasing method 50 ~100 µm/s

    Dwell Time

    5 ~ 99 s

    Turret Mechanism

    Automatic

    Objective

    40x/10x    ( Option:20x,80x )

    Magnification of   Microscope

    For measurement   :400x ( Objective 40X and Eyepiece 10X )

    For observation :   100x ( Objective 10X and Eyepiece 10X )

    Measuring   Microscope

    Electronic

    Max. Measuring   length

    230 µm  ( In case of 400x )

    Mix. Measuring unit

    0.1µm   (0.01µm for TS type)

    Max.Specimen   Height

    90mm

    Max.Specimen Depth

    110mm

    Measuring Hardness   Scale

    HV,  HK

    X-Y Stage

    Manual  type

    Dimensions

    110 × 110 mm

    Max. movement

    25 × 25 mm

    Min. micro   graduation

    1/100 mm

    Light Source

    LED Illuminator

    Print Output

    Measured data and   statistic data  :( Max. Value / Min.   value / Mean value / Range / Standard deviation )

    Accuracy

    Conform to :  JIS B -7735, ASTM E-384 and ISO 146

    Photographic Device

    Capable to mount   photographic device  ( Option)

    Dimensions

    W 190 × D 430 × H   520 mm

    Weight

    40Kg

    Power Supply

    Single phase AC 220   V  50/60 Hz
