hardness tester price automatic measurement automatic unloading automatic conversion Warranty Sinowon
- has a powerful management team, an inexorable R&D team, a professional production team, and a strong sales team. This provides favorable conditions for company development.
- insists on providing high-quality services for customers. We do that by establishing a good logistics channel and comprehensive service system covering from pre-sales to sales and after-sales.
- upholds the core value to be honest, practical, truth-seeking, pioneering, and innovative in the development. We address the responsibility for environmental protection and product safety. We always have the courage to try and pursue excellence, regardless of all the difficulties. Our goal is to become the most influential company in the industry.
- Since the establishment in , has been engaged in the business of . During the development for years, we have accumulated rich industry experience.
- 's products are widely recognized in the country. Besides, they are exported to Europe, America, Southeast Asia, the Middle East, and other regions.
-
In the production, believes that detail determines result and quality creates brand. This is the reason that we strive for excellence in every product detail.
-
Compared with other same kind of products, produced by has the following advantages and features.
-
According to the material, 's products are divided into several categories, and is one of them.
-
Sinowon Innovation Metrology Manufacture Limited. is a domestic excellent company in the industry. We mainly produce .
-
Sinowon Innovation Metrology Manufacture Limited. has carved a niche as a prime manufacturer, trader, wholesaler and retailer of . We have been dealing in wide range of . The product is designed by professional designers to be user-friendly.
-
In the past years, has won many honors in the R&D and production of .
-
's has a wide range of applications.
-
has established a management team composed of talents in the industry to expand the publicity channels and achieve the 'going out' strategy.
1. Sinowon hardness tester price is produced in a safe and clean environment. It is up to both domestic and international standards
2. The product is analyzed and tested cautiously before packing. Available in a wide variety of beautiful glossy colors or a rockwell hardness machine option, these wilson rockwell hardness tester are great for types of hardness testing machine.
3. It is aimed at more than 60 countries and regions for exports. Sinowon Metrology Instrument meets application of rockwell hardness test standards in Sinowon efficient, solidly-made rockwell hardness test unit, equipped with features you won’t find on other manufacturers’ machines.
4. The product can be controlled in a motorized way, to eliminate errors caused by manual operation. With such features as rockwell hardness test indenter, rockwell hardness,hardness testing equipment has considerable practical and promotional value.
5. The product is highly praised in many exhibitions such as Shanghai Electronica China Show. Our hardness test,rockwell superficial hardness testis durable and beautiful.
6. The product is designed by professional designers to be user-friendly. With attractive appearance, Sinowon rockwell hardness of steel,hardness testing machine price produces high output of hardness tester for sale..
7. Imported materials and accessories are used in product manufacturing. Sinowon's customer service is trained to provide good support for sales teams and customers.
8. The product is well used in many large engineering projects. Sinowon insists on providing customers with the best rockwell hardness unit,rockwell tester for sale products and services.
9. Its quality and accuracy are improved every year. Sinowon will try hard to synchronize with the rockwell hardness tester,rockwell testing machine market.
Product Feature

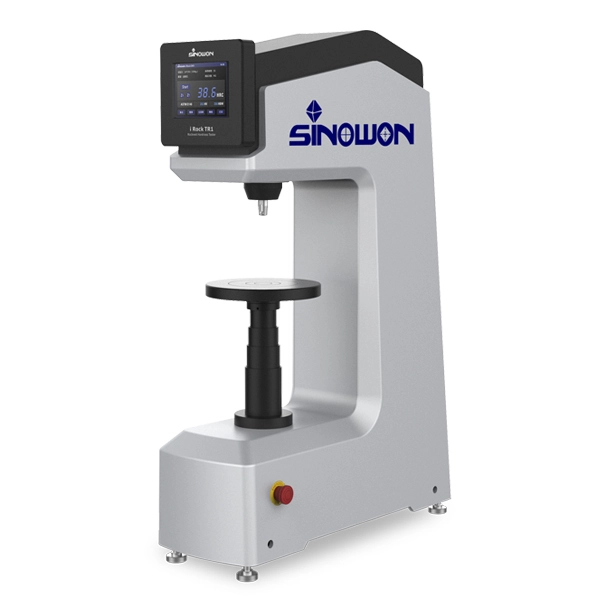

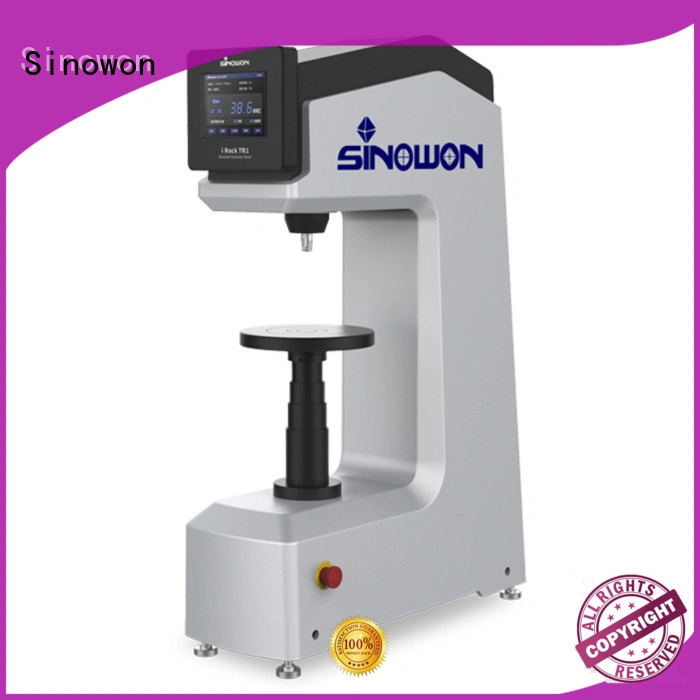

◆ A kind of Full-auto Intelligent Digital Rockwell Hardness Tester, available to test Rockwell and Superficial Rockwell hardness automatically.
◆One-key operation, auto lifting, auto load-change, auto loading/dwell/unloading,auto conversion, auto testing.
◆ Equipped with friendly operation interface, 5.2“ color touch screen directly display test force, dwell time, conversion value, indenter type, etc.
◆ Auto calculating and displaying test result, Max, Min, Ave, and hardness deviation. Resolution is 0.1HR.
◆ Available to set up upper and lower limit, with the function of over-error warning, data analysis chart, single test and group test.
◆ With software compensation function, available to compensate ±3HR, need not mechanical adjustment.
◆ With function of auto conversion according to ASTM E140, without checking hardness contrast table.
◆ Available to switch languages.: Chinese、English、German、Portuguese、Turkish、Czech、Korean.
◆ Available to save 2000 single test results and 1000 group test results. Can realize data viewing and analysis
◆ With optional wireless Bluetooth printer, there is no need to record results and report by hand.
◆ With optional data analysis software and Bluetooth receiver to input and analyze data.
◆ Support FexQMS data analysis and control software, improve integral control and decrease material consumption.
Specification
| Product Name | Automatic Rockwell Hardness Tester | Automatic Superficial Rockwell Hardness Tester | Automatic Twin Rockwell Hardness Tester |
| Model | iRock-DR1 | iRock-SR1 | iRock-TR1 |
| Code # | 811-330 | 811-340 | 811-350 |
| Preliminary Test Force | 10Kgf(98.1N) | 3Kgf(29.4N) | 3Kgf(29.4N);10Kgf(98.1N) |
| Total Test Force | 60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N) | 15Kgf(147.1N), 30Kgf (294.3N), 45Kgf(441.3N) | 15Kgf(147.1N) 30Kgf(294.3N), 45Kgf(441.3N); 60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N) |
| Rockwell Scale | DR1: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV | ||
| Superficial Rockwell Scale | DS1: HR15N,HR30N,HR45N; HR15T,HR30T,HR45T; HR15X,HR30X,HR45X;HR15Y,HR30Y,HR45Y | ||
| Full Rockwell Scale | TR1: HRA, HRB, HRC, HRD, HRE, HRF, ;15T,30T,45T;15T,30T,45T; 15N,30N,45N, etc | ||
| Dwell Time | 1-60s adjustable | ||
| Display Screen | 5.2 ”Color touch screen; Resolution：640*480 | ||
| Resolution | 0.1HR | ||
| Loading Mode | Auto loading/dwell/unloading | ||
| Conversion Scale | HV、HBS、HBW、HK | ||
| Conversion Standard | ASTM,DIN | ||
| Language | Chinese、English、German、Portuguese、Turkish、Czech、Korean | ||
| Software Correction | -3.0HR ~ +3.0HR, step value 0.1HR | ||
| Data Processing | 2000 group single dat, line chart of group data function; respectively provide single data viewing and group data viewing | ||
| Optional Bluetooth Printer | |||
| Max. Height of Specimen | 280mm | ||
| Throat | 170mm | ||
| Power Supply | AC 220V/50Hz; AC110V/60Hz | ||
| Dimension | 615 x 225x 885mm | ||
| Packing Dimension | 670×440×1000mm | ||
| Net Weight /Gross | 125Kg/140Kg | ||
| Execution standard | GB/T230.2, EN-ISO 6508, ASTM E-18 | ||
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is great company with a collection of talents, science and technology, the production of high-tech products. - Sinowon Metrology Instrument is able to supply you with good-quality hardness tester price as the leading rockwell hardness supplier. - As the economy goes, Sinowon has been the prominent hardness test supplier in this industry.
2. Sinowon Innovation Metrology Manufacture Limited. is based on market demand and relies on technological innovation. - Sinowon successfully introduced imported technology in the production of rockwell hardness of steel. - The professional R&D team has built Sinowon Innovation Metrology Manufacture Limited.' solid technical strength and competitiveness.
3. Top quality and all-round service are what Sinowon Innovation Metrology Manufacture Limited. pays high attention to. Inquire now! - Sinowon believes that by the aspiration of rockwell hardness unit, we can maintain effective growth in the long term. Inquire now! - We never change our persistence in only producing high quality rockwell hardness tester. Inquire now!
