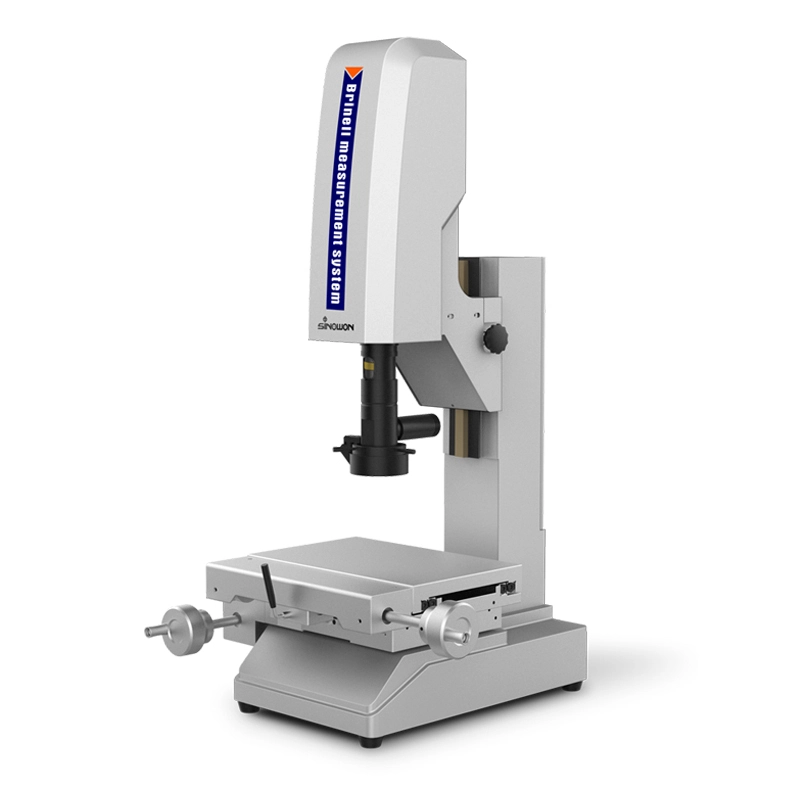

High Accuracy Brinell Optic Measurement System QB-500
5.0
Model:
QB-500
Code#:
838-390
Warranty:
12 month
Delivery Time:
15-30days
Standard:
GB/T4340, ISO6506/6507，ASTM E10-12/E92 JIS Z2243
Certificate:
CE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Introduction
QB-500 high accuracy Brinell optic measurement system mainly used to test accuracy of hardness block for manufacturer and verification lab, also available for specimens Brinell indentation measurement.
Features
◆ Apply telecentric zoom lens, can measurement Brinell indentation accurately on mirror surface and rough surface.
◆ High accuracy microscope stage with travel 100 x 50mm, supportt specimen weight at max 15Kg.
◆ Non-touch optical measurement, with laser navigation, easily to find indentation.
◆ By BrinScan V2.0 software, realize auto measurement.
Specification
| Name | High accuracy Brinell optic measurement system | |
| Model | QB-500 | |
| Code# | 838-390 | |
| Hardness Resolution | 0.01HB | |
| Repeatability | ±1HB | |
| Specimen Weight | 15Kg | |
| Stage Travel | 100X50mm | |
| Z Axis Travel | 50mm | |
| Z Axis Guiding | Dovetail groove and manual driven | |
| Illumination | Adjustable LED cold light source, coaxial light source | |
| Software | Brinscan V2.0 | |
| Operation OS | Win8、Win10，32/64bit；Office | |
| Working Environment | Temperature 20℃±1℃， Humidity 30~80% | |
| Voltage | 220V/50HZ | |
| Weight | 20Kg | |
| Dimension | 440x410x700mm | |
