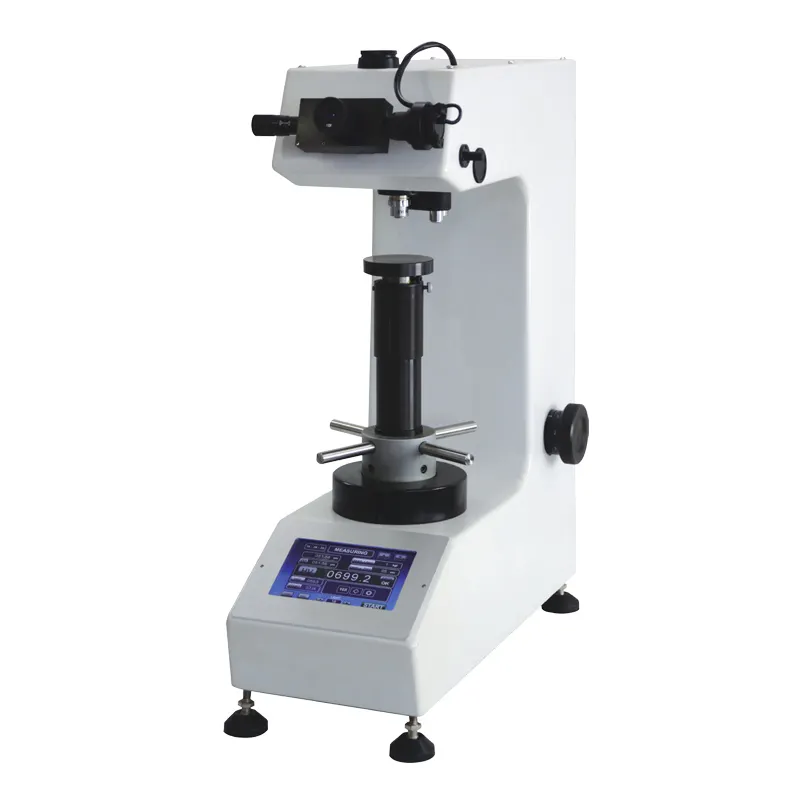

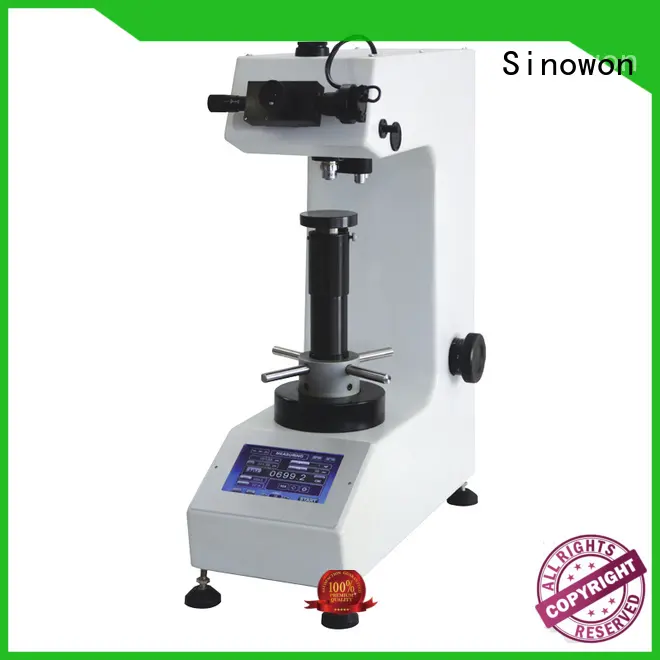

high accuracy monitor cost-effecitvie measuring hardness vickers hardness machine Sinowon Brand
1. With the ever-changing market demands and the improvement of technology, our company is gradually increasing its business range from Vision Measuring Machine to vickers hardness machine. It, up to the requirements from different industries, is widely applied
2. The product is well known for high accuracy and great stability. As well, clientele can purchase these products from us at low market prices.
3. A quality control system is implemented for the product. welcome to browse our website for more information, in order to meet the market demand, Sinowon will continually develop new vickers hardness testing machine, if you are interested in our high-quality products and related service. pls contact us.
Characteristics
◆ Vickers hardness tester with colour touch screen;
◆ 8 inches colour touch screen, high resolution, easy to operate;
◆ Strong and stable body;
◆ LED illumination, light, adjustable, long life and no heat;
◆ Data storage for review and printing;
◆ Rotatable turret with five working positions;
◆ 250 lines encode with more precise measurement;
◆ Conversion between different scales;
◆ Can be developed to semi-automatically system.
Specification
Model | Vicky TV-10Plus | Vicky TV-30Plus | Vicky TV-50Plus | |
Code# | 821-240Plus | 821-260Plus | 821-280Plus | |
Test Load | Kgf | 0.2 / 0.3 / 0.5 / 1 / 2 / 3 / 5 / 10 | 0.3 / 0.5 / 1 / 3 / 5 / 10 / 20 / 30 | 1 / 2 / 3 / 5 / 10 / 20 / 30 / 50 |
Nf | 1.961 / 2.942 / 4.903 / 9.807 / 19.614 / 29.42 / 49.035 / 98.07 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | |
Loading Mechanism | Automatic loading and releasing method 50~100 µm/s | |||
Dwell Time | 5 ~ 99 s | |||
Turret Mechanism | Automatic | |||
Diamond Indenter | VICKERS INDENTER (FOR HV) | |||
Objective | Normal | 10X , 40X | 10 X , 20X | 10X |
Option | 40x, 20x, 5X | |||
Measuring Microscope Eyepiece | Electronic Type 10X | |||
Max. Measuring length | 900 µm ( In case of 100x ) 230 µm ( In case of 400x ) | |||
Mix. Measuring unit | 0.1µm (0.01µm for CTS type) | |||
Max. Specimen Height | 200mm | |||
Max. Specimen Depth | 160mm | |||
Measuring Hardness Scale | HV, HK | |||
LCD-Touch Operation Panel | Load start / set up zero / dwell time / light adjustment / transformation scale turret location / data processing ( browse / delete / print )System settings( test conditions / language/Communications/factorysettings ) | |||
Numerical Display | D1 value / D2 value / HV-HK Instructions / hardness value /conversion value / load value / dwell time / test times / turret location | |||
Print Output | Measured data and statistic data ( Max. Value / Min. value / Mean value / Range / Standard deviation ) | |||
Light Source | LED Illuminator | |||
Accuracy | Conform to : JIS B -7735, ASTM E-384 and ISO 6507-2 | |||
Photographic Device | Capable to mount photographic device ( Option) | |||
Dimensions | W 226 × D 560 × H 660 mm | |||
Weight | 72KG | |||
Power Supply | Single phase AC 220 V 50/60 Hz | |||
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. mainly delivers the top quality Vision Measuring Machine.
2. Sinowon Innovation Metrology Manufacture Limited. insists on the highest level of finish when completing quality control checks on all Video measurement system.
3. We can provide customers with product commissioning and technical training services. Please contact us!
