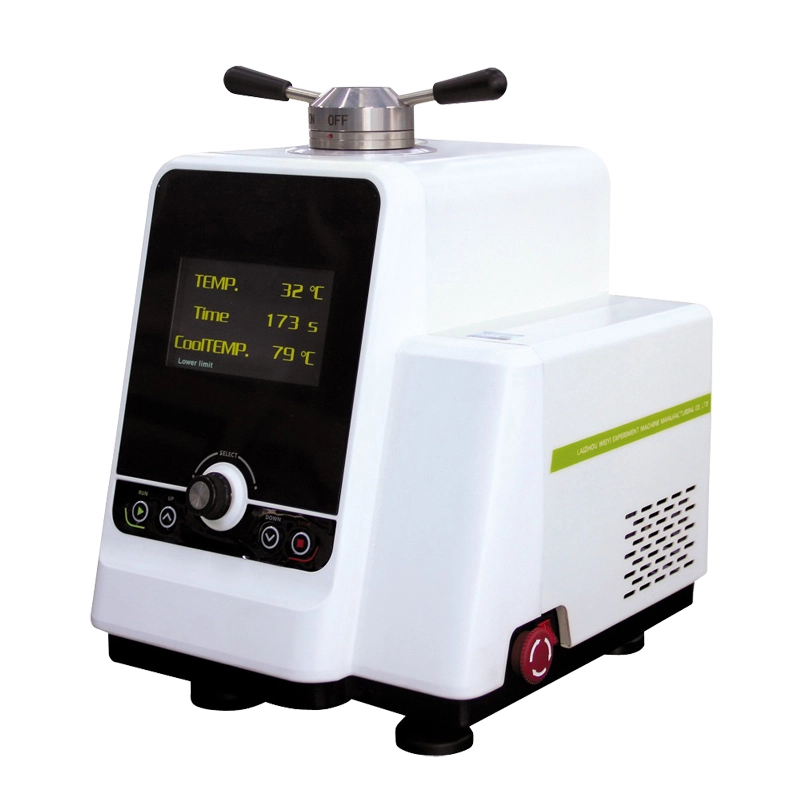

    Automatic Metallographic Mounting Press AMP2 2


    Product Feature



    AMP2 is suitable for tiny or irregular metallorgraphic, lithofacies specimen to be mouted so that the sample will be cut or grinded and polished, and then metallography, spectral measurement or hardness testing. This, machine adopts 7’’big LCD screen display, which has the function of real-time temperature, holding time, cooling temperature. The complete process which is heating, constant pressure, cooling and sample preparation is controlled bu the CPU. The equipment can automatically press, heat and set the temperature condition in a minute. It is easy for us to operate the equipment with the stop button. After the sample preparation, the equipment may show prompt alarm and automatic pressure relief, automatic cooling, which can achieve the idea effect. It is one necessary equipment in laboratory of colleges, research institutes and factories.



    Specification



    Model

    AMP2-22

    AMP2-30

    AMP2-45

    Code#

    713-201

    713-211

    713-221

    Sample diameter

    Φ22mm

    φ30mm

    Φ45mm

    Heating power

    450~1000w

    Heating Range

    100-200

    Cooling Range

    20~90

    Holding time Range

    0-999(s)

    Input Voltage

    Single-phase 220V 50HZ

    Cooling mode

    Water /slow Cooling

    Dimension

    350mm×400mm×465mm

    Net Weight

    48kg
