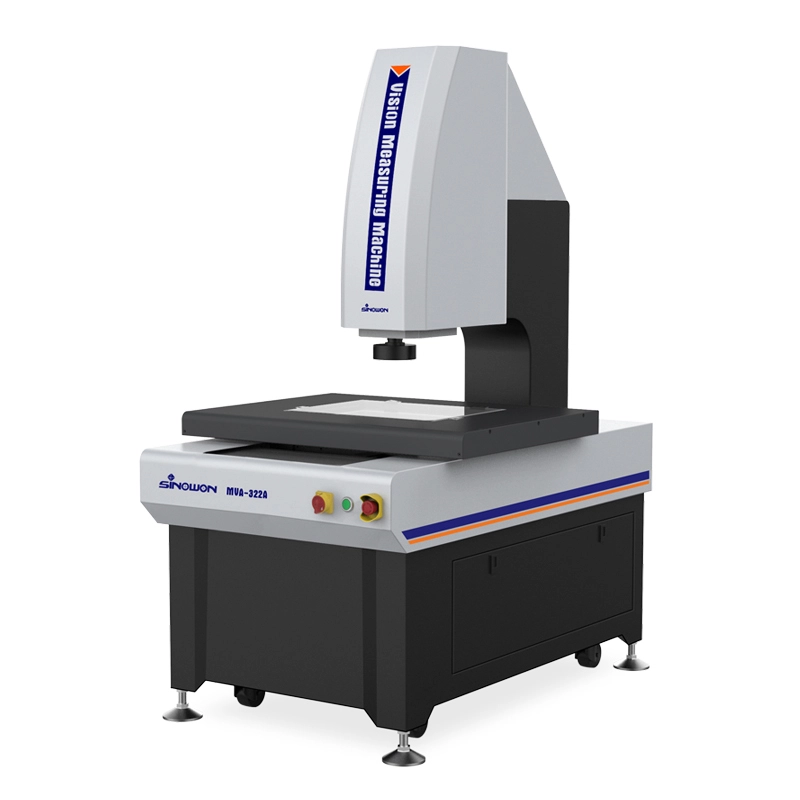

MVA Series Cantilevered Fully Auto Vision Measuring Machine 1
MVA Series Cantilevered Fully Auto Vision Measuring Machine 1

MVA Series Cantilevered Fully Auto Vision Measuring Machine

    oops...!

    no product data.

    Go to homepage

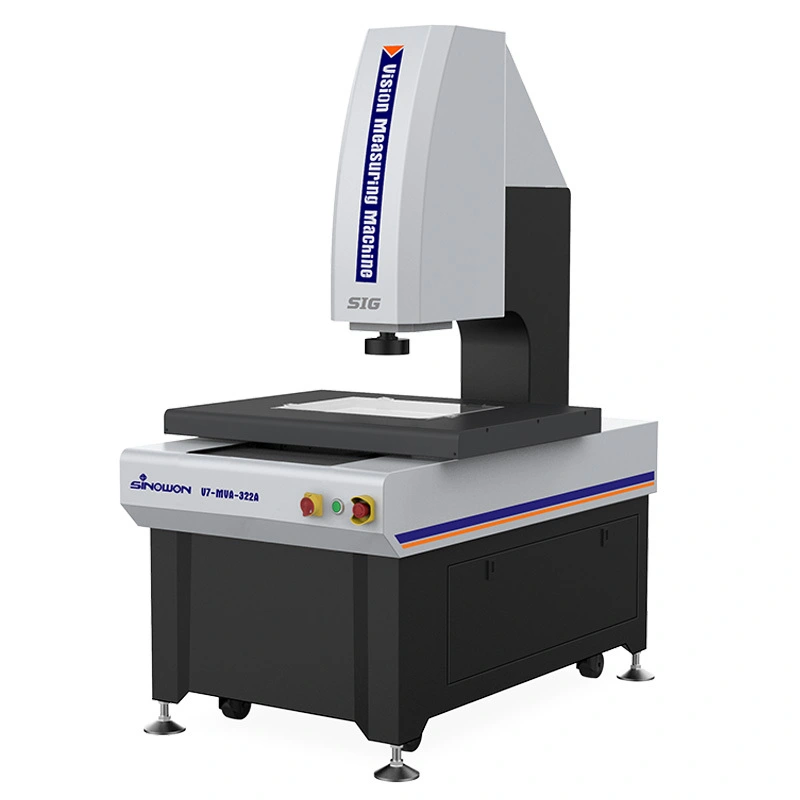

    MVA Series Cantilevered Fully Auto Vision Measuring Machine 2

    MVA series is a cantilevered high accuracy fully automatic vision measuring machine developed for GD&T measurement, with three axis automatic control. It equipped with Automatic focusing, automatic lighting control, optimization of hardware and software configuration to achieve the measurement of linear and geometrical dimensions.


    Product Characteristics


     XYZ three axis CNC automatic control and accurate positioning;

     Granite base and column, good stability;

     Precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;

     Imported 0.5 um high precision linear scale to ensure the positioning accuracy and measurement accuracy of the system;

     High resolution digital camera to meet the needs of clear observation and accurate measurement;

     6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed;

     With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;

     Powerful function and easy operation iMeasuring 4.1 Measuring Software to enhance quality control;

     Automatic measurement program can be set to complete batch measurement efficiently and quickly.


    Technical Specification



    Product Name

    Cantilevered   Fully Auto Vision Measuring Machine

    Model

    MVA-322A

    MVA-432A

    MVA-542A

    Code#

    523-360A

    523-370A

    523-380A

    X/Y-axis Travel

    300x200mm

    400x300mm

    500x400mm

    Z-axis Travel

    200mm

    X/Y/Z-3 axis   Linear Scale

    Imported Linear   Scale Resolution: 0.1um

    Guidance Mode

    Precision   linear guidedouble-track   double slider guide.

    Operation   Mode

    Joystick   controller, Mouse operation, automatic detection program.

    Accuracy*

    XY-axis≤2.0+L/200um

    Z-axis≤5+L/200um

    Repeatability

    ±2um

    Video   System**

    High definition 1/2.9" digital camera

    6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X;

    Video Magnification: 26X~172X(21.5”monitor)

    Field of

    View(mm)

    D*H*V

    Magnification

    0.7X

    1X

    2.0X

    3.0X

    4X

    4.5X

    1/2.9"CCD

    8.88x7.10x5.32

    6.21x4.97X3.73

    3.11x2.49x1.86

    2.07x1.66x1.24

    1.55x1.24x0.93

    1.38x1.10x0.83

    Illumination

    System

    Contour

    LED parallel contour illumination

    Surface

    0~255 Stepless adjustable   5-ring 8-division LED surface illumination

    Measuring Software

    Standard: iMeasuring 4.1 Fully Auto Measuring Software

    Load Capacity

    25Kg

    Working Environment

    Temperature 20±2Humidity Range<2/hr, Humidity 30~80%, Vibration<0.002g,   <15Hz

    Power Supply

    220V/50Hz/10A

    Dimension(W*D*H) (cm)

    1132x720x1665mm

    1280x840x1688mm

    1257x920x1640mm

    Packing Size

    1290x970x1920mm

    1390x1060x1940mm

    1450x1170x1900

    Net Weight

    380Kg

    450Kg

    600Kg

    L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

    **Magnification is approximate value, it is related to the dimension of monitor and resolution.

    Field of view(mm) = (diagonal*Horizontal*Vertical)

    0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.

    0.1um imported linear scale is optional available.


    Item Code for MVA Series


    Sensor System

    A2.5D )

    Optical Zoom lens

    B3D )

    Zoom lens & MCP Touch Probe

    C2.5D )

    Optical Zoom lens

    & Laser scanning Probe

    D3D )

    Zoom Lens, Scanning and Touch probe

    Item Code

    MVA-322A

    MVA-432A

    MVA-542A

    MVA-322B

    MVA-432B

    MVA-542B

    MVA-322C

    MVA-432C

    MVA-542C

    MVA-322D

    MVA-432D

    MVA-542D

    Software

    iMeasuring 4.1

    iMeasuring 4.2

    iMeasuring 5.0

    iMeasuring 5.1

    MVA Series can be customized according to customers’ application requirements. Motorized coaxial zoom lens is optional for improving 2.5D measurement efficiency; MCP probe is optional for measuring geometric dimensions, while laser sensor module is selected to perform accurate measurement of glass, transparent plastic and other materials.
