A professional manufacturer of measuring & testing equipment.

portable brinell hardness manufacturer for nonferrous metals 1
portable brinell hardness manufacturer for nonferrous metals 2
portable brinell hardness manufacturer for nonferrous metals 1
portable brinell hardness manufacturer for nonferrous metals 2

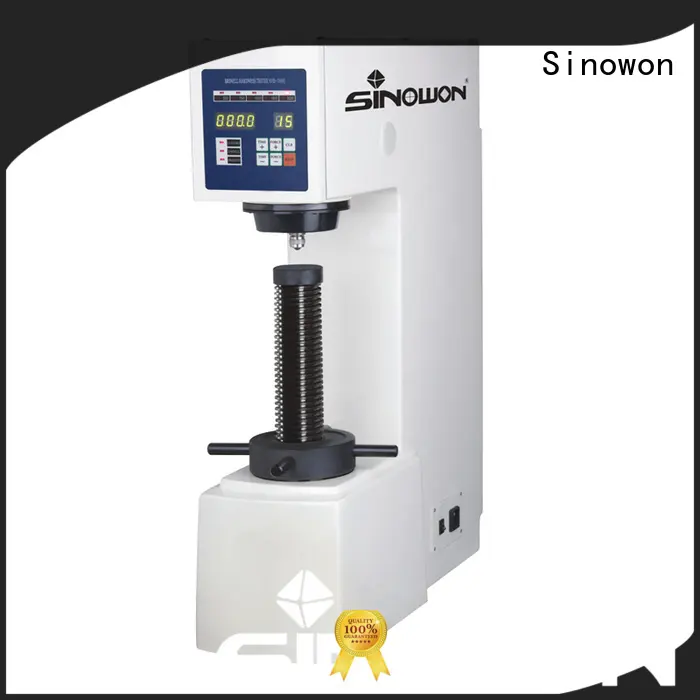

portable brinell hardness manufacturer for nonferrous metals

Model:
SHB-3000E
Code#:
831-111
Accuracy:
≤±3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231
Certificate:
CE
Inquiry
Company Advantages
1. Sinowon the brinell hardness test is designed by adopting the concept of space-saving without compromising on function or style. Meanwhile, it meets the requirement of international aesthetical standard in the sanitary ware industry. The product is well known for high accuracy and great stability
2. The product is a great helper for people to cleanse, protect and change the appearance of external parts of faces. It is aimed at more than 60 countries and regions for exports
3. The product is weather resistant. Its materials have been tested by applying ultraviolet rays and water in order to generate conditions close to the natural environment. Many international famous manufacturers choose this product for its premium quality

portable brinell hardness manufacturer for nonferrous metals 3



Product Feature


 SHB-3000E adopts the load cell to replace the traditional weight, this innovative design makes the instrument more accurate;

 SHB-3000E selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading;

 SHB-3000E uses 20x Brinell measuring microscope to measure the diameter of indentation, then the operator traces the Brinell hardness table to get the testing result.



Specification



Name

Electronic Brinell Hardness Tester

Model

SHB-3000E

Code#

831-111

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range(8-450) HBS,(8-650) HBW
Hardness DisplayCheck the Table of Brinell Hardness Scale
Magnification of Microscope

Analogue 20x Microscope

Vertical Space

225mm

Horizontal Space

135mm

Dimension

893 x720 x747mm

Gross/Net Weight

160Kg/130Kg

Power Supply

AC220V/50Hz;110V/60Hz

Conform Standard

ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%





Company Features
1. Sinowon is more sophisticated than other companies.
2. It is important to regard brinell hardness as the focus of Sinowon. Get quote!
